Price
|
Click for larger
|
Description
|
Retail
Price
|

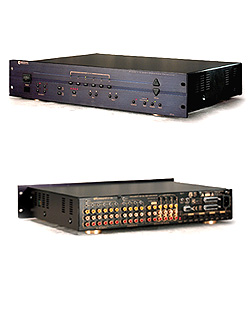

PR-4Zi
Four Zone, Six Source Audio/Video
Pre amplifier
$ Discontinued
New
Models!!
|
|
- Frequency Response: 20 - 20
kHz (0.1 dB max)
- Total Harmonic Distortion:
<0.06% max
- Signal To Noise Ratio: 95
dB min, "A" weighted
- 3 stereo audio inputs
- 3 stereo audio/video inputs
- 4 stereo audio/video preamp
outputs with: 40 step stereo volume control (0 dB - 80 dB) 12 step treble
control (± 12 dB) 12 step bass control (± 12 dB) loudness control
- Video switching between three
sources
- Expansion port allows cascading
of up to four units
- 12lbs (5.5kg)
- 17"W x 12"D x 3"H
- Full function PR-4Z Keypad
with or without IR receiver Add-On LRN Learning Keypad PR-4Z Programming
Remote Control PR-4Z PG Paging Keypad PTM-1 600 Ohm Paging Interface DIM-1
Doorbell Mute Interface
- PR-4Zi K1: Kit that includes the following
- 1 - PR4Zi 4 ZOne AV pre-amp
with 6 AV inputs
- 4 -PCK-IR Pre-amp control
keypad with IR receiver
- 4 - DSC Direct source control
keypad . IR learning
- 1 - DPA-4.8 4 Zone 8 Channel
Amplifier
- 1 - 857 IR Learning Connecting
Block
- 6 - 845.1 IR Emitters
- 1 - IR link cable
- 1 - PRC-1 Preprogrammed and
learning remote control
- 4 - SWP-2 Dual gang screwless
Decora cover plates
- Keypads Click Here
|
$ |
|
CA4.4iK
Four Zone, Four Source
Central Controller/Amplifier
US$ Discontinued
New
Models!!
|
|
- Frequency Response: 20 Hz
to 20 KHz (+/- 1dB)
- Power 20 Watts RMS / Channel
@ 8 Ohms
- Total Harmonic Distortion:
.1%
- Signal to Noise Ratio: 89
dB min, "A" weighted
- Power Supply: 110/220v with
High Current Toroidal ETL Listed (UL/CSA)
- Fully Functional Keypad with
IR Receiver Centered at 40 KHz
- 15lbs
- Keypad Weight: 1lbs ) Unit
Dimensions: 17"W x 9 3/8"D x 3 1/8"H
- Keypad Dimensions: 1 15/16"W
x 2 5/8"D x 2 5/8"H
- Includes 4 standard keypads
- Available with LCD
Keypads (CA4.4iL)
|
$ |
|

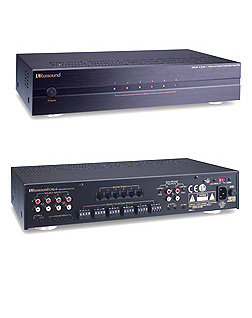

CA 6.4iK (iL)
Six Zone, Four Source Central
Controller/Amplifier
US$ Discontinued
New
Models!!
|
|
- 6 individual stereo preamplifiers
/ amplifiers operating 6 rooms (zones) independently 4 audio source inputs
for connecting your CD, TAPE, TUNER, AUX or use provided labels to choose
customize music genres and equipment choices simple operation from an easy
to use keypad controller operate your equipment from any keypad using your
source remote visual conformation of the IR signal on the keypad zone on /
off indicators on the front panel
- 12 channels of High Current
amplification @ 20 Watts RMS / channel, 8 ohms expansion to 12 zones (2 CA6.4's)
via IR link
- Frequency Response: 20 Hz
to 20 KHz (+/- 1dB) 20 Watts RMS / Channel @ 8 Ohms
- Total Harmonic Distortion:
.1%
- Signal to Noise Ratio: 89
dB min, "A" weighted
- High Current Toroidal ETL
Listed (UL/CSA)
- Fully Functional Keypad with
IR Receiver Centered at 40 KHz
- 15lbs
- 17"W x 9 3/8"D x 3 1/8"H
- Keypad Weight: 1lbs
- Keypad Dimensions: 1 15/16"W
x 2 5/8"D x 2 5/8"H
- Includes 4 standard keypads
- Available with LCD
Keypads (CA6.4iL)
|
$ |
Russound Multi Zone Amps and
Controllers
