BGD1
iBridge Apple Ipod MultiRoom
Integration Dock
US $Call
|
|
- Description
- The iBridge Dock makes it
possible to enjoy the music on your iPod through any multiroom audio-video
system. When connected to a Russound RNET® multiroom system, your iPod
becomes a Smart Source for the entire household. An iPod can be controlled
from any keypad or touchscreen in your system. Dock it and your music is available
in any zone of your house.
- Combining the iPod with
the power of RNET is a merger of form and function. Use a Russound Smart
Touchscreen for total access of your iPod’s music at your fingertips. Select
music by playlist, genre, artist, album or song title and metadata for your
selection appears on UNO keypads and touchscreens as your music plays.
- Russound’s iBridge Dock
bridges the gap between portable music players and multiroom audio
- The iBridge Dock is currently
available as the BGK1 kit, which includes an RNET A/V Decoder for use at the
system end, patch cables, and power supplies for both units. iPod is a trademark
of Apple Computer, Inc, registered in the US and other countries.
- Features
- Complete iPod control Allows
full control of the iPod from an RNET® or IR-controlled multiroom system
- Metadata to user interfaces
Select music by playlist, genre, album, artist and song; see what’s playing
on UNO keypads and touchscreens
- Remote installations supported
iPod can be located anywhere in the house up to 300 feet (90 m) away with
included RNET A/V Decoder
- CAT-5 transport Transmits
full RNET data or IR and stereo audio on one CAT-5 cable iPod charging station
Battery charges iPod while it is docked
- Includes iPod adapters Compatible
with most iPod models
- Specifications
- Switch 8-position source/function
selector
- RNET A/V connector 8-pole
modular RJ-45
- OS update port connector
4-pole jack for Programming Cable,Russound part #2500-521065
- Power requirement 12 VDC
1 A (power supply included)
- Finish White
- Dimensions 4.72" W x 1.0"
H x 2.5" D(12.0 x 2.5 x 6.4 cm)
- Weight 5.4 oz (153 g)
- BGK1 Kit includes
- iBridge Dock
- Set of 5 iPod adapters
- RNET A/V Decoder*
- Stereo RCA patch cable
- RJ-45 patch cable
- (2) Power supplies
- *Required for connection
to multiroom system
|
$ |

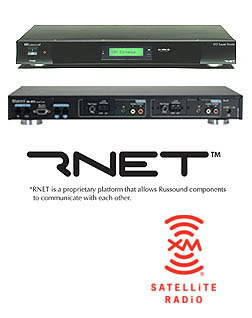

ST2 Tuner
Dual AM/FM Tuner
US $Call
ST2-XM
1-AM/FM 1 XM Radio
US $Call
ST2-XM2
Dual XM Radio Tuners
US $Call
ST2S
1-AM/FM / 1-Sirius Tuner
US $Call
|
|
- Specifications
Dimensions: 1.75” H x 17”
W x 8” D (43 x 20.3 x 4.4 cm)
Frequency Range: AM 522
– 1620kHz (100 or 200khz steps selectable) FM 87.5 – 108.0MHz (10kHz steps)
Frequency Response: 30Hz
– 15kHz, +/- 1.5dB
Sensitivity: AM 55dBu FM
12dBu
Power Requirements: 90
– 240 Volts external universal 12Vdc power supply
Features
Dual Tuners – (1) AM/FM
Module, (1) XM Module
6 groups of 6 presets per
Tuner (72 total presets)
Custom preset and group
name
Easy to use in a wide variety
of single or multi-room systems
Compact – rack mountable,
only one unit high
Can be used with optional
Russound ST2-KP keypad for scrolling display of station, frequency and preset
names
IR Remote control included
XM Specific
Over 100 channels
Music, news, talk, sports
and traffic
Digital quality sound
Coast-to-coast coverage

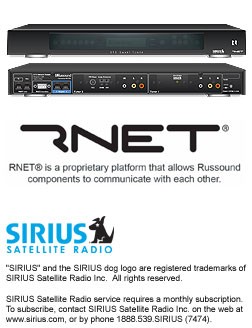

The ST2S offers SIRIUS
Satellite Radio and AM/FM
tuners in a newly designed
single-rack-unit high chassis.
One of the first multiroom
source components to offer SIRIUS Satellite Radio, Russound?s ST2S makes it
easy to enjoy the diversity of satellite radio. The more than 120 channels
of entertainment include 65 channels of commercial-free music, sports, news
and talk radio. SIRIUS has programming not found elsewhere giving the user
a unique channel line up.
|
$ |

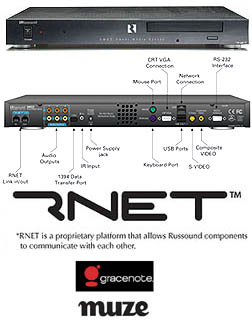

SMS3-160
Music Server with 160GB HDD
US $Call
SMS3-250
Smart Media Server with 250GB
HDD
US $Call
|
|
- Specifications:
File Formats
Supports MP3, Ogg Vorbis,
WAV music and JPEG image formats
Storage: Up to 2650 hours
compressed or 240 hours uncompressed music
160 GB HDD with 3 Zone
Outs
250GB Model Now Shipping 5/12/05
Audio Specifications
Frequency Response: 20Hz
to 20,000Hz (+/- 0.5dB)
Signal to Noise Ratio:
> 96dB
Total Harmonic Distortion:
< 0.05%
Video Specifications
Output Formats: Composite,
S-video and VGA
Communications
RNET link
Front panel IR receiver,
rear panel IR jack
Ethernet LAN port
RS-232 control port
Power Requirements
External power supply
Universal input 100 – 240
VAC, 50-60Hz with 12VDC 6A output
Physical Specifications
Dimensions: 17” W x 1.75”H
x 12.9”D (430 x 44 x 343mm)
Weight: 12.02 lbs. Net
(5.4kg)
Approvals
CE, TUV and FCC
Standard Accessories
SMS3-RC IR remote control
1 – RCA composite video
cable
3 – Stereo audio cables
When used with the Russound
CAV/UNO-S2 multi-room system, artists, song titles and themes can be viewed
from any room.
Features:
Convenient- instant access
to three independent music streams
Simple to use- CD-ROM drive
archives new CDs as you play them
Intelligent- categorizes
music by artist, genre, etc., and learns preferences
Compatible- RNET integrates
seamlessly with Russound multi-room audio systems
Complete- supports Ethernet
LAN, USB 2.0/1.1, and RS232
Keypads Click Here
|
$ |
CAV6.6-S2
Six Zone, Six Source Central
Controller/Amplifier Kit
US $Call
|
|
- Announcing the industry’s
most comprehensive single chassis solution. The new CAV6.6 Audio/Video Controller/Amplifier
from Russound breaks all of the rules. The CAV6.6 distributes six Audio/Video
sources up to six listening zones simultaneously and up to 4 A-BUS* sub-zones
too. The CAV6.6 is loaded with additional features such as:
- • paging and doorbell support
- • serial computer programming
- • advanced built in IR learning
- • pre-programmed library
of IR codes
- Dramatically reduce your
installation time. Program the controller, not the keypads!
- *A-BUS - Amplified Keypad
(Model# A-KP2)
- Power: 20WRMS / Ch @ 8 ohms
x 12 channels
- Frequency Response: 20 Hz
to 20 KHz ( +/- 1 dB )
- Total Harmonic Distortion:
.01%/font>
- Signal to Noise Ratio: 89
dB min, "A" weighted
- Power Supply: 110/220V High
Current Toroidal
- Approvals: ETL listed. Conforms
to UL Standard UL1492 and CSA Standard C22-2 No. 1-M94 and CE
- Dimensions: 17"W x 12"D
x 3.5"H
- Weight: 18lb
CAV6.6-S2 Kit includes 6 of the New Uno-S2 keypads, 4 IR emitters, Punchdown
tool, and remote control
Keypads Click Here
|
$ |

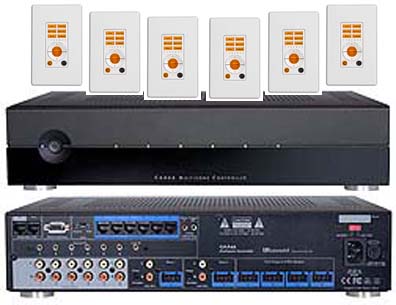

CAM6.6-S1
Six Zone, Six Source Central
Controller/Amplifier with 6 S1 Keypads
US $Call
CAM6.6X-S1/S2
Six Zone, Six Source Central
Controller/Amplifier with XM Tuner Built In
US $Call
CAM6.6T-S1
Six Zone, Six Source Central
Controller/Amplifier with AM/FM Tuner
US $Call
|
|
Features
Trouble-free installation-
Plug and Play compatibility. No PC required
Simple to use- attractive
UNO smart keypads with LCD display
Expandable- easy to add
more zones via Link In/Out feature
Compatible- built-in IR
code library controls virtually any a/v component
AM/FM Tuner
Antenna Impedance: AM:
300 ohm balanced
Impedance: FM: 75 ohm unbalanced
Sensitivity @ S/N: AM:
20 dB 55dBu - FM: 30 dB 6dB max. 12dBu
Image Rejection: AM: 33
dB - FM: 80 dB
S/N Ratio: AM: 45 dB -
FM: 60 dB
XM Satellite Tuner
XM Band: 2332.5 - 2345
MHz
XM Antenna: 50 ohm SMB
Connection
Amplifier
Frequency Response: 20
Hz-20 KHz +/- 0.5 dB
Watts per channel: 20 Watts
RMS x 12 into 8 ohms
Total Harmonic Distortion:
0.05%
Signal to Noise Ratio:
88 dB
Audio Source Inputs: 6
(Including Internal Tuner)
Audio Zone Outputs: 6 Speaker
Level - (2 Line Level)
Max Source Audio Input:
5V Peak to Peak, 10k ohms
Zone Variable Line Audio
Output: 5.6V Peak to Peak, 4 ohms @ 1 KHz
Zone Fixed Line Audio Output:
5.6V Peak to Peak, 4 ohms @ 1 KHz
Trigger Outputs: 1 Common,
12VDC 100mA each
Trigger Inputs: 1 Home
Theater
Frequency Range: AM 530
- 1710 KHz - FM 87.7 - 107.9 MHz
Physical
Dimensions: 17"W x 12"D
x 3.5"H
Weight: 18 lbs
Power Supply: 110 or 240
VAC
Fuse Rating: 110V input;
F3A H 250V US and Canada - 240V
Input; T1.25A H 250V Europe
CAM6.6T-S1 Kit Includes 6- Uno-S1 Keypads, Uno-LRC1
Remote, 6 emitters and a punch down tool
CAM6.6X-S1/S2Kit Includes 5- Uno-S1 Keypads, 1- Ono-S2
Keypad, Uno-LRC1 Remote, 6 emitters and a punch down tool
Keypads Click Here
|
$ |

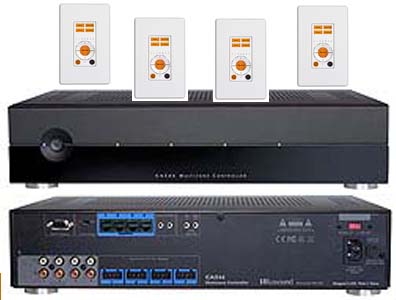

CAS44K
Four Zone, Four Source Central
Controller/Amplifier Kit
US $Call

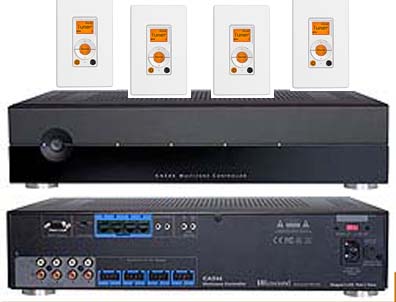

CAS44L
Four Zone, Four Source Central
Controller/Amplifier Kit with LCD Keypads
US $Call
|
|
- Description
Russound® announces
the expansion of its controller-amplifier product offerings. For genuine ease,
CAS44 includes features not typically found in competitive models at this
price point.
Two elegantly designed
keypad options are available for one-touch control of home audio components.
The KP4 includes 20 labels for personalizing sources, and the KPL offers a
LCD panel making multiroom audio control simple and enjoyable. The five-character
display shows source name and volume level.
Control the bass, treble,
balance, loudness and volume from any keypad in the home. The user can see
the audio settings on the KPL display as they are adjusted for ease of use.
Russound has system kits
that include all the necessary components for a CAS44 system. For additional
cost savings, the kits include a CAS44 controller-amplifier, four keypads
(KP4 or KPL), a CAS-RC and two 1545.1 dual emitters. For ease of installation,
the controller can be rack mounted (with the provided rack ears). Keypads
are available in five different colors and fit perfectly in any Decora®
plate.
The new CAS44 offers exceptional
value, straightforward operation and adjustable playback for multiroom audio
made easy.
- Features
- Full-featured four-source/four-zone
controller, 40 watts per zone, and rack mountable for flexibility and convenience
- Expandable daisy-chain
two controllers* for eight zones and three keypads per zone** for larger home
installations
- Adjustable bass, treble,
balance, loudness and “all off” for total control from keypads
- Versatile includes
RS232 port for integration with home automation systems in today’s smart homes
- Distinctive newly
designed controller and keypads, available in five Decora colors, for an
elegant and practical solution
- *Not compatible with CAA66
or any RNET controllers.
- **Requires SA-ZX3 Keypad
Splitter, not included in the kit.
- Specifications
-
- Dimensions: 17"W x 11.5"D
x 3.9"H (43 x 29.2 x 10 cm)
- Weight: 17 lbs. 6.5 oz.
(7.9 kg)
- Power Supply: VAC 100-120
@3A or 220-240V @1.25A 50-60Hz
- Fuse Rating: 110V input;
F3.0A H 250V US and Canada 240V input; TF1.25A H 250V Europe
- Frequency Response: 20Hz-20kHz
+0/-2.5dB
- Watts per channel: 20W RMS
into 8 ohms
- Total Harmonic Distortion:
<0.10%
- Signal to Noise Ratio: >90.0
dB A-weighted / >88 dB unweighted
- Audio Source Inputs: 4
- Audio Zone Outputs: 4 speaker
level (8 ohms)
- Input Impedance: 50 kohms
- Max Source Audio Input:
2.2 Vrms
- Trigger Output: 12VDC 100mA
Max
- Trigger Input: 12VDC
- Keypads Click Here
|
$1499.95
$1999.95 |
CAA66K
Six Zone, Six Source Central
Controller/Amplifier
US $Call
CAA66L
Six Zone, Six Source Central
Controller/Amplifier with LCD Keypads
US $Call
|
|
Description
Russound is proud
to announce a new original to our multiroom product offerings. The new CAA66
system includes features not typically found at this price point. Simplified
programming, audio playback adjustments and expandability make the CAA66 the
only choice for affordable excellence in multiroom audio.
Three elegantly designed
keypad options are available for control of your home audio. The KP6 includes
20 labels for personalizing source components, and the KPL has an LCD panel
that makes enjoying multiroom audio easier. Adjust the bass, treble, and
balance from the KP6 and KPL keypads. Combine either with the KPSC keypad
for source control with no additional programming required.
Extensive IR device codes
and learning capabilities are built into the CAA66, making remote and keypad
control of the system as simple as pressing a key. Each zone of the CAA66
supports up to three keypads with the SA-ZX3 Keypad Splitter.
Russound has system kits
that include all the necessary components for a CAA66 system. For additional
cost savings, the kits include a CAA66 Controller-Amplifier, six keypads
(KP6 or KPL), an SRC1 remote and six 845.1 emitters. For ease of installation,
the controller can be rack mounted (with the provided rack ears). Keypads
are available in five different colors, and fit perfectly in any Decora®
plate.
For homeowners who want
to extend the benefits of their Apple® iPod®, Russound makes it easy
to connect an iPod to the CAA66 for sharing and enjoying music collections
throughout the home.
The new CAA66 offers exceptional
value, straightforward operation and simplified programming for multiroom
audio made easy.
- Features
-
- Full-featured—Six sources,
six zones, internal IR library, RS-232, and switchable preamp outputs for
flexibility and convenience
- Adjustable—Bass, treble,
balance, loudness and “all off” for total control from keypads
- Programming ease—Program
the controller and all zones are ready for use, saving time
- Expandable—Linkable up to
36 zones to accommodate any size home
- Distinctive—New two-unit-high
rack-mountable controller design for elegant and practical solution
- Specifications
- Zones per controller: 6
- Zones per system: 36 maximum
- Audio source inputs: 6
- Input impedance: 50 kilohms
- Amplifier channels: 12
- Power output: 20 W RMS into
8 ohms
- Frequency response:
20 Hz to 20 kHz +0/-2.5 dB
- Distortion:
<0.10% THD+N from 20 Hz to 20 kHz
- Signal-to-noise ratio:
>90 dB A-weighted, >88 dB unweighted
- Speaker impedance: 8 ohms
- Audio line outputs: Switchable
fixed/ variable (zones 1 and 2 only), 2.2 Vrms
- Trigger output: 12 VDC 100
mA max
- Mute trigger input: 12VDC
- Dimensions: 17" W x 3.9"
H x 11.5" D (43 x 9.9 x 29.2 cm)
- Power rating: 100–120 VAC
3 A or 220–240 VAC 1.25 A, 50–60Hz
- Fuse rating: F3.0A H 250V
USA/Canada TF1.25A H 250V Europe
- Weight: 17 lb 12.5 oz (8.1
kg)
- Keypads Click Here
|
$2099.95
$2599.95 |
Russound Multi Zone Amps and
Controllers
