LightAV.com
Price
|
Click for larger
|
Description
|
Retail
Price
|

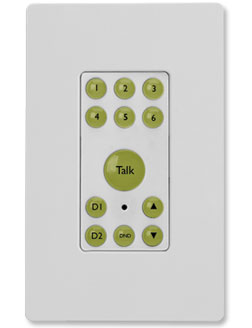

ISK1
ComPoint Basic Keypad
US $Call
|
|
- Simple and intuitive design
and layout
- Backlit LCD display and buttons
with selectable color green or amber
- Custom display provides vital
system feedback
- Custom source labels (up
to 12 characters)
- IR remote control sensor
with IR pass-through
- UNO-LRC1 pre-programmed/learning
companion remote available
- Optional IR receiver input
for additional IR receivers in the room
- Elegant design available
in White, Almond, Bone, Brown and Black
- Connects via CAT-5 cable
and a 110 punch down connector
- 12VDC 180mA operation
- 110 punch down accepts CAT-5
cable
- Decora®
|
$ |
ISK2
ComPoint Advanced Keypad
US $Call
|
|
- Simple and intuitive design
and layout
- Backlit LCD display and buttons
with selectable color green or amber
- Custom display provides vital
system feedback
- Custom source labels (up
to 12 characters)
- IR remote control sensor
with IR pass-through
- UNO-LRC1 pre-programmed/learning
companion remote available
- Optional IR receiver input
for additional IR receivers in the room
- Elegant design available
in White, Almond, Bone, Brown and Black
- Connects via CAT-5 cable
and a 110 punch down connector
- 12VDC 180mA operation
- 110 punch down accepts CAT-5
cable
- Decora®
|
$ |

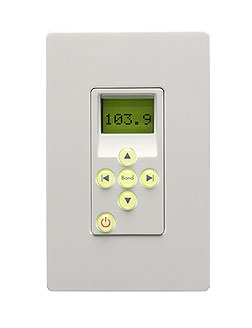

ST2-KP
Smart Tuner Keypad
US $Call
|
|
- Controls the ST2 Smart Dual
Tuner
- Scrolling display shows station
frequency and custom preset names
- Channel, artist and title
information shown when used with optional XM Satellite Radio module
- Mounts into a single gang
J-box
- 110 Punchdown connectors
for CAT-5 wire connection
- Powered by the ST2 Smart
Dual Tuner, no external power supply needed
- Decora® wallplate not
included
- Power Requirements: 12 VDC
150mA
- CAT-5 Connection: 110 Punchdown
|
$199 |

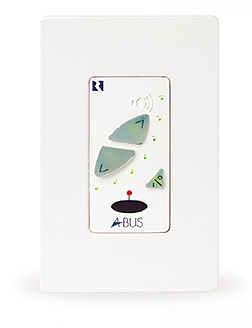

A-KP2
A-BUS Amplified KeyPad
US $Call
|
|
- Power On/Off button
- Volume Up/Down buttons
- Built-in IR receiver
- IR control of volume and
on/off via optional A-KP RC remote
- IR control of source components
- LED IR confirmation and source
component status
- Individual volume adjustment
for setting maximum level and L/R balance
- Line Out for connecting to
external amp or powered subwoofer
- Decora® faceplate (not
included)
- Power Rating: 7.5 WRMS /
Channel @ 8 Ohm
- T.H.D.: 1% @ 8 Ohm
- Input Impedance: 28k Ohm
min., line input
- Power Requirements: +24VDC,
750mA
- Status Input Min. Requirement:
+12VDC, 20mA
- CAT-5 Connection: 110 Punch
down
|
$ |

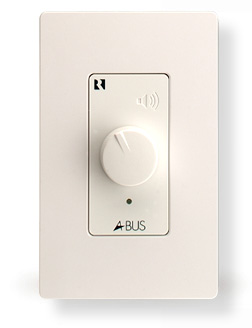

A-VC2
A-BUS Amplified Volume Control
US $Call
|
|
- LED indicator and source
component on/off status
- Manual Smooth Volume Control
- Manual On/Off
- Individual adjustment for
setting maximum level and L/R balance
- Line Out for connecting to
external amp or powered subwoofer
- Decora® faceplate
- 110 punchdown for CAT-5 A-BUS
input
- Screw down terminals for
speaker and line outputd.
- Power Rating: 7.5 WRMS /
Channel @ 8 Ohm
- T.H.D.: 1% @ 8 Ohm
- Input Impedance: 28k Ohm
min., line input
- Power Requirements: +24VDC,
750mA
- Status Input Min. Requirement:
+12VDC, 20mA
- Screw-down terminals: CAT
5 Color coded
- Connections: 110 punchdown
for A-BUS input-screw down terminals for speaker and line output
|
$ |
KP4
CAS44 multiroom system
basic keypad
US $Call
|
|
- Russound’s KP4 basic keypad
provides the user with simple operation for their CAS44 multiroom system.
20 source labels are included to easily label each system source, from a
CD player to an iPod®. Users can adjust the bass, treble, balance, loudness
and volume directly from each keypad, to personalize the sound quality for
their zone. For convenience, an “all off” feature is included.
- Features
- Adjustable bass, treble,
balance, loudness and “all off” for total control
- Responsive easy to use buttons
and visual feedback for simple multiroom accessibility Installer-friendly
fits neatly in a single-gang workbox, no cutting sheetrock to fit
- Convenient 20 source labels
for system personalization
- Distinctive sophisticated
design in five Decora® colors for an elegant solution
- Specifications
- Dimensions: 1.85"W x 2.7"D
x 1.47"H (4.7 x 6.9 x 3.7 cm)
- Fits 1 Gang UL/CSA Approved
18 ci Junction Box
- Weight: 4.0 oz. (113 g)
- Power Requirements: 12 VDC
180mA
- CAT-5 Connection: 110 punchdown
|
$149.95 |

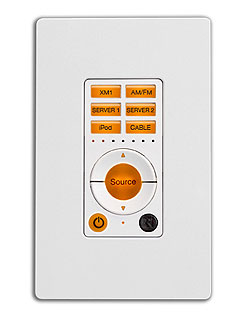

KP6
CAA66, CAV and CAM Basic Keypad
US $Call
|
|
- Russound’s KP6 basic keypad
provides the user with simple operation for their CAA66 multiroom system.
20 source labels are included to easily label each system source, from a
CD player to an iPod®. Users can adjust the bass, treble, balance, loudness
and volume directly from each keypad, to personalize the sound quality for
their zone. For convenience, an “all off” feature is included.
- Features Compatible works
with CAA66, CAV and CAM controller amplifiers for versatility
- Adjustable bass, treble,
balance, loudness and “all off” for total control
- Responsive functional buttons
and visual feedback for simple multiroom accessibility
- Convenient 20 source labels
for system personalization
- Distinctive sophisticated
design in five Decora® colors for an elegant solution
- Specifications
- Dimensions: 1.85"W x 2.7"D
x 1.47"H (4.7 x 6.9 x 3.7 cm)
- Fits 1 Gang UL/CSA Approved
18 ci Junction Box
- Weight: 4.0 oz. (113 g)
- Power Requirements: 12 VDC
180mA
- CAT-5 Connection: 110 punchdown
|
$149.95 |
KPL
CAA66 and CAS44 LCD Keypad
US $Call
|
|
- The KPL Keypad can be used
with a CAS44 or CAA66 Controller Amplifier. It’s five-character LCD display
aids in selecting sources and includes over 100 source labels to choose from.
Easily adjust the bass, treble, balance, loudness and volume directly from
the keypads for personalizing sound playback from any zone. For convenience,
an “all off” command is available from each keypad.
- Features
- Informative shows source
playing, bass, treble, balance, and volume levels for adjustability
- Compatible works with CAA66
and CAS44 controller amplifiers for more options
- Responsive easy to use buttons
and visual feedback for simple multiroom control
- Convenient includes programmable
source names for personalizing system
- Distinctive new sophisticated
design for keypads, available in five Decora® colors
- Specifications
- Dimensions: 1.85"W x 2.7"D
x 1.47"H (4.7 x 6.9 x 3.7 cm)
- Fits 1 Gang UL/CSA Approved
18 ci Junction Box
- Weight: 4.0 oz. (113 g)
- Power Requirements: 12 VDC
180mA
- CAT-5 Connection: 110 punchdown
|
$299.95 |
KPSC
Dual Gang CAA66 Multiroom
System Add-On Source Control Keypad
US $Call
|
|
- Russounds KPSC keypad is the
perfect optional add-on keypad for a CAA66 multiroom system. It adds direct
numeric selection and additional functionality, such as, play, pause, track
up and down. The KPSC can be linked with a KP6 or KPL keypad and fits neatly
in a dual gang plate
- Features
- Convenient direct function
control without extra programming
- Compatible use with KP6 or
KPL keypads for enhanced control of sources
- Ergonomic unique button design
for simplicity
- Cost effective added features
at an affordable price
- Distinctive sophisticated
design in five Decora® colors for an elegant solution
- *KPSC is not compatible with
CAS44 controller amplifier
- Specifications
- Dimensions: 1.85"W x 2.7"D
x 1"H (4.7 x 6.9 x 2.5 cm)
- Fits 1 Gang UL/CSA Approved
18 ci Junction Box
- Weight: 3 oz. (85 g)
- KP Keypad Port: 12-pin connector
|
$89.95 |
Russound Keypad Controllers
<
>
