Model Number
|
Product Shot
Click for Larger
|
Description
|
Grill-10
Grill-12
Grill-15
US $Call
1-15" Left $20
11/12/2007
|
|
- Chrome Plated Cast Aluminum
- Allows for a 3" Excursion
|
XStream
Subwoofers
XS-10
XS-12
US $Discontinued
|
|
Stainless
Steel Stamped Basket
UDV Cooling Technology
Blue Zirconium Cone
Black Progressive Roll Spider
EVA Rubber gasket
Dual 4 Ohm Voice Coils
Vented and Extended Pole
Piece
Low Carbon Top and Bottom
Plate
Rubber Magnet Cover
- 10"
- Frequency Response 25 Hz-2
KHz
- 40 Oz. Magnet
- FS 31Hz
- 2" Voice Coil
- Sensitivity 87 dB
- .2" XMAX
- 250 Watts RMS
- Mounting Depth 5"
- Recommended Enclosure .8
Cu Ft Sealed
-
- 12"
- Frequency Response 24 Hz-1.7
KHz
- 40 Oz. Magnet
- FS 25Hz
- 2" Voice Coil
- Sensitivity 89 dB
- .2" XMAX
- 250 Watts RMS
- Mounting Depth 5.5"
- Recommended Enclosure 1.0
Cu Ft Sealed
|
Edge II
Subwoofers
EG-10X
EG-12X
EG-15X
US $Discontinued
|
|
Stainless
Steel Stamped Basket
UDV Cooling Technology
Low Resonance Woven Carbon
Fiber Cone
Black Progressive Roll Spider
C-Lock Rubber gasket
Hi-Arc High Excursion Surround
Dual 4 Ohm Voice Coils
Woven Tensel Leads
Vented and Extended Pole
Piece
Low Carbon Top and Bottom
Plate
Rubber Magnet Cover
- 10"
- Frequency Response 25 Hz-1.2
KHz
- 50 Oz. Magnet
- 2.0" Voice Coil
- FS 36 Hz
- Sensitivity 87 dB
- XMAX .413"
- 300 Watts RMS
- Mounting Depth 5"
- Recommended enclosure .5-.75
CuFt
-
- 12"
- Frequency Response 25 Hz-1.1
KHz
- 50 Oz. Magnet
- 2.0" Voice Coil
- FS 33 Hz
- Sensitivity 89 dB
- XMAX .413"
- 350 Watts RMS
- Mounting Depth 5"
- Recommended enclosure 1.25-3.0
CuFt
- 15"
- Frequency Response 25 Hz-1.2
KHz
- 60 Oz. Magnet
- 2.5" Voice Coil
- FS 30 Hz
- Sensitivity 91 dB
- XMAX .413"
- 400 Watts RMS
- Mounting Depth 7"
- Recommended enclosure 2.0-3.5
CuFt
|

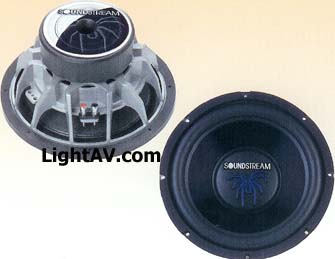

Edge Pro
Subwoofers
EPRO-10
EPRO-12
US $Discontinued
|
|
Proprietary
Cast aluminum basket
Dual 2-Layer, 4 Ohm Voice
Coils
High Efficiency, Butyl Rubber
Surround
CNC Chrome Back-plate
UDV Cooling Technology
Vented and Extended Pole
Piece
Progressive Roll CONEX Spider
Ferrite Magnet Structure
Woven Tensil Leadds
Gold Plated Binding Posts
BAEISV Hybrid Voice Coil
Former
Rubber magnet cover
- 10"
- Frequency Response 25 Hz-2
KHz
- 80 Oz. Magnet
- 2.5" Voice Coil
- Sensitivity 88 dB
- 400 Watts RMS
- Recommended Enclosure Sealed/Ported
- 12"
- Frequency Response 24 Hz-1.7
KHz
- 80 Oz. Magnet
- 2.5" Voice Coil
- Sensitivity 89 dB
- 500 Watts RMS
- Recommended Enclosure Sealed/Ported
|
Tarantula
Subwoofers
T4-10
T4-12
T4-15
New 2006 Models
|
|
Cast aluminum
basket
Stone Gray finish w/ Diamond
cut edge
Cloth laminated paper cone
w/MD6 coating
Hi-Arc, High Excursion Surround
Chrome Plated Back plate
Low carbon top & pole
piece
1-piece rubber gasket
Triple Stacked Magnet Structure
Black Progressive Roll CONEX
spider
Woven tinsel leads
Vented & extended pole
piece
Gold binding posts
Dual 4 Layer 1 ohm voice
coil
BAEISV hybrid voice coil
former
Rubber magnet cover
Wood packing crate w/chrome
hardware
- Tarantula 10"
- Frequency Response 28 Hz-1.8
KHz
- 160 Oz. Magnet
- 3" Voice Coil
- Sensitivity 87 dB
- XMAX .63"
- 800 Watts RMS
- Mounting Depth 5.75"
- Recommended Enclosure 1.7
CuFt Ported
-
- Taratula 12"
- Frequency Response 25 Hz-1.7
KHz
- 200 Oz. Magnet
- 3" Voice Coil
- Sensitivity 89 dB
- XMAX .63"
- 900 Watts RMS
- Mounting Depth 6.1"
- Recommended Enclosure 2.2
CuFt Ported
- Tarantula 15"
- Frequency Response 20 Hz-1
KHz
- 250 Oz. Magnet
- 4" Voice Coil
- Sensitivity 91 dB
- XMAX .551"
- 1000 Watts RMS
- Mounting Depth 8.25"
- Recommended Enclosure 4.25
CuFt Ported
|
Van Gogh
Subwoofers
VGW-10
VGW-12
US $Discontinued
|
|
Proprietary
Cast Aluminum Basket
UDV Cooling Technology
Low Distortion Nomex/Honey
Comb Cone
C-Lock Rubber Gasket
XLS Santoprene Surround
Dual 4 Ohm Voice Coil
2.5" TIL Glass Fiber Coil
Former
Woven Tensil Leads
Vented and Extended Pole
Piece
Low Carbon Top and Bottom
Plate
Rubber Magnet Cover
- 10"
- Frequency Response 23 Hz-1.4
KHz
- 100 Oz. Magnet
- 2.5" Voice Coil
- Sensitivity 85 dB
- XMAX .649"
- 500 Watts RMS
- Mounting Depth 5.4"
- Recommended Enclosure .5
Cu Ft Sealed
- 12"
- Frequency Response 22 Hz-1.2
KHz
- 120 Oz. Magnet
- 2.5" Voice Coil
- Sensitivity 87 dB
- XMAX .649"
- 600 Watts RMS
- Mounting Depth 5.4"
- Recommended Enclosure .6-.8
Cu Ft Sealed
|
SPLX
Subwoofers
SPLX-12
SPLX-15
US $Call
New 2006 Models
|
|
Die-Cast
Aluminum Basket
Tough Pulp/Kevlar Cone
Large-roll Dual Density Foam
Surround
Dual Stcked Magnet Structure
Dual 3", 2 Ohm Coils
Aluminum Voice Coil Voice
Coil Former
Extended Back Plate with
Aero-Vent
Stitched Tinsel Leads
Spring Loaded Push Terminals
Rubber Gasket
Rubber Magnet Cover
Can be special ordered in
quad 2 Ohm voice coils
- 12"
- Frequency Response 25 Hz-1.4
KHz
- 192 Oz. Magnet
- 3" Voice Coil
- Sensitivity 98.2 dB
- 0.565" XMAX
- 750 Watts RMS/2000 Peak
- 15"
- Frequency Response 22 Hz-1
KHz
- 192 Oz. Magnet
- 3" Voice Coil
- Sensitivity 99.9 dB
- 0.565" XMAX
- 1200 Watts RMS / 2500 Peak
|
XXX
Subwoofer
XXX-15
US $Call
New 2006 Models
|
|
Die-Cast
Aluminum Basket
4" Flat wound Copper Clad
Aluminum Voice Coil
- 15"
- Frequency Response 21 Hz-983
KHz
- 1150 Oz. Magnet
- 4" Voice Coil
- Sensitivity 89 dB
- 0.565" XMAX
- 8500 Watts RMS
- Recommended for vented enclosures
- *For custom parameters &
Enclosure sizes, call SoundStreams Technical Dept.
- For Authorized woofer serial
numbers ONLY
|
