Model Number
|
Product Shot
Click for Larger
|
Description
|
Retail
Price
|
Grill-10
Grill-12
Grill-15
|
|
- We've listened to you; we
heard you loud & clear and we agree… We are now pleased to offer you,
10 ", 12" and 15" "Spider" grills to enhance your custom installation. These
grills are approximately 3.0" thick, made of chrome plated cast aluminum
and specifically designed to fit all woofers in the 2004 product line-up.
They are useful for adding
beauty, protecting your investment and breaking-up resonant wave Patterns;
thus eliminating the possibility that your music may be degraded due to
unwanted harmonics.
|
$ |
XStream
Subwoofers
XS-10
XS-10/2
XS-12
XS-12/2
|
|
Stainless
Steel Stamped Basket
UDV Cooling Technology
Blue Zirconium Cone
Black Progressive Roll Spider
EVA Rubber gasket
Dual 4 Ohm Voice Coils
Vented and Extended Pole
Piece
Low Carbon Top and Bottom
Plate
Rubber Magnet Cover
- 10"
- Frequency Response 25 Hz-2
KHz
- 40 Oz. Magnet
- FS 31Hz
- 2" Voice Coil
- Sensitivity 87 dB
- .2" XMAX
- 250 Watts RMS
- Mounting Depth 5"
- Recommended Enclosure .8
Cu Ft Sealed
- Available in Dual 2 Ohm
-
- 12"
- Frequency Response 24 Hz-1.7
KHz
- 40 Oz. Magnet
- FS 25Hz
- 2" Voice Coil
- Sensitivity 89 dB
- .2" XMAX
- 250 Watts RMS
- Mounting Depth 5.5"
- Recommended Enclosure 1.0
Cu Ft Sealed
- Available in Dual 2 Ohm
|
$
$ |
Picasso
Subwoofers
PCW-10
PCW-12
PCW-15
|
|
Stainless
Steel Stamped Basket
UDV Cooling Technology
Low Resonance Woven Carbon
Fiber Cone
Black Progressive Roll Spider
C-Lock Rubber gasket
Hi-Arc High Excursion Surround
Dual 4 Ohm Voice Coils
Woven Tensel Leads
Vented and Extended Pole
Piece
Low Carbon Top and Bottom
Plate
Rubber Magnet Cover
- 10"
- Frequency Response 25 Hz-1.2
KHz
- 50 Oz. Magnet
- 2.0" Voice Coil
- FS 36 Hz
- Sensitivity 87 dB
- XMAX .413"
- 300 Watts RMS
- Mounting Depth 5"
- Recommended enclosure .5-.75
CuFt
-
- 12"
- Frequency Response 25 Hz-1.1
KHz
- 50 Oz. Magnet
- 2.0" Voice Coil
- FS 33 Hz
- Sensitivity 89 dB
- XMAX .413"
- 350 Watts RMS
- Mounting Depth 5"
- Recommended enclosure 1.25-3.0
CuFt
- 15"
- Frequency Response 25 Hz-1.2
KHz
- 60 Oz. Magnet
- 2.5" Voice Coil
- FS 30 Hz
- Sensitivity 91 dB
- XMAX .413"
- 400 Watts RMS
- Mounting Depth 7"
- Recommended enclosure 2.0-3.5
CuFt
|
$
$ |
Reference
Subwoofers
RFW-10
RFW-12
|
|
Proprietary
Cast aluminum basket
Dual 2-Layer, 4 Ohm Voice
Coils
Low Distortion Nomex Cone
XLS Santoprene Surround
CNC Chrome Back-plate
C-Lock Rubber Gasket
UDV Cooling Technology
Vented and Extended Pole
Piece
Black Progressive Roll CONEX
Spider
Ferrite Magnet Structure
Woven Tensil Leads
Rubber magnet cover
- 10"
- Frequency Response 23 Hz-
1.4 KHz
- 100 Oz. Magnet
- 2.5" TIL Glass Fiber Voice
Coil Former
- Sensitivity 85 dB
- 500 Watts RMS
- Recommended Enclosure Sealed
.5 Cu Ft
- Mounting Depth 5.4"
-
- 12"
- Frequency Response 22 Hz-1.2
KHz
- 120 Oz. Magnet
- 2.5" TIL Glass Fiber Voice
Coil Former
- Sensitivity 87 dB
- 600 Watts RMS
- Recommended Enclosure Sealed
.6-.8 Cu Ft
- Mounting Depth 5.9"
|
$
$ |
Tarantula
Subwoofers
T4-10
T4-12
T4-15
|
|
Cast aluminum
basket
Stone Gray finish w/ Diamond
cut edge
Cloth laminated paper cone
w/MD6 coating
Hi-Arc, High Excursion Surround
Chrome Plated Back plate
Low carbon top & pole
piece
1-piece rubber gasket
Triple Stacked Magnet Structure
Black Progressive Roll CONEX
spider
Woven tinsel leads
Vented & extended pole
piece
Gold binding posts
Dual 4 Layer 1 ohm voice
coil
BAEISV hybrid voice coil
former
Rubber magnet cover
Wood packing crate w/chrome
hardware
- Tarantula 10"
- Frequency Response 28 Hz-1.8
KHz
- 160 Oz. Magnet
- 3" Voice Coil
- Sensitivity 87 dB
- XMAX .63"
- 800 Watts RMS
- Mounting Depth 5.75"
- Recommended Enclosure 1.7
CuFt Ported
-
- Taratula 12"
- Frequency Response 25 Hz-1.7
KHz
- 200 Oz. Magnet
- 3" Voice Coil
- Sensitivity 89 dB
- XMAX .63"
- 900 Watts RMS
- Mounting Depth 6.1"
- Recommended Enclosure 2.2
CuFt Ported
- Tarantula 15"
- Frequency Response 20 Hz-1
KHz
- 250 Oz. Magnet
- 4" Voice Coil
- Sensitivity 91 dB
- XMAX .551"
- 1000 Watts RMS
- Mounting Depth 8.25"
- Recommended Enclosure 4.25
CuFt Ported
|
$ |

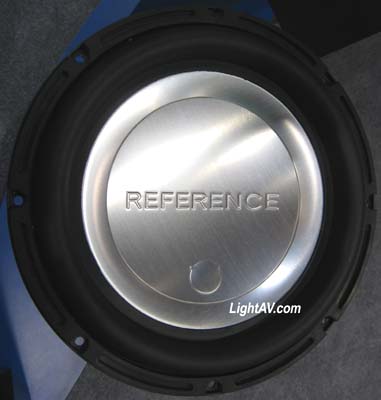

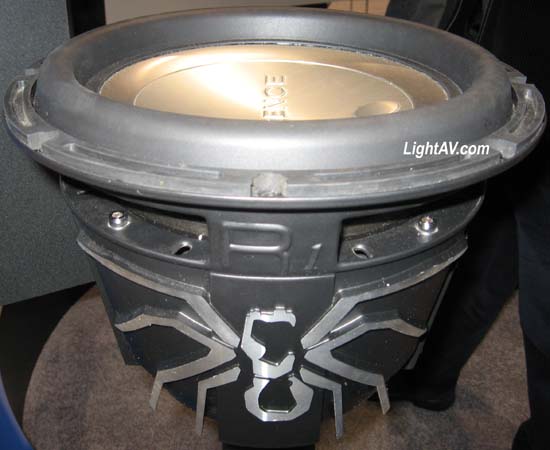

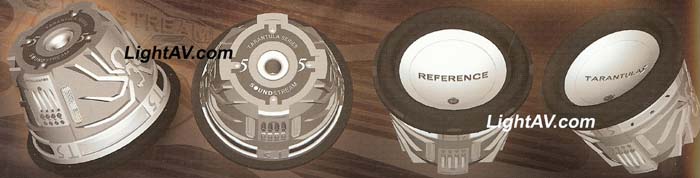

Reference RI
Subwoofers
RI-10L
RI-12L
|
|
Dual 2
Ohm 3" Flat Wire wound voice coil
Copper Clad Aluminum Voice
Coil Wire
Dual Layer Aluminum Voice
Coil Former
All in one discrete mount
terminal
Tall motor gap for extended
X-Max
Dual large high temperature
ferrite magnets
Integrated aluminum motor
heat sink
Stamped Aluminum cone and
dust cap for added heat dissipation
Large diameter Santoprene
surround for added cone surface area
Dual mirror stacked NOMEX
spiders with integrated tinsel leads
Secondary stamped steel basket
for easy re-coning
- RI-10L 10"
- 3.0" Voice Coil
- Sensitivity 86.85 dB
- XMAX 20mm
- RI-12L 12"
- 3.0" Voice Coil
- Sensitivity 89.13 dB
- XMAX 20mm
- I will get the rest of the
specs ASAP!!! Not listed in 2006 Catalog
|
$ |
SPLX Subwoofers
SPLX-12
12" Dual 2 Ohm
SPLX-124
12" Quad 2 Ohm
SPLX-15
15" Dual 2 Ohm
SPLX-154
15" Quad 2 Ohm
Boxes for the
SPLX Click Here!!
|
|
Die-Cast
Aluminum Basket
Tough Pulp/Kevlar Cone
Large-roll Dual Density Foam
Surround
Dual Stcked Magnet Structure
Dual 3", 2 Ohm Coils
Aluminum Voice Coil Voice
Coil Former
Extended Back Plate with
Aero-Vent
Stitched Tinsel Leads
Spring Loaded Push Terminals
Rubber Gasket
Rubber Magnet Cover
- 12"
- Frequency Response 25 Hz-1.4
KHz
- 192 Oz. Magnet
- Fs Free Air Resonance 35.2hz
(29.56Hz Quad 2 Ohm VC)
- 3" Voice Coil
- Sensitivity 98.2 dB
- 0.565" XMAX
- 1000 Watts RMS/2000 Peak
- Mounting Depth 7.25"
- Recommended Enclosure 1.5
CuFt Vented
-
- 15"
- Frequency Response 22 Hz-1
KHz
- 192 Oz. Magnet
- Fs Free Air Resonance 38.2Hz
(34.4Hz Quad 2 Ohm VC)
- 3" Voice Coil
- Sensitivity 99.9 dB
- 0.565" XMAX
- 1200 Watts RMS / 2500 Peak
- Mounting Depth 7.25"
- Recommended Enclosure 3.5
CuFt Vented
|
$ |
XXX Subwoofers
XXX-15
XXX-18
|
|
Die-Cast
Aluminum Basket
4" Flat wound Copper Clad
Aluminum Voice Coil
Non Pressed UV Coated Cone
Aero dynamic machined pole
piece
Chrome top and bottom plates
Dual NOMEX spiders with integrated
tinsel leads
- XXX-15 15"
- Frequency Response 20 Hz-300
Hz
- 1150 Oz. Magnet
- 4" Voice Coil
- Sensitivity 89 dB
- 0.565" XMAX
- 8500 Watts RMS
- Recommended for vented enclosures
- *For custom parameters &
Enclosure sizes, call SoundStreams Technical Dept.
- For Authorized woofer serial
numbers ONLY
- XXX-18 18"
- Frequency Response 20 Hz-300
Hz
- 1150 Oz. Magnet
- 4" Voice Coil
- Sensitivity 90 dB
- 10000 Watts RMS
- Recommended for vented enclosures
- *For custom parameters &
Enclosure sizes, call SoundStreams Technical Dept.
- For Authorized woofer serial
numbers ONLY
|
$ |
<
>
