• DESIGNED TO WORK WITH MULTI-ZONE WHOLE HOUSE SYSTEMS
• • Dual Independent AM/FM tuners
• • Controllable through both IR and RS232
• commands
• • Sends tuner feedback via RS232 Xantech LCD
• TouchPanel Controllers and MRC Keypads
• • 120 customizable preset controls
• • Rack mount ears included
• • Remote control included

US $Call

• • 160GB Hard Disk
• 250 Hours of uncompressed disk space
• 2800 Hours of disk space when compressed
• Sends feedback via RS232 Xantech LCD
TouchPanel Controllers and MRC Keypads
• Custom Presets
• Controllable through both IR and RS232
commands
• Remote control, Modem cable, StereRCA cable,
VideRCA cable are included

• • 25 watts per channel of high quality amplification
• • Four source four zone audio controller
• • Four In-Zone IR Emitter Outputs
• • Power Management for both audiand videdevices
• • Uses any of the five different style keypads
• manufactured by Xantech
• • Includes Xantech Dragon Drop-IR™ Software
• FREQ RESP: 12 HZ - 55 KHZ
• > 96 DB SIGNAL-TO-NOISE RATIO
• 0.08% THD

• FRONT PANEL PROGRAMMING ALLOWS THE SYSTEM TO BE PROGRAMMED WITHOUT A COMPUTER FOR THE EASIEST SETUP POSSIBLE
• IT SPORTS ROUTABLE IR, POWER MANAGEMENT & SENSE TRIGGER
• SYSTEM PACKAGE INCLUDES 4 LC4KPW WHITE KEYPADS, 4 IR EMITTERS & 4 MRREM REMOTES
• INTELLIGENT POWER MANAGEMENT KEEPS ALL SOURCES SYNCHED
• 25W PER CHANNEL
• 96 DB SIGNAL-TO-NOISE RATIO
• 0.08% THD
• FREQ RESP: 12 HZ -55 KHZ
• • 4 Source 4 zone multi-zone4 high quality 25 watt
• amplifiers for spectacular sound
• • Xantech’s new XPS™ Programming feature allows for
• simple programming without a PC
• • Routable IR
• • Power management and sense trigger
• • Uses the new LC4KPW 4 Zone Keypads designed to
• fit in a standard dual J box
• BX AUDI4X4™ SYSTEM PACKAGE INCLUDES
• • (4) LC4KPW White Keypads
• • (4) IR Emitters
• • (4) MRREM Remotes

• COMBINES CONVENIENCE, RELIABILITY & EASE-OF-USE
• INCLUDES DRAGON DROP PROGRAMMING
• NO COMPROMISE IN AUDIO PERFORMANCE FOR THE SAKE OF CONVENIENCE
• FREQ RESP: 12 HZ - 55 KHZ
• SIGNAL-TO-NOISE RATIO IS > 96 DB A-WEIGHTED
• 0.08% THD
• • Six zone amplified speaker outputs at 35 Watts per
• channel
• • Eight local zone audiinputs
• • 8 zone pre amps with selectable fixed or variable
• outputs for sub zone application
• • Optional high power amplifier for zones 7-8
• • 2 Routable RS232 ports for control of any serial
• control based product
• • Audisource loopthroughs in all eight inputs In-Zone
• IR Emitter Outputs
• • Power Management for both audiand video
• • Uses any of the five different style keypads
• manufactured by Xantech
• • Built-in Xantech IR code library
• • Includes Xantech Dragon Drop-IR™ Software

• Four Audio/Video Source Inputs
•     * Video sensing (NTSC/PAL Sync) on each input for power management of common source components
•     * Current sensing (>20mA-<10A) for each input for power management of common source components and future control modules
• Four Independent Zones
•     * Each zone has 1 RJ45 connector for MRC44 keypad, 1 composite video output, 1 speaker pair terminal, 12VDC status output.
•     * Multiple zones can be linked to behave as one zone.
•     * 25 Watts per channel.
•     * Frequency response: 12 Hz to 55KHz (±3dB)
•     * THD: <0.08%.
•     * Signal-to-noise ratio: > 96dB A-weighted
• Central Processor
•     * Internal memory (32 Kbytes E² PROM) for storing IR codes.
•     * Programmable only with Dragon Drop-IR Programming Software.
•     * Recognizes RC68+ Commands to initiate IR output.
•     * Outputs single IR commands or IR sequences.
•     * Sends "busy" signal to keypads when system is outputting IR sequences.
•     * IR learning eye on back panel of Controller/Amplifier can be used as "PCIR" for Dragon Drop-IR.
•     * DB-9 RS232 Serial port for programming and expansion to future capabilities (future-proof).
•     * Also available in 230 VAC / 50 Hz.
• Five IR Emitter Ports
•     * Four source specific IR emitter ports and one common IR output.
•     * Emitters can be used as common outputs or for priority lockout and IR routing.
• Software
•     * Uses Xantech's Dragon Drop-IR programming software (included).
•     * Provides programming of IR codes for control of source components.
•     * Program sequences of up to 40 IR codes per button.
•     * Incorporate delays in sequences to allow for amplifier power-up, light dimming, screen drop, drape closure, etc.
•     * Allows programming of sources on keypad displays.
•     * Associates IR codes to sensed conditions for power management of common sources.
•     * "Future Proof" feature will allow upgrades for additional system flexibility and control as available.
• KEYPAD
•     * Flush-mount wall unit with universal wall mounting plate. Requires a 4" x 4" hole cut-out in wall.
•     * Configurable LCD panel (via supplied Dragon Drop-IR software).
•     * 16 buttons (4 source select, 11 function, 1 power).
•     * Backlit LCD and buttons.
•     * Variable backlight timeout.
•     * Bi-colored Status LED for power and status.
•     * Broadband IR receiver (30KHz to 100KHz).
•     * Connects to MRC44 Controller/Amplifier via CAT5 cable with RJ45 connectors.
•     * Two RJ45 connectors allow two keypads per zone.
• Controller weight 22.75 lbs (10.3 kg)

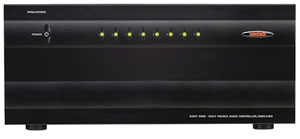

US $Call

• Frequency response 12Hz to 55kHz (+/- 3dB)
• Signal-to-noise ratio > 96dB A-weighted
• THD < 0.08%
• A/V source inputs 8
• A/V source loopthroughs 8 - all sources
• Also available in 230VAC / 50hz
• Built-in IR learning eye Yes - front panel
• Common IR emitter ports1
• Common status outputs 1
• Controller dimensions (W,D,H) 17" x 15.75" x 7.5"
• Controller weight 45 lbs
• Current sensing (power management) all 8 sources - requires CSM1 Current Sensing Module
• DB9 RS232 serial port for programming Yes - front and rear panels
• USB programming port Yes - front panel
• Provides IR routing
• Expandable Yes - to eight-source 16-zone system
• Front-panel A/V source inputs One - source input #8
• Internal memory for storage of IR codes 32Kbytes E2 PROM
• In-zone IR emitter outputs 8 - all zones via keypad connection
• Remote mute/standby control of external power amplifiers 2 - Zones 7 and 8
• Level reset switch Front panel
• Sends 'busy' signal to keypads
• Source-specific IR emitter ports 8
• Video NTSC sync sensing (power management) 8 - built-in on each video input
• Zone amplified speaker outputs 6 @ 35 Watts per channel
• Zone audio server inputs 8 - uses source input #1
• Zone IR emitter outputs 8 - all zones
• Zone preamp outputs 8 - all zones
• Zone status outputs 8
• Zone video outputs 8
• Zones 8
• Built-in keypad broadband IR receiver Yes, 30kHz to 100kHz
• Backlit keypad buttons and LCD Yes - with variable backlight timeout
• Keypad connection to controller/amplifier CAT5 cable with RJ45 connectors
• Keypad dimensions (W, D, H) 4.5" x 1.5" x 4.5"
• Keypad function buttons 12 - Ch+, Ch-, Status, Pause, Rew, Select/Play, Stop, FF, Vol+, Vol-, Mute and Power
• Keypad mounting Flush-mount with included universal wall mounting plate - optional MRC back box available
• Keypad source select buttons 8
• Keypad status LED Bi-colored, indicates power and status
• Keypad weight 0.6 lbs (0.3 kg)
• Maximum keypads per zone 4
• Programmable keypad LCD source icons
• Associate IR codes to sensed power states
• Built-in IR code library
• Future-Proof upgradable firmwares
• Outputs single IR commands or IR sequences (macros)
• IR codes per macro 40
• Include delays in IR macros
• Programmable with Dragon Drop-IR™
• Includes Dragon Drop-IR programming software
• RC68+ commands to trigger IR and RS232 output IR output only
• Controllable via RS232 Yes
• Monitor lockout
• Whole-house and priority modes
• Zone linking

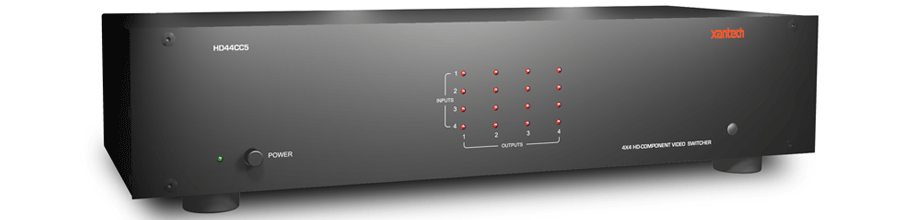

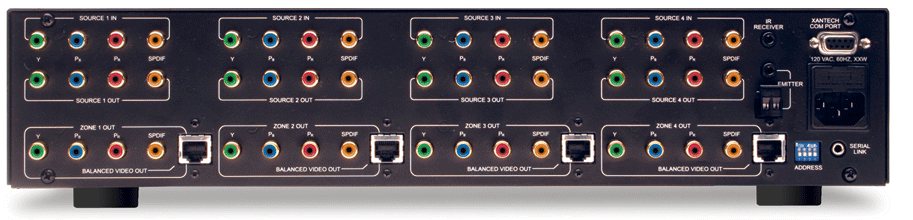

• Xantech introduces the HD44CC5 High Definition Component Video Matrix Switcher, which allows high definition 1080i video and digital audio to be sent up to 1000 feet over CAT5 cable with virtually no loss in signal quality. The HD44CC5 features unprecedented ease of installation and unrivaled flexibility.

The HD44CC5 four-source, four-zone high-definition matrix switcher has component video and S/PDIF digital audio inputs for each source. All four zone outputs have component video output and S/PDIF audio output for economical local distribution up to 250’, as well as a RJ45 output for transmission of the video and digital audio signal up to 1000’ to the HDRXSG01 receiver located in the zone. Both coaxial component video output and CAT5 output are active simultaneously, making it possible to distribute four sources to eight outputs at the same time from the HD44CC5.

• Four-Source, Four-Zone High Definition matrix video switcher with SD video capability
• Buffered component video loopthrough and serial port expansion capability allow expansion to up to 16 zones of distribution
• Component video inputs and S/PIDIF digital audio inputs for each source component
• Four RJ45 outputs for HD video and digital audio distribution up to 1000 feet over CAT5 wire
• 4 Coaxial Component video + S/PIDIF digital audio outputs for each zone for distribution up to 250 feet
• Controllable through IR and RS232 commands
• Bandwidth supports resolutions of 1080p, 1080i, 720p, 480p and 480i
• Xantech introduces the HD44CC5 High Definition Component Video Matrix Switcher, which allows high definition 1080i video and digital audio to be sent up to 1000 feet over CAT5 cable with virtually no loss in signal quality. The HD44CC5 features unprecedented ease of installation and unrivaled flexibility.

The HD44CC5 four-source, four-zone high-definition matrix switcher has component video and S/PDIF digital audio inputs for each source. All four zone outputs have component video output and S/PDIF audio output for economical local distribution up to 250’, as well as a RJ45 output for transmission of the video and digital audio signal up to 1000’ to the HDRXSG01 receiver located in the zone. Both coaxial component video output and CAT5 output are active simultaneously, making it possible to distribute four sources to eight outputs at the same time from the HD44CC5.



The HDRXSG01* CAT5 receiver automatically senses and compensates for both cable length and wire quality for the simplest installation in the industry. It senses cable run length in 20-feet increments and self-adjusts with no switches to set and no charts to consult, removing the guesswork from high definition video distribution over CAT5 wire.

The HDRXSG01 receiver mounts in the zone up to 1000 feet from the HD44CC5 switcher, and installs easily in a single-gang J-box. It contains a RJ45 input for the HD video and digital audio signal as well as a standard IR (requires separate wire run) and power connection. Outputs include component video, digital audio via S/PDIF connection and IR signal. For installations requiring local switching and distribution up to 250’, choose the HD44C High Definition Component Video Matrix Switcher.

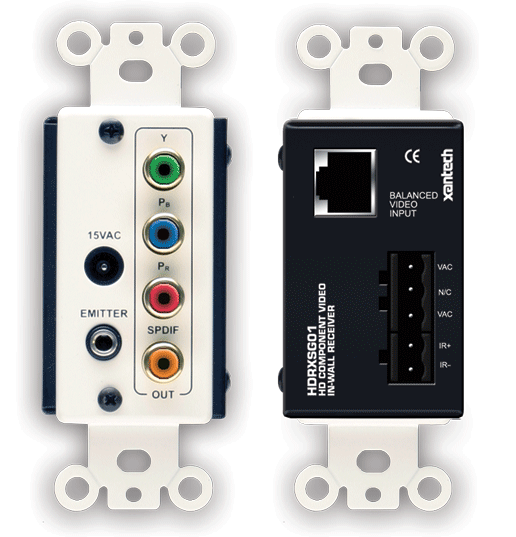

HDRXSG01 CAT5 receiver features:
Receiver automatically compensates for wire run length
as well as cable quality for simple, foolproof installation
• Receiver for use with HD44CC5 or HDTXSG01 transmitter
• Easily mounts in a single gang J-box
• Gold plated RCA connectors for video and digital audio output

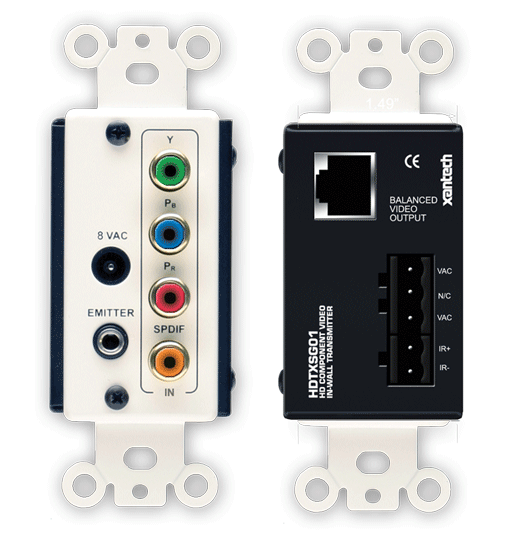

HDTXSG01 CAT5 transmitter features:
Transmitter for sending single HD or SD video source component and digital audio output up to 1000 feet over CAT5 wire to a HDRXSG01 receiver.
• Transmits HD or SD video, digital audio and IR signal
(IR requires separate wire run) to HDRXSG01 receiver
• Easily mounts in a single gang J-box
• Gold plated RCA connectors for video and digital audio output

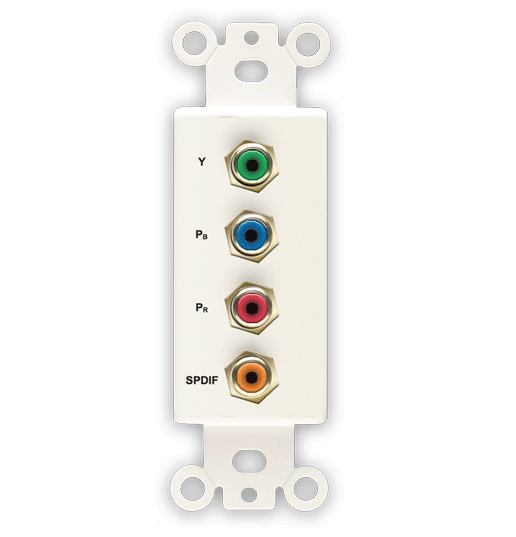

HDCXSG01* COAX wall plate features:
Use for neat installation with coax component video distribution.
• Easily mounts in a single gang J-box
Connectors: Face: gold plated RCA  Rear: gold plated F-Type

•     *  Zone Control. Six individual IR inputs allow independent zone control of the six built-in audio/video preamps. Compatible with all Xantech infrared receivers and keypads. The same IR system controls all external zone components as well, such as VCRs, laser disc players, etc., using Xantech 282/283 Series mini emitters or 794/797 interface modules.
•     * Zone Audio/Video Control. Each zone section of the ZPR68-10 contains its own audio/video preamp with remote controlled Bass, Treble, Balance, Volume, Mute and Input Select for up to 8 common sources. Each zone output can be individually pre-programmed to achieve proper tonal balance to compensate for the speakers and acoustics in each zone.
•     * Common Source Control. Each common source can be IR controlled with the use of external Xantech 282/283 Series mini emitters or 794/797 interface modules. Each emitter output is individually adjustable for high or low IR level.
•     * Expandability. Six zones not enough? The ZPR68-10 has the capability to link with the EXP9 expansion module for up to 15 zones total ... all with proper audio and video impedance matching.
•     * Mounting Flexibility. The ZPR68-10 can be mounted four ways: between wall studs, on top of wall studs using a separate flat panel, racked into a standard 19-inch rack using optional rack-mount plate, or freestanding.
•     * Input Level Matching. The input level for each source can be adjusted with the RC68+ remote/programmer by the installer. This prevents large volume differences when switching between sources.
•     * COM PORT. Future control capability. RS-232 data signal compatible.
•     * Global Commands. Allows user to gang all zones for whole house power ON/OFF, source selection, volume control, and mute for a "party mode". Global operation can be prevented in any given zone by using the mute command.
•     * Status & Control Outputs. An ON/OFF +12 V DC output is provided for each zone output and one for the common outputs. These can drive remote room ON/OFF indicators and/or drive the voltage sensing input on the PA640 or sensing AC power strips for power management of zone amplifiers and common sources.
•       l RC68+ IR Remote/Programmer. Available separately, the RC68+ includes all the IR control codes necessary for the setup and operation of the ZPR68-10. Normally, the RC68+ commands would be "taught" into Xantech learning keypads, remotes, etc., for eventual use by the client.
• AUDIO (each channel)

    * Gain (@ max VC): Unity
    * Input Overload: > 4 V RMS (@ max VC)
    * Input Impedance: > 40 k Ohms
    * Output Impedance: 470 Ohms
    * Signal to Noise: 98 dB (re 2V out) IEC 'A' weighted
    * THD: (VC -10 dB) 0.01% at 2V input level
    * Frequency Response (± 3 dB): 5 Hz to 70 kHz
    * Input/Output Impedance: 75 Ohms
    * Video Insertion Loss: < 1.0 dB (50 Hz to 10 MHz)

GENERAL
    * Gold Plated RCA type phono jacks: All A/V inputs/outputs
    * Power Requirements: 14V AC @ 1.4 A (Power supply included)
    * Requires RC68+ Programmer
    * Dimensions: 14" W x 2.5" D x 7 " H (356mm x 64mm x 178mm)

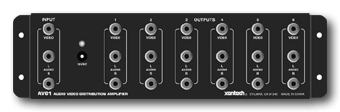

• The AV-61, in a “flat pack” design for incredible flexibility, is the perfect companion to the Xantech 795 and 796 Zone Controllers. It gives you the ability to split stereo audio and video signals six ways without any splitter loss. It also prevents audio distortion by buffering the sources from the loading effects of several AV receivers or preamps in a zoned system.

FEATURES
    * Flat pack case allows easy space-saving positioning and mounting.
    * Drives up to 6 audio/video components from a single A/V source.
    * Low A/V distortion for crisp sound and picture.
AUDIO
    * Gain: Unity
    * Input Overload: 3.0 V RMS
    * Input Impedance: > 20 k Ohms (ea. input)
    * Output Impedance: < 100 Ohms
    * THD: 0.06% at 1.0 V input level
    * Freq. Response: 10-45 kHz +/- 1 dB
    * Channel Separation: > 75 dB @ 1 kHz
    * IN-OUT Isolation: > 60 dB
    * OUT-OUT Isolation: > 60 dB
    * Signal to Noise: 100 dB (re 2V out)

VIDEO
    * Gain: Unity
    * Input Impedance: 75 Ohms
    * Output Impedance: < 3 Ohms
    * Video Insertion Loss: 50 Hz -10 MHz <1 dB
    * IN-OUT Isolation: 50 Hz-10 MHz > 25 dB
    * OUT-IN Isolation: 50 Hz-10 MHz > 55 dB
    * Return Loss: 50 Hz - 10 MHz > 20 dB

GENERAL
    * A/V input/outputs: RCA-type phono jacks
    * Power Supply: 16V DC @ 300 mA (included)
    * Power jack: 2.1 mm coaxial type
    * Dimensions: 10" W x 2 3/4" D x 1 1/4" H (254mm x 70mm x 32mm)

•     *  The features, functions & performance of the zones on the EXP9 are identical in every way to those of the ZPR68-10.

    * The EXP9 is available with one to nine "XCARDs" (zone expansion PCB's), pre-loaded and tested at the factory, or individually for in-field expansion.
    * When received from the factory, unused zone openings are covered from underneath with individual cover plates. These are removed, as needed, when additional zone XCARDs are installed in the field.
    * The EXP9 connects to the ZPR68-10 via two multiconductor ribbon cables (included); a 26-conductor cable and a 50-conductor cable.
    * As with the ZPR68-10, the EXP9 uses a multi-voltage high-current AC power supply (included).
    * Control of all zones is also possible via the COM PORT (RS232 data signal compatible) on the connected ZPR68-10.
* As with the ZPR68-10, the EXP9 operates with IR commands from the Xantech RC68+ IR Remote/Programmer (available separately). As received from the factory, each zone (as well as the XCARD's) is set to IR Code Group number 68.
Audio (each channel)
    * Gain (@ max VC): Unity
    * Input Overload: > 4 V RMS (@ max VC)
    * Input Impedance: > 40 k Ohms
    * Output Impedance: 470 Ohms
    * Signal to Noise: 98 dB (re 2V out) IEC 'A' weighted
    * THD: (VC -10 dB) 0.01% at 2V input level
    * Frequency Response (± 3 dB): 5 Hz to 70 kHz
    * Bass Control Range (@ 100 Hz): ± 12 dB (in 2 dB steps)
    * Treble Control Range (@ 10 kHz): ± 12 dB (in 2 dB steps)

Video
    * Input/Output Impedance: 75 Ohms
    * Video Insertion Loss: < 1.0 dB (50 Hz to 10 MHz)

General
    * Gold Plated RCA type phono jacks: All A/V inputs/outputs
    * Power Requirements: 14V AC @ 1.4 A (Power supply included)
    * Dimensions: 14" W x 2.5" D x 7 " H (356mm x 63.5mm x 178mm)
    * Weight: 4 lbs. 3 oz. (1.9kg.)
