LightAV.com
Price
|
Click for larger
|
Description
|
Retail
Price
|

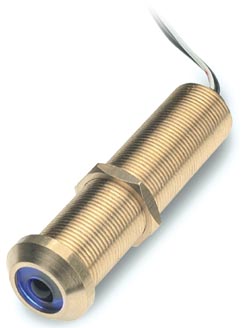

862 Eye
IR Receiver
US $Call
862P
Plasma Friendly Receiver
US $Call
|
|
- Wide-band Infrared demodulator
— accepts commands from most remotes
- Extended reception range
— IR reception up to 40 feet!
- Wide off-axis reception
— up to 45 degrees
- Automatic Gain Control
(AGC) — significantly reduces interference problems for reliable performance
- Low profile — compact size
allows installation in a variety of locations
- Unique SaphIR blue LED
provides clear visible confirmation that indicates reception of IR signal
- Universal application —
12VDC power input and IR output signal are compatible with most IR connecting
blocks
- Reliable circuit design
— Russound’s own micro-controller–based IR circuit
- Dimensions: 0.46” Diameter
x 2.03”D
- Power: 12VDC 31mA max.
- Receive Frequency: 36kHz
to 58kHz
- Transmit Frequency: 40kHz
and 56kHz
- Range: On Axis – 55ft to
80ft 30º Off Axis – 30ft to 55ft
|
$109
$299 |
860 Phantom
IR Receiver
US $Call
860P Phantom
CFL/Plasma Friendly IR Receiver
US $Call
|
|
- Wide-band Infrared demodulator
— accepts commands from most remotes
- Extended reception range
— IR reception up to 40 feet!
- Wide off-axis reception
— up to 45 degrees
- Automatic Gain Control
(AGC) — significantly reduces interference problems for reliable performance
- Low profile — compact size
allows installation in a variety of locations
- Unique SaphIR blue LED
provides clear visible confirmation that indicates reception of IR signal
- Universal application —
12VDC power input and IR output signal are compatible with most IR connecting
blocks
- Reliable circuit design
— Russound’s own micro-controller–based IR circuit
- Dimensions: 0.43”W x 0.37”H
x 2.15”D
- Power: 12VDC 31mA max.
- Receive Frequency: 36kHz
to 58kHz
- Transmit Frequency: 40kHz
and 56kHz
- Range: On Axis – 55ft to
80ft 30º Off Axis – 30ft to 55ft
|
$99
$249 |

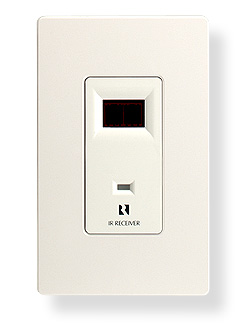

858
In-Wall IR Receiver
US $Call
858P
Plasma Friendly In-Wall
IR Receiver
US $Call
|
|
- Ultra-thin design
Decora® wall plate
Wide-band IR reception
Great off axis response
Excellent Range
IR confirmation LED
Power, Ground, Status
and Signal
Attractive non-obtrusive
design
12VDC, min. 200mA
Uses Russound 846C power
supply, 110V only
Wide-band Reception
|
$75
$299 |

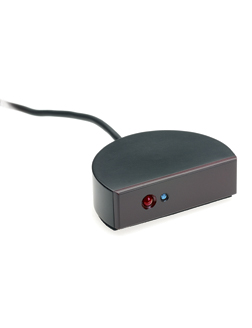

854
Table Top IR Receiver
US $Call
854P
CFL/Plasma Friendly Table
Top IR Receiver
US $Call
|
|
- Stylish, compact design
can be placed on top of a TV or installed in an entertainment or media equipment
rack.
- Blue IR Confirmation LEDs
allow for fast & easy recognition.
- Wide-band IR offers wide-angle
reception, outstanding pick up range and excellent noise rejection.
- Receives commands from
most brands of remote controls for seamless integration.
- Non-skid base helps to
keep the unit in place and ensure stable reception.
- Quick disconnecton
- Receiver Frequency: 36kHz
to 58kHz
- Transmit Frequency: 40kHz
and 56kHz
- Range: On Axis–55ft to
80ft 30o Off Axis–30ft to 55ft
- Power: 12VDC 31mA max.
- Dimensions: 2.28”W x 0.72”H
x 1.68”D
|
$80 |
845.1
IR Micro-Emitter
US $Call
|
|
- The 845.1 is a single emitter
developed to send IR signals from one output of an IR connecting Hub, Russound
857, to a source component IR sensor located on the front panel.
Think of an IR emitter as an extension of the IR receiver connected to the
IR connecting Hub.
- .125" (3.5mm) mono phono
jack
- Single output
- Small, inconspicuous housing
- 10' cable
- Elegant, round design
- Easy Installation
- 5VDC to 12VDC
|
$13 |
1584.1
Dual Head IR Micro-Emitter
US $Call
|
|
- The 1584.1 is a dual emitter
developed to send IR signals from one output of an IR connecting Hub, Russound
857, to two source component IR sensors located on the front panel.
Think of an IR emitter as an extension of the IR receiver connected to the
IR connecting Hub. The 1584.1 combines two 845.1 single emitters to
accomplish sending signals to more than one source component. The 1584.1
is used often when there are more sources than there are connections on the
IR connecting Hub
- .125" (3.5mm) mono phono
jack
- Dual output
- Small, inconspicuous housing
- 10' cable
- Elegant, round design
- Easy Installation
- 5VDC to 12VDC
|
$20 |
846C
12VDC 200mA Power Supply
US $Call

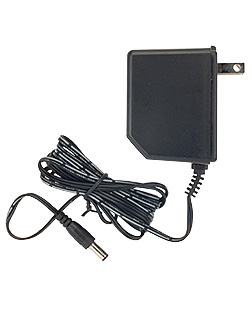

1201A
12VDC 1A Power Supply
US $Call
|
|
The IRB-1 is an in-wall
Decora® IR connecting plate for the Russound Tabletop IR receiver model
number 844. The 844 uses a stereo .125"(3.5mm) phono jack to connect
Power, Signal, Status and Ground. - Clean, neat installation
- Decora® wall plate
- Available in White only
- IR Confirmation LED
- Power Rating: Passes through
12VDC
- 12AWG detachable connector
- Dimensions (in-wall): 1.4375"W
x 2.625"H x 1.625D
|
$35 |
900
Russound 900 SaphIR 50-foot
IR emitter extension cable
US $Call
|
|
- The SaphIR 900 is a 50-foot
IR emitter extension cable. It's convenient for use where a source component
or other device is in a remote location away from the IR connecting block.
- Features
- Convenient—Lets you connect
a remote emitter without installing permanent wiring
- Easy to use—Plug and jack
enable quick connection
- Compatible—Works with any
IR emitter Specifications
- Length: 50 feet
- Plug: 1/8" (3.5mm) stereo
TRS plug
- Emitter jack: 1/8" (3.5mm)
mono TS jack
|
$19 |

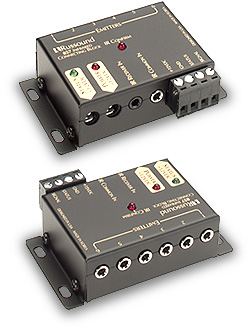

857
6 Emitter Connecting Block
US $Call
|
|
- The Russound 857 is an IR
connecting Hub designed to simplify the connection of IR accessories together.
The design offers the ability to send IR signals to 6-sources using the Russound
845.1 single emitter or up to 12-sources using the Russound 1584.1 dual emitters.
Unlike most connecting blocks / hubs available, the 857 was designed to provide
useful troubleshooting tools such as detachable connectors, a power indication
LED, a status LED and an IR confirmation LED.
- Send signals to 6-12 sources
- 12AWG detachable INPUT
connector
- Connects up to 12 IR receivers
- 12VDC powered
- Power, Ground, Status and
Signal
- IR Confirmation LED
- Power Confirmation LED
- Status Confirmation LED
- (2) IR Receiver in .125"(3.5mm)
- Quick Mount
- Sleek thin design
- Passive IR output
- Power 12VDC in / out
- Status 12VDC in / out
- (6) .125" (3.5mm) mono
IR emitter outs
- (1) 12AWG, detachable,
4-conductor, IR Receiver In
- (2) .125" (3.5mm) IR In
|
$ |
IRJ-1P
Plasma friendly table top
kit
US $Call
|
|
- Kit includes (1) 854P plasma
friendly table top receiver, (1) 857 connection block, (1) 846C power supply
and (4) 845.1 IR emitters.
|
$ |

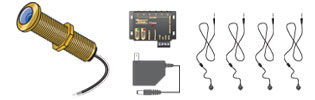

IRJ-2P
Plasma friendly flush mount
kit
US $Call
|
|
- Kit includes (1) 862P plasma
friendly flush mount receiver, (1) 857 connection block, (1) 846C power
supply and (4) 845.1 IR emitters.
|
$ |
IRJ-4P
Plasma friendly surface
mount kit
US $Call
|
|
- Kit includes (1) 860P Phantom
plasma friendly surface mount receiver, (1) 857 connection block, (1) 846C
power supply and (4) 845.1 IR emitters.
|
$ |

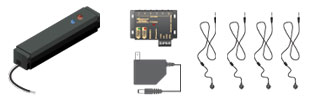

IRJ-4
Surface mount kit
US $Call
|
|
- Kit includes (1) 860 Phantom
surface mount receiver, (1) 857 connection block, (1) 846C power supply
and (4) 845.1 IR emitters.
|
$ |

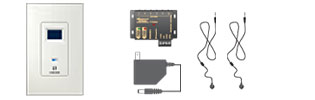

IRK-1P
Plasma friendly in-wall
kit
US $Call
|
|
- Kit includes (1) 860 Phantom
surface mount receiver, (1) 857 connection block, (1) 846C power supply
and (4) 845.1 IR emitters.
|
$ |
Russound IR Receivers/Emitters
<
>
