• The KLK-E5 is designed to control an ACA-E5 Russound RNET® audio distribution system. It controls the newest Russound components, including the SMS3 Smart Media Server, iBridge™ Dock and Bay, and the ST2 Tuner with AM/FM.

  The grayscale LCD screen displays valuable information such as Playlist, Channel, Station, Artist, Song Title, Genre and more, all in real time. It supports custom names for presets, banks, themes and sources for a truly personal touch.
  • Menu driven interface
  • High-resolution display
  • Click wheel selector ring
  • Alarm and sleep timer
  • IR receiver with auxiliary input (plasma proof option)
  • Standard FIT™ two-gang box
  • Available in five finishes
  Display
  70 mm W x 35 mm H high resolution LCD


• The TSV-E5 is designed to control an ACA-E5 Russound RNET® audio distribution system. It controls the newest Russound components, including the SMS3 Smart Media Server, iBridge™ Dock and Bay, and the ST2 Tuner with AM/FM.

  The full-color, high-resolution screen displays valuable information such as Playlist, Channel, Station, Artist, Song Title, Genre and more, all in real time. It also displays album cover art and digital image slide shows from Russound SMS-3 Smart Media Servers, enriching the user experience.
  • 10 hard buttons for frequently used tasks
  • Remote zone control
  • IR receiver with optional plasma resistant IR filter
  • IP CCTV camera support
  • Software controlled ambient light sensor for backlight brightness adjustment
  • Display RSS distributed web content
  • Alarm with sleep timer
  • Single CAT-5 connection
  • Full SMS-3 control, including theme and data editing
  8.4” Color TFT display with backlight, 800 x 600 dpi resolution


• The TSV-E5D Desktop LCD Controller is designed to control an ACA-E5 Russound RNET® audio distribution system. It controls the newest Russound components, including the SMS3 Smart Media Server, iBridge™ Dock and Bay, and the ST2 Tuner with AM/FM.

  The full-color, high-resolution screen displays valuable information such as Playlist, Channel, Station, Artist, Song Title, Genre and more, all in real time. It also displays album cover art and digital image slide shows from Russound SMS-3 Smart Media Servers, enriching the user experience.
  • 10 hard buttons for frequently used tasks
  • Remote zone control
  • IR receiver with optional plasma resistant IR filter
  • IP CCTV camera support
  • Software controlled ambient light sensor for backlight brightness adjustment
  • Display RSS distributed web content
  • Alarm with sleep timer
  • Single CAT-5 connection
  • Full SMS-3 control, including theme and data editing
  8.4” Color TFT display with backlight, 800 x 600 dpi resolution


• The AFM module is an optional tuner module for the ACA-E5 controller. This AM/FM tuner module is field-installable and is secured with spring knobs. It supports a 75-ohm FM antenna and a 300-ohm AM antenna. The AFM module is configured as a source through SCS-E5 configuration software.
  AM tuner
  Tuning range: 530 - 1710 kHz
  Antenna impedance: 300 ohm unbalanced
  Sensitivity @ 20dB S/N: 55 dBu
  Image rejection: 33dB
  S/N ratio: 45 dB

  FM tuner
  Tuning range: 87.7 - 107.9 Mhz
  Antenna impedance: 75 ohm unbalanced
  Sensitivity @ 30 dB S/N: 6 dB max 12 dBu
  Image rejection: 80 dB
  S/N ratio: 60 dB

  Physical
  Dimensions: 3.875”W x 1.313”H x 6.188”D (9.84 x 3.34 x 15.72 cm)
  Weight: 1 lbs. (0.45 kg)

  Included accessories
  (1) AFM module
  (1) FM antenna
  (1) AM antenna


• The ACA-E5 is an advanced eight-zone, twelve-source multiroom controller amplifier with an internal AM/FM tuner. With an advanced feature set, the ACA-E5 represents the latest in technology from the #1 brand in multiroom audio.
  12 audio-video inputs
  Each of the 12 source inputs of the ACA-E5 includes RCA connections for stereo audio and composite video.
  Source inputs 1 and 2 feature RNET A/V Inputs that allow direct connection of RNET® Smart sources such as the iBridge Dock and Bay, or connection of remotely located sources such as satellite or cable television boxes, or DVD players. RNET A/V Inputs use CAT-5e cable, allowing for sources to e located up to 300ft  from the ACA-E5.
  Source input 11 includes an internal expansion slot for radio Modules, such as the AM/FM Radio Module. If a radio Module is not used, Source input 11 functions as a traditional audio-video source input.
  Source input 12 is an internal AM/FM tuner. If the radio tuner is unnecessary, this source input can be programmed as a tradition audio-video source input.

  8 distribution zones
  Zones 1 through 6 feature high-current 2-channel digital amplifiers with 35 watts per channel output along with line-level outputs. Zones 7 and 8 only offer fixed or variable line-level outputs. These zones work well for larger areas that require additional amplification, or for zoness that have an existing amplifier, such as a Home Theater.

  In addition to the 8 zones of output, the ACA-E5 provides two solutions for system expansion through subzones. Included with each of the 8 zones is a RNET A/V Output. RNET A/V Outputs allow audio and video signals to be distributed up to 300� on CAT-5e cable to a remote location. From there, additional amplifiers and volume controls can be added to create system subzones. Also available are optional, field installable A-BUS subzone modules. With four zones each, the installed modules correspond to the 8
  individual zones of the ACA-E5. If system expansion through subzones does not meet the needs of the designer, multiple ACA-E5 controller amplifiers can be linked together to provide coverage for up to 48 zones.

  Along with increased flexibility of source inputs and zone distribution, the ACA-E5 also has enhanced features to increase the functionality of a multiroom controller amplifier.
  Whole house paging
  Communicate between zones with the push of a button.
  Door bell and remote latch control
  Hear the door bell throughout you multiroom system, or mute through the use of “do not disturb” function. Unlatch door remotely to let guests in.
  Ethernet Port
  Allows for programming and system diagnostics over the internet.
  RS-232 Ports
  Combine the ACA-E5 with home automation systems.
  USB Port For programming, system connections, or future interface devices.
  • 12 source inputs
  • 8 zone outputs
  • Internal AM/FM tuner
  • Optional Smart Source modul (AM/FM tuners)
  • 2 optional 4 zone A-BUS® sub-zone modules
  • Ethernet port
  • IP and web server support
  • 2 USB ports
  • 2 RS-232 serial ports
  • Remote source inputs
  • Doorbell chimes and paging
  • Audio and video sensing inputs
  • Composite video switching
  • Home theater triggers
  • Remote zone outputs
  Zones
  8 per controller, 48 total per system


E5 Series

SMC-30

US $Call

SMC-35
500GB HDD Media Server with Windows Vista and Lifeware interface. (Cable Card Slot)

US $Call

US $Call

US $Call

US $Call

US $Call

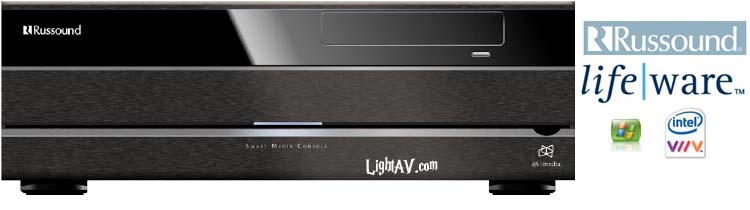

• The Russound Smart Media Console is a powerful and flexible Media Center controller designed for digital entertainment and home integration.
• The Smart Media Console allows you to store, manage, and enjoy all of your digital content from the comfort of your living room.
• Record your favorite shows or movies or pause and rewind the big game with the digital video recorder function.
• Download and view movies and television on-demand. Enjoy DVDs in full surround sound and High-Definition video.
• Play your digital music collection though a home theater or multiroom audio system. View a slideshow of your digital photographs with music.
  Beyond its role in managing your digital entertainment, the Smart Media Console is also a powerful home integration tool.
• Pre-loaded with Life|ware automation software, Russounds Smart Media Console can integrate with and provide system controls for third-party lighting, climate
  control, security, and multiroom audio-video systems.
• Driven by the Windows Vista Ultimate OS with Media Center and powered by Life|ware, the Smart Media Console is available in three different levels of hardware configurations, each level featuring Intel Core 2 Duo processors and optional Digital Cable Ready CableCARD slot tuners.
• Manages digital media including music, photos, and moviesRecords NTSC, ATSC, or High-Definition cable broadcasts
• Provides 7.1 analog audio out with Doby Home Theater decoding Controls home automation and integration systems
• All Systems come with Windows Vista Ultimate
• 35/45/55 Include Cable Card Slot

• SMC-30/35: Dual Intel Core 2 2.13 GHZ Processors, 500 GB HDD, 2GB RAM, NVIDIA 8500GT video card
• SMC-40/45: Dual Intel Core 2 2.4 GHZ Processors, 1 TB HDD, 2GB RAM, NVIDIA 8500GT video card
• SMC-50/55: Dual Intel Core 2 2.67 GHZ Processors, 2 GB RAID5 HDD, 4GB RAM, NVIDIA 8800GT video card

Powered by Life|Ware
Life|ware is groundbreaking software from Exceptional Innovation that allows you to seamlessly integrate control of your home with your world of digital entertainment.
With Life|ware you can control your homes lighting system, thermostats and security systems, distribute music throughout the house, enact homeowner-defined Life|scenes and share media across your entire network. And you can do it all with the same remote control, the same six buttons
and the same famously graceful look, navigation and functionality of Media Center.
Its the power of digital entertainment and the convenience of home control at your fingertips. Life|ware lets you do more.
Russound will be selling pre-configured bundles Life|ware. These bundles will allow installers to activate devices for multiroom audio, home theater
and multiroom audio, security and control, or whole home automation in a fraction of the time required to install and activate individual device keys.
For more flexibility, keys for additional clients, extenders, or six and twelve device multipacks can be purchased separately. These pre-configured
Life|ware bundles provide integrators and installers with a significant time-savings over custom installations and programming.

Available packages:
Multiroom Audio
Home Theater with Multiroom Audio
Security and Control
Whole-Home Automation
Features
Share digital content across your home network
Choose how you want to interact with Life|ware via mouse, keyboard, remote, or touchscreens
Multi-vendor hardware support gives you more choices among PCs and subsystems
Schedules for common home control and security tasks
Life|scenes set a mood using all of your homes systems
Extend the experience around the house using Media Center Extenders or PC clients
