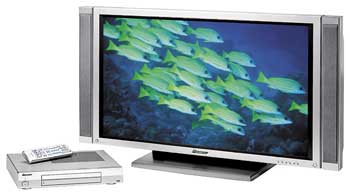

System Configuration:
Plasma Display
Media Receiver
Pair of Side Mount Speaker
Table Top Stand
Features:
Plasma Display
Full High Definition and Native Wide XGA resolution - 16:9
Aspect Ratio (1280 x 768)
Pure Color Filter for Improved Color Accuracy
Deep Encased Cell Structure
Advanced Continuous Emission Display technology
Wide Viewing Angle (Horizontal/Vertical 160 x 160
degrees)
Automatic Format Conversion of any source to 768
progressive display
High Contrast Black Stripe Coating for improved contrast
16.77 million colors reproduction
10 Bit Signal Processing
Media Receiver
Dual - 181 Channel NTSC tuners with split screen
capability
480i, 480p, 720p and 1080i HDTV compatible
12W+12W amplifier with SRS and FOCUS surround sound
system
3 language on screen display (English, Spanish and
French)
PureCinema II for accurate 2:3 pull down film detection
Adjustable Color Temperature (5 steps)
Display Modes: 4:3, Full, Zoom, Cinema and Wide
3 dimensional Y/C Separation
Screen Adjustment for PC Use
SMART Remote Control, allowing for recall of other mfg
product codes as well as being able to learn other mfg
remote codes.
Inputs/Outputs:
Antenna Input: x 2 (75 ohms Unbalanced F
connector)
Antenna Output: x 1 (75 ohms Unbalanced F
connector)
A/V Inputs (Front): x 1 (RCA pin)
A/V Inputs (Rear): x 3 (RCA pin)
A/V Output (Rear): x 1 (RCA pin)
S- Video Input (Front): x 1
S- Video Output (Rear): x 1
S- Video Input (Rear): x 3
Component Input: x 2
D-Sub 15 Input (Front): x 1 (For PC Input)
D-Sub 15 Input (Rear): x 1 (For Video HD Input)
Audio Input (Front): x 1 (Mini Stereo)
SR In/Output: x 2
Side Mount Speaker
Slim 2-way speaker system to fit on both sides of the
Plasma Display
Table Top Stand
Small footprint to place the Plasma Display on a table,
cadenza or sideboard.
Optional Accessories:
PDWB-5003 (Flat Wall Bracket)
PWM-503 (Tilt Wall Bracket)
Dimensions (inch) - (Width - Height - Depth)/Weight (lbs.):
Plasma Display : 47-15/16 x 28-1/8 x 3-27/32/90.3lbs.
Media Receiver: 16-17/32 x 2-3/4 x 13/14.3lbs.
Speaker (pc): 2-29/32 x 28-1/8 x 3-27/32/3.7lbs.
Warranty:
1 years parts and labor/Residential application only/Image
persistence in not covered |
