LightAV.com
Price
|
Product Shot
|
Description
|

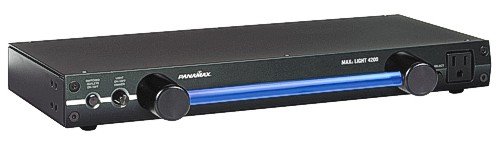

ML-4200
9-Outlet RacMax Rack Light with Surge
Protection
US$ 125.34
|
|
FEATURES
The Coolest Light in the Rack!
The MAX Light provides clean, cool, glare-free and directional LED lighting
for up to 3 feet of rack space. The LED light rod is virtually unbreakable
and is designed to replace troublesome and expensive rack lights.
Protect or Disconnect Circuitry
Protects equipment no matter how big the surge or, in the event of a catastrophic
surge, completely disconnects the power.
WARRANTIES
$5,000,000 Connected Equipment Protection Policy
Panamax will protect your equipment or we will repair or replace up to $5,000,000!
3 Year Product Warranty
The surge protector shall be free of any defects in design, materials, or
workmanship, and Panamax will repair or replace any defective product up to
three years from the purchase date.
AC SPECIFICATIONS
Protect or Disconnect Circuitry Yes
Thermal Fusing Yes
Catastrophic Surge Circuit Yes
Single Pulse Energy Dissipation 1350 Joules
Spike Capacity 52,000A
EMI/RFI Noise Filtration 50dB (99.7%)
Line Voltage 120VAC, 50/60 Hz
Clamping Level (TVSS Voltage) 330V
Initial Clamping Level 141V RMS/200V Peak
Overvoltage Shutoff N/A
Undervoltage Shutoff N/A
Protection Modes L-N, N-G, L-G
Maximum Current Rating 15A (1800W)
Response Time <1ns
PRODUCT FEATURES
Number of Outlets 9
Always On Outlets 0
Switched Outlets 9
Delayed Outlets 0
Cord Length 9 ft.
Connections Right Angle
Length 6.50" Width 16.86"Height 1.75" Weight 10.00 lbs.
TELCO SPECIFICATIONS
SignalPerfect Circuitry
Fuseless / Auto Resettable No
Clamping Level
Capacitance
Suppression Modes
Wires Protected
Connectors |
M4300-EX
8-Outlet Line Conditioner/Surge
Suppressor
US$ 159.84
|
|
- FEATURES
AVM AC Monitoring
Rack Mountable
Ground Lug
Power Switch Delay
Option Silver Bezel available.
WARRANTIES
$5,000,000 Connected Equipment Protection Policy
Panamax will protect your equipment or we will repair or replace up to $5,000,000!
3 Year Product Warranty
The surge protector shall be free of any defects in design, materials, or
workmanship, and Panamax will repair or replace any defective product up to
three years from the purchase date.
AC SPECIFICATIONS
Protect or Disconnect Circuitry Yes
Thermal Fusing Yes
Catastrophic Surge Circuit Yes
Single Pulse Energy Dissipation 1650 Joules
Spike Capacity 52,000A
EMI/RFI Noise Filtration 49dB-61dB
Line Voltage 120VAC, 50/60 Hz
Clamping Level (TVSS Voltage) 330V
Initial Clamping Level 200V
Overvoltage Shutoff 142VAC
Undervoltage Shutoff 84VAC
Protection Modes L-N, N-G, L-G
Maximum Current Rating 15A (1800W)
Response Time <1ns
PRODUCT FEATURES
Number of Outlets 8
Always On Outlets 3
Switched Outlets 4
Delayed Outlets 0
Cord Length 10 ft.
Connections Straight
Length 7.25" Width 17" Height 1.75" Weight 8.5 lbs.
TELCO SPECIFICATIONS
SignalPerfect Circuitry Yes
Fuseless / Auto Resettable Yes
Clamping Level 260v Telco/ 8v LAN
Capacitance 30pf (approx.)
Suppression Modes Metallic & Longitudinal
Wires Protected Pins 4,5 Telco/ Pins 1, 2, 3, & 6 LAN
Connectors RJ-11/45
AGENCY & WARRANTY
Agency Approval cURus
Product Warranty Length 3 Years
Connected Equipment Policy Length Lifetime
Connected Equipment Policy Amount $5,000,000
Lightning Protection Yes
COAX SPECIFICATIONS
Antenna/Cable Lines Protected 1
Antenna/Cable Clamping 1.4V
Antenna/Cable Attenuation (5MHz-950MHz) <1dB
Satellite Lines Protected 1
Satellite Clamping 27V
Satellite Attenuation <1 dB from 950MHz-2.05GHz
Coax Connectors Female
|
M5100-EX
11-Outlet Line Conditioner/Surge
Suppressor
US$ 224.24
|
|
- FEATURES
AVM AC Monitoring
LAN and Telephone Protection
High Current Outlets 12 volt Trigger
Blue LED Volt and Amp Indicator Lights
WARRANTIES
$5,000,000 Connected Equipment Protection Policy
Panamax will protect your equipment or we will repair or replace up to $5,000,000!
3 Year Product Warranty
The surge protector shall be free of any defects in design, materials, or
workmanship, and Panamax will repair or replace any defective product up to
three years from the purchase date.
AC SPECIFICATIONS
Protect or Disconnect Circuitry Yes
Thermal Fusing Yes
Catastrophic Surge Circuit Yes
Single Pulse Energy Dissipation 1815 Joules
Spike Capacity 73,000A
EMI/RFI Noise Filtration 60dB-80dB
Line Voltage 120VAC, 50/60 Hz
Clamping Level (TVSS Voltage) 330V
Initial Clamping Level 200V
Overvoltage Shutoff 142VAC
Undervoltage Shutoff 90VAC
Protection Modes L-N, N-G, L-G
Maximum Current Rating 15A (1800W)
Response Time <1ns
PRODUCT FEATURES
Number of Outlets 11
Always On Outlets 4
Switched Outlets 4
Delayed Outlets 6
Cord Length 10 ft.
Connections Straight
Length 12.75" Width 17" Height 3.5" Weight 16 lbs.
TELCO SPECIFICATIONS
SignalPerfect Circuitry Yes
Fuseless / Auto Resettable Yes
Clamping Level 260v Telco/ 8v LAN
Capacitance 30pf (approx.)
Suppression Modes Metallic & Longitudinal
Wires Protected Pins 4,5 Telco/ Pins 1, 2, 3, & 6 LAN
Connectors Tel RJ-11, LAN RJ45
COAX SPECIFICATIONS
Antenna/Cable Lines Protected 1
Antenna/Cable Clamping 1.4V
Antenna/Cable Attenuation (5MHz-950MHz) <1dB
Satellite Lines Protected 1
Satellite Clamping 27V
Satellite Attenuation <1 dB from 950MHz-2.05GHz
Coax Connectors Female
|
M5300-EX
11-Outlet Line Conditioner/Surge
Suppressor with Digital Voltmeter
US$ 353.04
|
|
- FEATURES
AVM AC Monitoring Outlet Bank Status Indicators
Adjustable Meter Lights
Built in sequential turn-on and turn-off delays
Blue Digital Volt Meter
WARRANTIES
$5,000,000 Connected Equipment Protection Policy
Panamax will protect your equipment or we will repair or replace up to $5,000,000!
3 Year Product Warranty
The surge protector shall be free of any defects in design, materials, or
workmanship, and Panamax will repair or replace any defective product up to
three years from the purchase date.
AC SPECIFICATIONS
Protect or Disconnect Circuitry Yes
Thermal Fusing Yes
Catastrophic Surge Circuit Yes
Single Pulse Energy Dissipation 1815 Joules
Spike Capacity 73,000A
EMI/RFI Noise Filtration 60db-90dB
Line Voltage 120VAC, 50/60 Hz
Clamping Level (TVSS Voltage) 330V
Initial Clamping Level 200V
Overvoltage Shutoff 142VAC
Undervoltage Shutoff 90VAC
Protection Modes L-N, N-G, L-G
Maximum Current Rating 15A (1800W)
Response Time <1ns
PRODUCT FEATURES
Number of Outlets 11
Always On Outlets 4
Switched Outlets 4
Delayed Outlets 6
Cord Length 10 ft.
Connections Straight
Length 12.75" Width 17" Height 3.5" Weight 19 lbs.
TELCO SPECIFICATIONS
SignalPerfect Circuitry Yes
Fuseless / Auto Resettable Yes
Clamping Level 260v Telco/ 8v LAN
Capacitance 30pf (approx.)
Suppression Modes Metallic & Longitudinal
Wires Protected Pins 4,5 Telco/ Pins 1, 2, 3, & 6 LAN
Connectors Tel RJ-11, LAN RJ45
COAX SPECIFICATIONS
Antenna/Cable Lines Protected 2
Antenna/Cable Clamping 1.4V
Antenna/Cable Attenuation (5MHz-950MHz) <1dB
Satellite Lines Protected 2
Satellite Clamping 27V
Satellite Attenuation <1 dB from 950MHz-2.05GHz
Coax Connectors Female
|
M5400-EX
11-Outlet Line Conditioner/Surge
Suppressor with Digital Amp & Voltmeter
US$ 481.84
|
|
FEATURES
AVM AC Monitoring Outlet Bank Isolation
New Noise Elimination Design
Blue Digital LED Volt and Amp Meters
Outlet Labeling
WARRANTIES
$5,000,000 Connected Equipment Protection Policy
Panamax will protect your equipment or we will repair or replace up to $5,000,000!
3 Year Product Warranty
The surge protector shall be free of any defects in design, materials, or
workmanship, and Panamax will repair or replace any defective product up to
three years from the purchase date.
AC SPECIFICATIONS
Protect or Disconnect Circuitry Yes
Thermal Fusing Yes
Catastrophic Surge Circuit Yes
Single Pulse Energy Dissipation 1815 Joules
Spike Capacity 73,000A
EMI/RFI Noise Filtration 60dB-100dB
Line Voltage 120VAC, 50/60 Hz
Clamping Level (TVSS Voltage) 330V
Initial Clamping Level 200V
Overvoltage Shutoff 142VAC
Undervoltage Shutoff 90VAC
Protection Modes L-N, N-G, L-G
Maximum Current Rating 15A (1800W)
Response Time <1ns
PRODUCT FEATURES
Number of Outlets 11
Always On Outlets up to 11
Switched Outlets 4
Delayed Outlets up to 6
Cord Length 10 ft.
Connections Straight
Length 12.75" Width 17" Height 3.5" Weight 21 lbs.
TELCO SPECIFICATIONS
SignalPerfect Circuitry Yes
Fuseless / Auto Resettable Yes
Clamping Level 260v Telco/ 8v LAN
Capacitance 30pf (approx.)
Suppression Modes Metallic & Longitudinal
Wires Protected Pins 4,5 Telco/ Pins 1, 2, 3, & 6 LAN
Connectors Tel RJ-11, LAN RJ45
COAX SPECIFICATIONS
Antenna/Cable Lines Protected 2
Antenna/Cable Clamping 1.4V
Antenna/Cable Attenuation (5MHz-950MHz) <1dB
Satellite Lines Protected 2
Satellite Clamping 27V
Satellite Attenuation <1 dB from 950MHz-2.05GHz
Coax Connectors Female |
M5410
11-Outlet Power Conditioner/Surge
Suppressor
US$ 481.84
|
|
Level
5 EMI/RFI noise filtration
RS232 control interface for home automation
Handles surges up to 91,000A with
2325 joules energy absorption
Features include a backlit analog
voltage meter w/dimmer, front convenience outlet, & detachable IEC power
cord
12V-trigger input/output, programmable
outlet sequencing and signal line protection
11 pure AC power outlets; (4 always
on / 4 switched, 2 high current and 1 front panel outlet)
Signal protection for 2 satellite,
2 CATV, & 1 telco
$5,000,000 connected equipment protection
policy
17" W x 4 1/8" H x 12" D |
M5500-EX
11-Outlet Power Conditioner/Surge
Suppressor
with Isolation Transformer Technology
US$ 626.07
|
|
- FEATURES AVM AC Monitoring
AC Regeneration Transformer
New Noise Elimination Design
Blue Digital LED Volt and Amp Meters
Outlet Bank Isolation
WARRANTIES
$5,000,000 Connected Equipment Protection Policy
Panamax will protect your equipment or we will repair or replace up to $5,000,000!
3 Year Product Warranty
The surge protector shall be free of any defects in design, materials, or
workmanship, and Panamax will repair or replace any defective product up to
three years from the purchase date.
AC SPECIFICATIONS
Protect or Disconnect Circuitry Yes
Thermal Fusing Yes
Catastrophic Surge Circuit Yes
Single Pulse Energy Dissipation 1815 Joules
Spike Capacity 73,000A
EMI/RFI Noise Filtration 60dB-120dB
Line Voltage 120VAC, 50/60 Hz
Clamping Level (TVSS Voltage) 330V
Initial Clamping Level 200V
Overvoltage Shutoff 142VAC
Undervoltage Shutoff 90VAC
Protection Modes L-N, N-G, L-G
Maximum Current Rating 15A (1800W)
Response Time <1ns
PRODUCT FEATURES
Number of Outlets 11
Always On Outlets up to 11
Switched Outlets 4
Delayed Outlets up to 6
Cord Length 10 ft.
Connections Straight
Length 12.75" Width 17" Height 3.5" Weight 30 lbs.
TELCO SPECIFICATIONS
SignalPerfect Circuitry Yes
Fuseless / Auto Resettable Yes
Clamping Level 260v Telco/ 8v LAN
Capacitance 30pf (approx.)
Suppression Modes Metallic & Longitudinal
Wires Protected Pins 4,5 Telco/ Pins 1, 2, 3, & 6 LAN
Connectors Tel RJ-11, LAN RJ45
COAX SPECIFICATIONS
Antenna/Cable Lines Protected 2
Antenna/Cable Clamping 1.4V
Antenna/Cable Attenuation (5MHz-950MHz) <1dB
Satellite Lines Protected 2
Satellite Clamping 27V
Satellite Attenuation <1 dB from 950MHz-2.05GHz
Coax Connectors Female
|

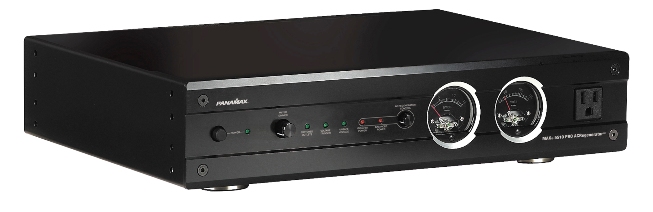

M5510-PRO
11-Outlet Selectable Balance/Isolated
Power Output Isolation Transformer
US$ 939.67
|
|
- FEATURES
Tri-Power Filtration System
Four AC outlets provide either Isolated or Balanced power for digital source
components, such as DVD or CD players. Four more outlets use separate balanced
double L" filtration circuits to eliminate EMI/RFI for analog components.
Finally, two inductorless, high-current outlets provide clean unimpeded power
for amplifiers or powered subwoofers.
Home Automation
RS-232 Interface allows automation systems to control the power state of
connected equipment and program power cycles for components like satellite
receivers which may lock up after downloading software updates.
Patented Over/Undervoltage protection
A power monitoring system that acts as a gate to prevent unsafe voltages
from damaging sensitive electronic equipment. It automatically detects a prolonged
over or undervoltage condition and disconnects the power to equipment, then
reconnects it when the power returns to a safe level. This special circuitry
acts as a gate to prevent unsafe voltages from damaging sensitive equipment.
WARRANTIES
$5,000,000 Connected Equipment Protection Policy
Panamax will protect your equipment or we will repair or replace up to $5,000,000!
3 Year Product Warranty
The surge protector shall be free of any defects in design, materials, or
workmanship, and Panamax will repair or replace any defective product up to
three years from the purchase date.
AC SPECIFICATIONS
Protect or Disconnect Circuitry Yes
Thermal Fusing Yes
Catastrophic Surge Circuit Yes
Single Pulse Energy Dissipation 2100 Joules
Spike Capacity 90,000A
EMI/RFI Noise Filtration 60dB-120dB
Line Voltage 120VAC, 50/60 Hz
Clamping Level (TVSS Voltage) 330V
Initial Clamping Level 200V
Overvoltage Shutoff 134VAC
Undervoltage Shutoff 95VAC
Protection Modes L-N, N-G, L-G
Maximum Current Rating 15A (1800W)
Response Time <1ns
PRODUCT FEATURES
Number of Outlets 11
Always On Outlets up to 9
Switched Outlets up to 4
Delayed Outlets 2
Cord Length 10 ft.
Connections Straight
Length 12" Width 17" Height 3.5" Weight 33 lbs.
TELCO SPECIFICATIONS
SignalPerfect Circuitry Yes
Fuseless / Auto Resettable Yes
Clamping Level 260v Telco/ 8v LAN
Capacitance 30pf (approx.)
Suppression Modes Metallic & Longitudinal
Wires Protected Pins 4,5 Telco/ Pins 1, 2, 3, & 6 LAN
Connectors RJ-11/45
COAX SPECIFICATIONS
Antenna/Cable Lines Protected 1
Antenna/Cable Clamping 1.4v
Antenna/Cable Attenuation <1 dB up to 950 MHz
Satellite Lines Protected 2
Satellite Clamping 27v
Satellite Attenuation <1 dB from 950MHz-2.2GHz
Coax Connectors Female
RCA SPECIFICATIONS
RCA Clamping 6.5v
RCA Protection Modes Signal/Sheath to Ground
RCA Wires Protected 5 wires
RCA Attenuation <0.06dB
RCA Connectors Audio (phone) Jacks
|
7500-PRO
11-Outlet Max 7500-PRO Series
for Home Theater Power Management
US$ 1349.95
|
|
FEATURES
Remote diagnostics (IP-ready with optional Ethernet card)
Ground Isolation - Advanced Video Filtration Voltage regulation and Balanced
Power
Automatic Voltage Monitoring (AVM)
Satellite (SAT) and Cable Access Television (CATV) protection
Telephone (TEL) and Local Area Network (LAN) protection
WARRANTIES
$5,000,000 Connected Equipment Protection Policy
Panamax will protect your equipment or we will repair or replace up to $5,000,000!
3 Year Product Warranty
AC SPECIFICATIONS
Protect or Disconnect Circuitry Yes
Thermal Fusing Yes
Catastrophic Surge Circuit Yes
Single Pulse Energy Dissipation 2670 Joules
Spike Capacity 162,000A
EMI/RFI Noise Filtration 100dB (100kHz-2MHz)
Line Voltage 120VAC, 60 Hz
Clamping Level (TVSS Voltage) 330V
Initial Clamping Level 200V
Overvoltage Shutoff 142V+/-5V
Undervoltage Shutoff 90V+/-2V
Protection Modes L-N, N-G, L-G
Maximum Current Rating 15A (1800W)
Response Time <1ns
PRODUCT FEATURES
Number of Outlets 11
Always On Outlets up to 11
Switched Outlets 4
Delayed Outlets up to 6
Cord Length 10 ft.
Connections Straight
Length 12.75" Width 17" Height 3.5" Weight 36 lbs.
TELCO SPECIFICATIONS
SignalPerfect Circuitry
Fuseless / Auto Resettable Yes
Clamping Level 260v Telco/ 8v LAN
Capacitance 30pf (approx.)
Suppression Modes Metallic & Longitudinal
Wires Protected Pins 4,5 Telco (1 In 2 Out)/ Pins 1, 2, 3, & 6 LAN
Connectors Tel RJ-11, LAN RJ45
AGENCY & WARRANTY
Agency Approval
Product Warranty Length 3 Years
Connected Equipment Policy Length Lifetime
Connected Equipment Policy Amount $5,000,000
Lightning Protection Yes
COAX SPECIFICATIONS
Antenna/Cable Lines Protected 2
Antenna/Cable Clamping 1.4V
Antenna/Cable Attenuation <1 dB up to 950 MHz
Satellite Lines Protected 2
Satellite Clamping 25V
Satellite Attenuation <1 dB from 950MHz-2.05GHz, <2.4 dB @ 2.2GHz
Coax Connectors Female |

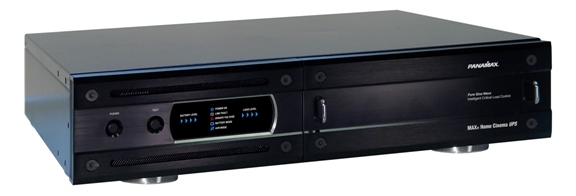

M-1500UPS
High Performance Uninterruptible
Power Supply Designed Specifically for Home Cinema
US$ 626.07
|
|
FEATURES
1500VA Rating (1000W)
Learning IR Function and Critical Load
Panamax's Patent-Pending Learning IR Function lets you program the UPS to
send standby or shut-down commands to components such as DLP ceiling projectors.
Critical Load Status Outlets for equipment like Digital Video Recorders or
components with volatile memory settings.
RS232 Interface
Provides programming control and interface for home automation systems or
home theater personal computer.
Noise Filtration/Protection
Superb noise filtration is combined with our patented over/under voltage
protection circuitry.
WARRANTIES
3-Year Product Warranty
AC SPECIFICATIONS
Protect or Disconnect Circuitry Yes
Thermal Fusing Yes
Catastrophic Surge Circuit Yes
Single Pulse Energy Dissipation 1650 Joules
Spike Capacity 52,000A
EMI/RFI Noise Filtration 50 dB (100kHz-1MHz)
Line Voltage 120VAC, 50/60 Hz
Clamping Level (TVSS Voltage) 330V
Initial Clamping Level 141V RMS/200V Peak
Overvoltage Shutoff 144V+/-8V
Undervoltage Shutoff 90V+/-6V
Protection Modes L-N, N-G, L-G
Maximum Current Rating 15A (1800W)
Response Time <1ns
PRODUCT FEATURES
Number of Outlets 6
Always On Outlets
Switched Outlets 6 total (2 assigned critical load)
Delayed Outlets
Cord Length
Connections
Length 15.3"
Width 17"
Height 3.5"
Weight 58 lbs.
TELCO SPECIFICATIONS
SignalPerfect Circuitry Yes
Fuseless / Auto Resettable Yes
Clamping Level 260v
Capacitance 30pf (approx.)
Suppression Modes Metallic & Longitudinal
Wires Protected 1 pair, (4,5)
Connectors RJ-11/45
AGENCY & WARRANTY
Agency Approval cULus
Product Warranty Length 3 Years
Connected Equipment Policy Length
Connected Equipment Policy Amount $
Lightning Protection Yes |
