Buffered loop outputs allow routing of the stereo inputs to an additional power amplifier or surround sound processor without signal loss or degradation.

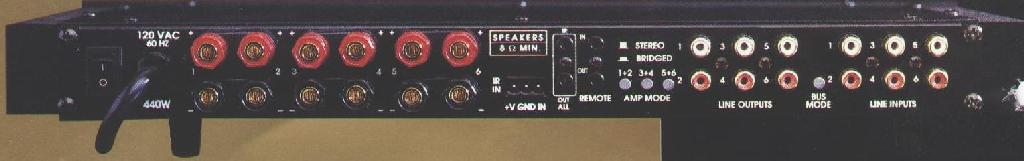

Three pairs of gold-plated, five-way speaker binding posts make it easy to connect multiple speakers. The remote trigger input mutes the amplifier when the preamp is turned off. Gain pots for each channel are accessible via the front panel.

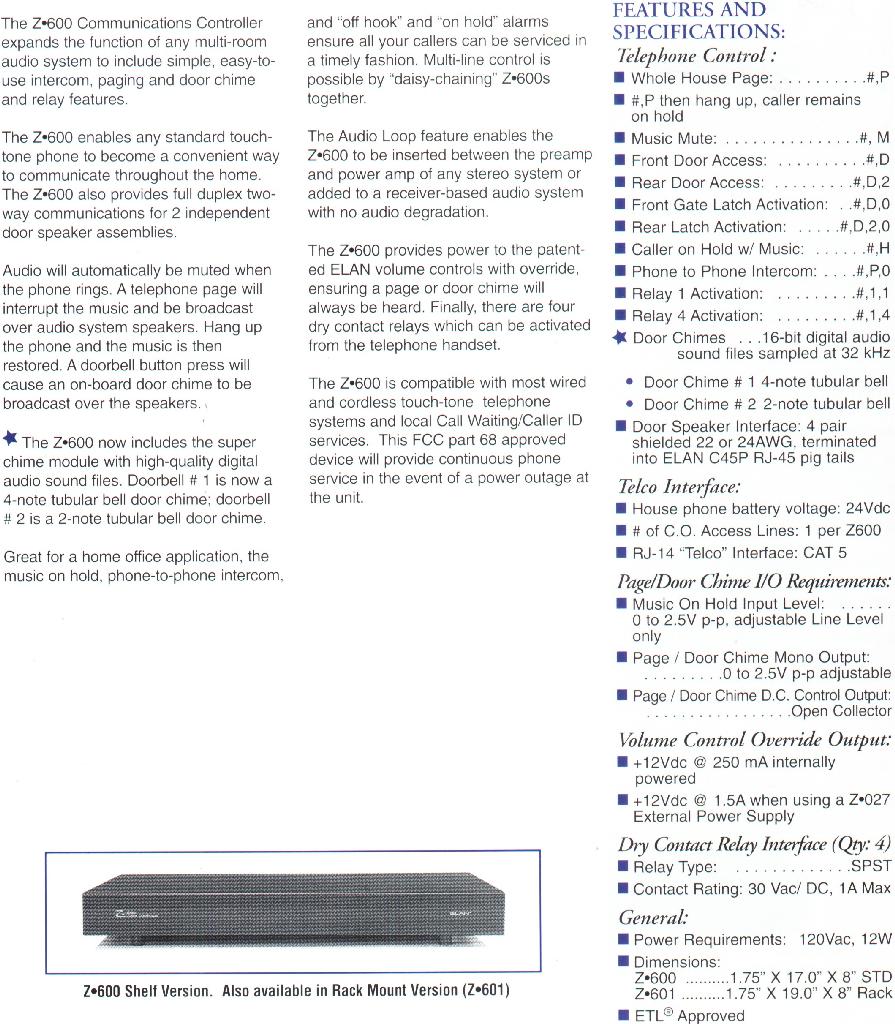

Additional features let homeowners control door/gate latches and activate relay-controlled devices such as lighting and garage door openers from any touchtone phone. Add up to two ELAN Door Stations and digital door chimes broadcast throughout the home.

And the Z·600 isn’t just for use with ELAN Z·Systems–it’s a stand-alone component that integrates into any receiver-based system in lieu of an old-fashioned intercom!


Each zone output level can be independently fixed, making the creation of sub-zones with volume controls as easy as flipping a dip switch. Six source-specific IR output ports allow multiple same-model sources to be used in the system without contention. An IR ALL port is also provided.

Zone-specific Bass, Treble, Loudness and Spatial Enhancement settings are stored in the Z·630’s non-volatile flash memory. The Do-Not-Disturb feature ensures that ELAN Page and Door Chime audio will be heard in a zone only if it’s desired.

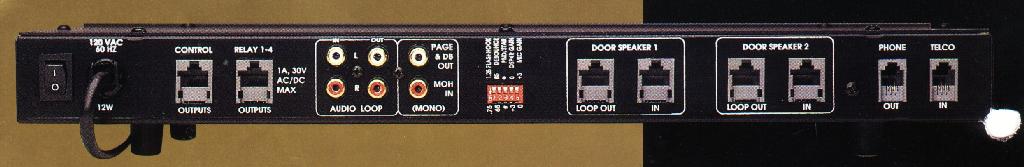

The Z·630 also provides a Music-on-Hold output signal and has a Page/Door Chime input interface to the Z·600 Communications Controller. The 12VDC remote output trigger synchronizes amplifiers and intelligent power managers to zone on/off, page and door chime activity in the system. The Z·630 will even wake up VIA!® Touchpanels whenever the doorbell button is pressed or a page is initiated.


The built-in IR connecting block can power up to four IRC3000/IRC2020/IR receivers and four IR2040 emittersÐgreat for standalone IR control applications! The remote trigger input mutes the amplifier when the preamp is turned off.

The ultra-high-efficiency toroidal transformer and 40,000 uF bulk storage capacitance ensures that peak current demands are always met.


This single-rack fan design will draw up to 150 cubic feet of air per minute. Dual 12VDC brushless motors maintain whisper quiet operation without commutator brush noise feeding back into the 120V circuits.

Temperature-sensitive speed control provides just the right amount of cooling at just the right times, thus minimizing background fan noise. The remote trigger input turns the fan on and off when needed. The trigger loop output can be daisy chained to additional triggerable devices or Z·FANs, and the two-minute turn off delay circuit prevents heat build up in the rack once the equipment has been turned off.
 Temperature-sensing dual 12VDC brushless fan design
 Flow Rate: Variable, up to 150 cu. ft. per minute
 Remote Trigger: 5 to 24V AC or DC
 Two-minute turn-off delay
 +12VDC@0.1A trigger loop output
 Front panel power and “Fan On” LEDs
 Power Requirements: 120VAC, 12W
 Dimensions:
 Z·FAN2—1.75" X 17.0" X 8" STD
 Z·FAN2R—1.75" X 19.0" X 8" Rack Mount
