Price
|
Product Shot
Click for larger
|
Description
|
Retail
Price
|

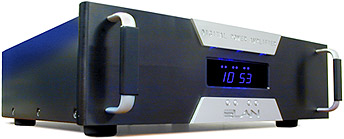

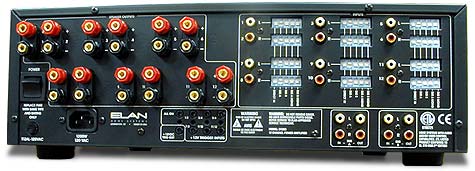

D1200
Class T 12 Channel Digital
Amplifier
US$ Call
|
Electronics House 2004 Product of the Year
2003 EXC!TE Award WINNER
2003 Innovations Award WINNER
|
Class T 12 Channel
Digital Amplifier - State-of-the-art Class-T Digital Technology
- Front
panel digital gain control, signal presence, clip LED indicators
- ACEª
technology (Automatic Clip Eliminator)
- Buffered
Line Level Outputs
- Low heat/high
efficiency
- A/B bus
inputs
- Stereo/mono
configurable
- Input
configurable dip switches
- Gold-plated
five-way binding posts
- Three
rack spaces high
- New D
Series styling
- Output Power:
12 x 100WRMS @ 4 Ohms per Channel
- Voltage Gain
(Av): 0 to 30, adjustable
- Remote
Trigger Input: 5-24V AC or DC
- Trigger
Loop Output: +12Vdc @0.1A
- Freq Resp.:
20 Hz to 20KHz -.3 dB into 8 ohms
- Full Power
Bandwidth: 10 Hz to 50KHz
- Signal
to Noise: >110dB (A-weighted)
- Channel
Separation: >-70 dB @ 1 KHz
- THD: <
0.04 %
- Intermodulation
Distortion: < -90 dB
- Slew Rate:
> 20V/ microseconds
- Input
Impedance: 49K ohms
- Inputs:
Gold RCA Phono Jacks
- Outputs:
Gold 5-Way Binding Posts
- Power
Requirements: 120VAC, 1500W
- Dimensions:
5 .25" X 17.0" X 15"
- Weight:
45 lbs.
- ETL®
and CE® approved
|
$2200 |

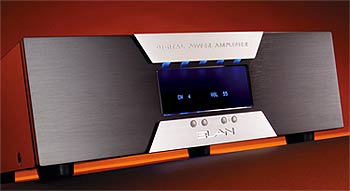

D1650
Class T 16 Channel Digital
Amplifier
US$ Call
|
|
Class T 16 Channel
Digital Amplifier - State-of-the-art Class-T Digital Technology
- Front panel
digital gain control, signal presence, clip LED indicators
- ACEª technology
(Automatic Clip Eliminator)
- Buffered Line
Level Outputs
- Low heat/high
efficiency
- A/B bus inputs
and Outputs
- Stereo/mono
configurable
- Input configurable
dip switches
- Gold-plated
five-way binding posts
- Three rack spaces
high
- New D Series
styling
- 60WPC x16 @
4 ohms, 45 WPC RMS @ 8 Ohms
- Voltage Gain
(Av): 0 to 30, adjustable
- Remote
Trigger Input: 5-24V AC or DC
- Trigger
Loop Output: +12Vdc @0.1A
- Freq Resp.:
20 Hz to 20KHz -.3 dB into 8 ohms
- Full Power
Bandwidth: 10 Hz to 50KHz
- Signal
to Noise: >102dB (A-weighted)
- Channel
Separation: >-70 dB @ 1 KHz
- THD: <
0.04 %
- Intermodulation
Distortion: < -90 dB
- Slew Rate:
> 20V/ microseconds
- Input
Impedance: 49K ohms
- Inputs:
Gold RCA Phono Jacks
- Outputs:
Gold 5-Way Binding Posts
- Power
Requirements: 120VAC, 1500W
- Dimensions:
17" Wide" X 5-13/16" High" X 17" Deep
- Weight:
50 lbs
ETL®
and CE® approved
|
$3500 |
<
>
