The Image line of in-wall and ceiling speaker systems is the recipient of numerous design and engineering awards since its conception, including the prestigious "1998 CEMA Design and Engineering Excellence Award" and the "2000 Design and Engineering Showcase Award:, Just to name a few.

Image speaker systems deliver an unmatched performance, that's no accident. It is the result of integrating technology's "best" into the design: Platinum coated phase plug for extended mid band. Overdrive, oversized high temperature aluminum voice coil (1.5"). "Clip detect" protection circuitry. In-door/out-door capability, and much more.

LightAV.com

Price

Product Shot

Click for Larger Picture

Description

Retail

Price

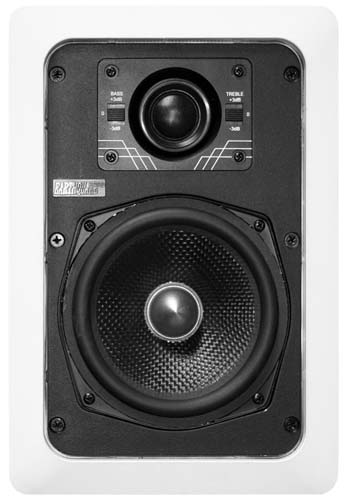

Image 5
5.25" 2 Way Audiophile In-wall Speaker

US$ Call

Frequency response 20Hz-22kHz
Impedance 8 Ohm
Recommended power 5-120 Watts
Sensitivity 91 dB
Drivers 5.25" woofer, 1.5" voice coil.
1" Pivoting Tweeter
Cutout dimensions 9 3/4" x 6 1/4"
Frame Dimensions 11 X 7-1/2
Filter Network 2-Way Hp/LP 2.5kHz

$149.95

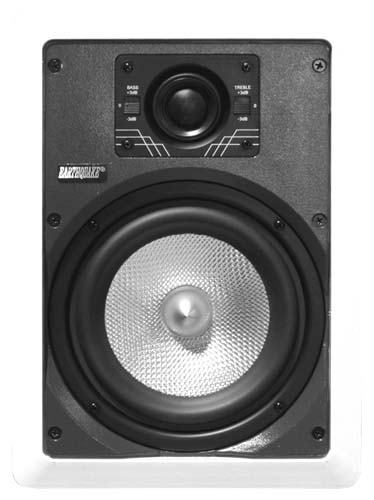

Image 6
6.5" 2 Way Audiophile In-wall Speaker

US$ Call

Frequency response 20Hz-22kHz
Impedance 8 Ohm
Recommended power 5-175 Watts
Sensitivity 90 dB
Drivers 6.5" woofer, 1.5" voice coil.
1" Pivoting Tweeter
Cutout dimensions 10-3/4" x 7-3/8"
Frame Dimensions 12 X 8-3/4
Filter Network 2-Way Hp/LP 2.5kHz

$169.95

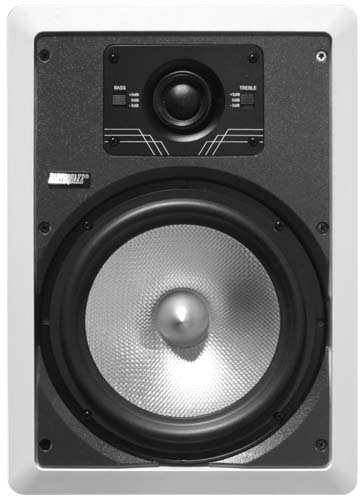

Image 8
8" 2 Way Audiophile In-wall Speaker

US$ Call

Frequency response 20Hz-22kHz
Impedance 8 Ohm
Recommended power 5-250 Watts
Sensitivity 89 dB
Drivers 8" woofer, 1.5" voice coil.
1" Pivoting Tweeter
Cutout dimensions 12-7/8" x 8-7/8"
Frame Dimensions 14-1/8 X 10-1/8
Filter Network 2-Way Hp/LP 2.5kHz

$199.95

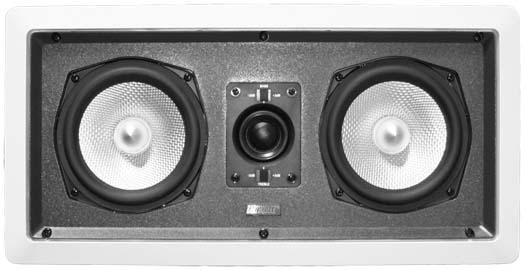

Image C25
Dual 5.25" 2 Way Audiophile In-wall Center or LCR Speaker

US$ Call

Frequency response 20Hz-22kHz
Impedance 8 Ohm
Recommended power 5-400 Watts
Sensitivity 90 dB
Drivers Dual 5.25" woofer, 1.5" voice coil.
1" Pivoting Tweeter
Cutout dimensions 16" x 7-3/8"
Frame Dimensions 17-5/8 X 8-3/4
Filter Network 2-Way Hp/LP 2.5kHz

$2850

Image 846
8"/4X6"/1" 3 Way Audiophile In-wall Speaker with back box

US$ Call

100% carbon fiber cones on both the 8”woofer and the 4x6” midrange.
The fiber cone weave is sturdy yet very light, which makes the IW-846 respond quickly to musical notes without any delays, and without cone distortion.
1.5” four layers, high temperature voice coil, combined with the patented XLT basket design.
1” high definition titanium tweeter with neodymium magnet.
The corrective ON-AXIS positioning system allows the user to position / point the tweeter where it is needed for optimum surround images.
4” x 6” midrange for wider vocal dispersion.
Frequency response 20Hz-22kHz
Impedance 8 Ohm
Recommended power 5-500 Watts
Sensitivity 90 dB
Drivers 8" woofer, 1.5" voice coil.
1" Pivoting Tweeter
4 X 6 " Midrange
Cutout dimensions 15-3/4" x 10-1/2"
Frame Dimensions 15-3/4 X 10-1/2
Filter Network 2-Way Hp/LP 2.5kHz

$579.95

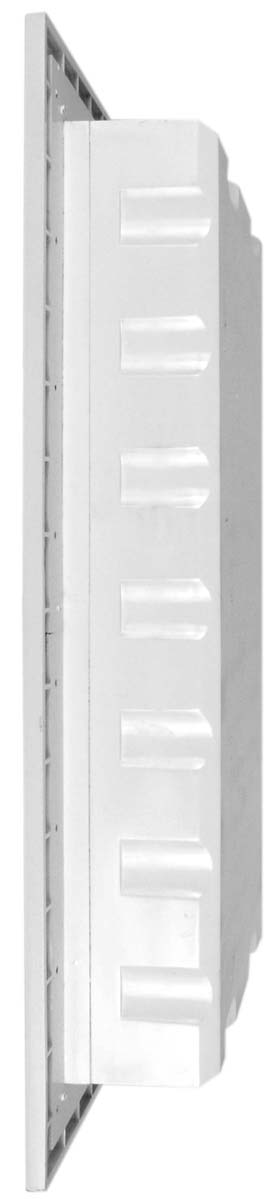

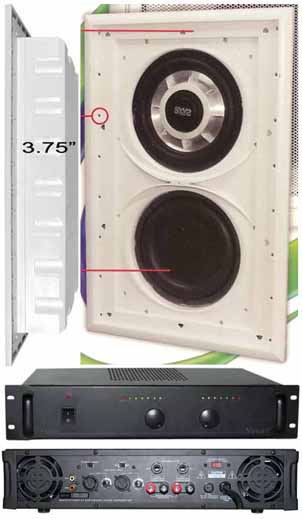

Thor
Dual 10" In-Wall Subwoofer
with 600W Amplifier

US$ Call

The "THOR" In-wall subwoofer is shipped with one metal grill, and two custom cloth grill options. This allows installers and consumers to come to conclusions regarding color and fabric that can literally match any decor in the home.

This unique subwoofer is also shipped with a 2-Channel 600-watt amplifier that is matched for optimum system performance. The 2-channel feature, allows the consumer to choose between one or two subwoofers. Earthquake recommends two woofers so that full potential of the system stage setting capabilities will be experienced.

Why is THOR the only true in-wall subwoofer?

When it comes to home theater any thing under 10 inches can't seriously be considered high-end. A true theater must be able to produce sub harmonics that can be felt when called on to go down. Imitation in-wall subwoofers produce more resonance than true bass reproduction, they can't be felt and are a hassle to install.

Earthquake Sound's THOR in-wall is designed with sound quality, sound staging and ease of installation in mind. The engineers at Earthquake approached this project at multiple angles so that the product would be ergonomic from install to finish making it a true marvel.

THOR is capable of producing sub harmonics down to 19Hz and has next to zero resonance thanks to it's muscular design. The back plate is filled with fiber cloth to absorb some of the impact but the true technology comes from the internal design. Each screw that surrounds the driver and passive radiator is interlocked with a connecting brace that protrudes from the back plate for added support. The bottom of the back plate and back side of the front panel are lined with x-crossing bridges that create a stability un-heard of at the in-wall level.

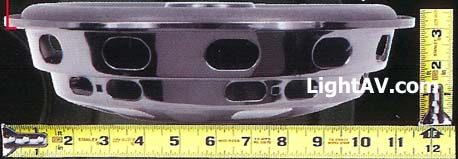

Not only is the enclosure structure true unique and patented, the driver in side may be the main attraction. The SWS-10" (Shallow Woofer System) is not the only shallow woofer made, but it is the only patented shallow woofer that produces effective excursion and works well for the purpose that it is intended to serve. The purpose of this technologically advanced speaker is to deliver bass from a shallow place, this means that it caters to people who are limited on space and want a great sounding system whether it be in their home or mobile application.

Installing THOR is easier than any in-wall subwoofer that you'll find and we can guarantee this. With other in-wall subs you are required to use brackets and put screws in at uncomfortable and awkward angles. So in the end you the installer would have to pay for engineers who have no imagination. With THOR there are no brackets you literally screw the enclosure into the studs from the front, eliminating all hassle. The enclosure drops right into a standard 2x4 wall and screws into any retrofit or existing home leaving you with only one step and that is to wire it up which is also made easy with it's spring loaded terminals.

Earthquake is extremely proud of their latest addition to the ever expanding home audio line. We hope that our efforts will please all audiophiles from the installer to the consumer. We feel that our in-wall subwoofer is superior to all others and offers many features that are beneficial to installation and modern living requirements.

Amplifier 2-Channel, bridgeable / Class "A/B" 600-Watt Max
