Price
|
Product Shot
Click for Larger
|
Description
|
Retail
Price
|
|
CM-500
US$ Call
|
|
- Frequency response 68Hz-20kHZ
- Impedance compatible with
8 Ohm output
- Recommended power 5-150
Watts
- Drivers 5.25" woofer, 1"
voice coil.
- 0.5" mylar tweeter, Neodymium
magnet
- Diameter 6 1/2"
- Filter Network 2-Way Hp/LP
2.5kHz
|
$119.95 |
|
CM-600
US$ Call
|
|
- Frequency response 52Hz-21k
- Impedance compatible with
8 Ohm output
- Recommended power 5-200
Watts
- Drivers 6.5" woofer, 1"
voice coil.
- 0.75" titanium tweeter,
Neodymium magnet
- Diameter 8"
- Filter Network 2-Way Hp/LP
2.5kHz
|
$139.95 |
|
CM-800
US$ Call
|
|
- Frequency response 36Hz-21kHz
- Impedance compatible with
8 Ohm output
- Recommended power 5-250
Watts
- Drivers 8" woofer, 1" voice
coil.
- 1" titanium tweeter, Neodymium
magnet
- Diameter 9 1/2"
- Filter Network 2-Way Hp/LP
3kHz
|
$199.95 |
| |
|
- Designed like no other,
the IQ speakers deliver in both quantity and quality. Aluminum Electroplated
carbon fiber cones with over hung butyl surrounds maximize piston area producing
louder bass effects. Aluminum electroplating the carbon fiber also adds
strength, life and faster more accurate overall performance. Another hot
feature is the dual rotating neodymium tweeters that give you line action
high frequency response and wider sound dispersion, eliminating diluted
images and hot spots. IQ's sophisticated and elaborate crossover networks
use neither 100 nor 200 but 250-Volt Mylar caps, delivering performance
well and above the needed linear response. Covered with anti rust 16-gauge
powder coated aluminum grilles, these speakers are ideal for high humidity
areas such as bathrooms, indoor pools and atriums. Each IQ speaker has three-way
switches that can correct human ear imperfections as well as iron out imperfections
in your system. All of these great features leave you with just one thing
left to do; put the trusted Earthquake Sound everywhere you live.
- Singles have +/- 3dB tweeter
control
- Duals have +/- 3dB tweeter
and woofer controls
- Gold plated spring loaded
terminals
- Aluminum electroplated
glass fiber cones
- 3/4" neodymium magnet dome
tweeter with "On-Axis" -
- 180 degree positioning
for better staging and imaging
- High roll surround / long
excursion
- Easy install "Turn-N-Lock"
mechanism
- Easy connect spring loaded
binding posts
- Poly switch for tweeter
protection
- Over hung butyl rubber
surround
- 250-Volt Mylar Caps
- Elaborate filter network:
- - High pass 12dB/Oct.
@ 2kHz
- - Low pass 12dB/Oct.
@ 2kHz
|
$199.95 |
CM-6Dual

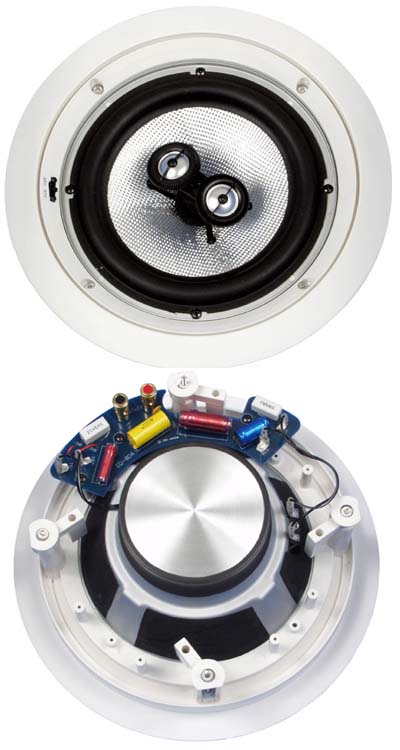

CM-6S
US$ Call
|

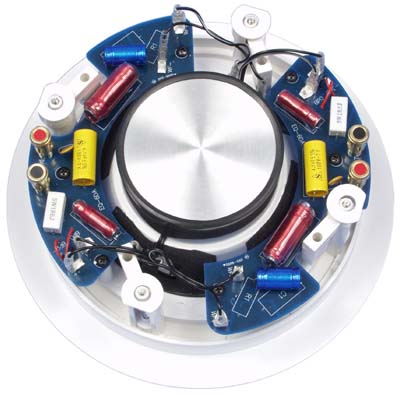

Dual Voice Coil Back
|
- Model CM-6S / CM-6Dual
- Frequency Response 35-22kHz
- Sensitivity 90dB@1W/1M
/ 89dB@1W/1M
- Nominal Impedance 8-Ohm
/ 2x8-Ohm
- Power Recommendations 300
Watts s
- Filter Network 2-Way HP/LP
2.5kHz
- Woofer One 5 1/4" One 6
1/2"
- Tweeter Two 3/4" Pivoting
Tweeters
- Grill Frame Dimension 9
7/8" / 250.825mm
- Cut Out Dimension 8 1/8"
/ 206.375mm
- diameter 8 1/8" / 206.375mm
- Finish White / Paintable
|
$199.95 |

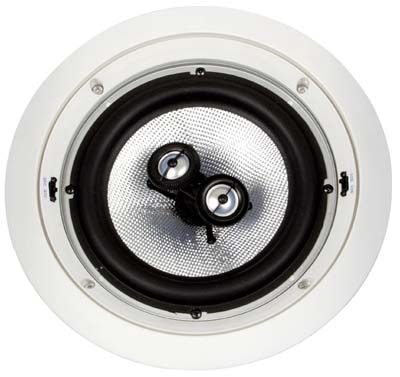

CM-8Dual
CM-8S
US$ Call
|

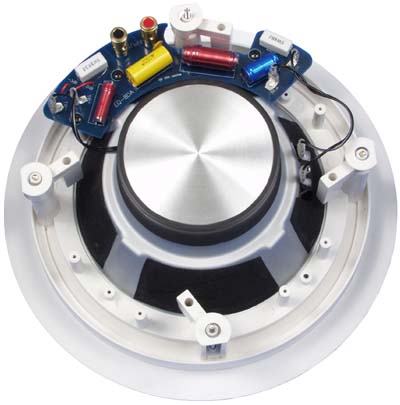

Single Voice Coil Back
|
- CM-8S CM-8Dual
- Frequency Response 30-22kHz
- Sensitivity 90dB@1W/1M
- Nominal Impedance
8-Ohm or 2x8-Ohm
- Power Recommendations 400
Watts
- Filter Network 2-Way HP/LP
3kHz
- Woofer One 8"
- Tweeter Two 3/4"
Pivoting Tweeters
- Grill Frame 11 3/8"
/ 288.925mm
- Cut Out Dimension
9 5/8" / 244.475mm diameter
- Finish White / Paintable
|
$199.95 |
