LightAV.com
Price
|
Product
Shot
|
Description
|
Retail Price
|

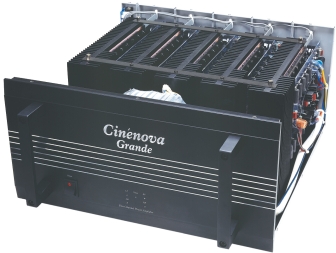

Cinenova
Grande
3-Channel Amplifier
US$ Discontinued
|
|
- Number of
channels: Three (3) discrete monaural blocks.
- Power rating per
channel (8-ohm load), all channels driven: 300 watts. (4-ohm load), all
channels driven: 600 watts. (2-ohm load), all channels driven: 1000
watts.
- Frequency
response measured at 1 watt with +/-0.1 dB: 20 Hz to 20 kHz
- Channel
separation:
greater than 95 dB
- Maximum input
voltage: 1.9 volts
- Input impedance:
27,000 ohms
- Total harmonic
distortion -THD: 1 kHz, 8-ohm load: 0.001% 20 kHz, 8-ohm load: 0.003%.
1 kHz, 4-ohm load: 0.003% 20 kHz, 4-ohm load: 0.006% 1 kHz, 2-ohm load:
0.005% 20 kHz, 2-ohm load: 0.006%
- Signal to noise
ratio: @ 1 kHz, 112 dB @ 5 kHz, 111 dB @ 10 kHz, 110 dB
- High-pass / low
pass variable filter, range 20 Hz to 5 kHz (one/ channel).
- High-pass/Full
range/Low pass operation via 3-way switches (one switch per
channel).
- Dimensions:
9.25" x
18" x 21" (height x width x depth)
- Gross Weight :
119 lbs
|
$3750 |
Cinenova Grande
5-Channel Amplifier
|
|
- EZXS amplification blocks:
Detachable monaural amplification blocks (15A capability), totally
independent;
each with its own power supply circuitry and pre-amplification stage.
For
ease of service, each block can be individually removed and serviced,
without
the need to dismantle the entire amplifier.
Fully buffered variable filters:
Each block features a built-in low pass/high pass variable filter; the
fully
buffered filter has a range of 20 Hz to 5 kHz. A 3-way switch controls
the
operation of the filter; with a simple flick of the switch, each amp
can
run in full range, low pass, or high pass mode.
Fault indicators: Each block is equipped with two (10 amperes) fuses
designed
to protect and monitor the voltage of operating rails (+/-). Each fuse
carries
its own fault LED indicator that illuminates when the fuse is burnt.
High-pass / low pass variable filter: range 20 Hz to 5 kHz (one/ per
channel)
High-pass / Fullrange / Low: pass: operation via 3-way switches(one
switch per channel)
Special Features
Feartures
Modular, monoblock configuration
4 kVa transformer that has seven secondaries
XLR and RCA Input Jacks
Built-in Adjustable Crossover for Bi-amping
7-Channels
7-way binding posts
FFI Fused Fault Indicators
EZXS amplification blocks
- Number of
channels: five (5) discrete monaural blocks
- Power rating per
channel (8-ohm load), all channels driven: 300 watts. (4-ohm load), all
channels driven: 600 watts. (2-ohm load), all channels driven: 1000
watts
- Frequency
response measured at 1 watt with +/-0.1 dB: 20 Hz to 20 kHz
- Channel
separation:
greater than 95 dB
- Maximum input
voltage: 1.9 volts
- NOW with Balanced XLR inputs
- Input impedance:
27,000 ohms
- Total harmonic
distortion -THD: 1 kHz, 8-ohm load: 0.001%. 20 kHz, 8-ohm load: 0.003%.
1 kHz, 4-ohm load: 0.003%. 20 kHz, 4-ohm load: 0.006%. 1 kHz, 2-ohm
load: 0.005%. 20 kHz, 2-ohm load: 0.006%
- Signal to noise
ratio: @ 1 kHz, 112 dB @ 5 kHz, 111 dB @ 10 kHz, 110 dB
- High-pass / low
pass variable filter, range 20 Hz to 5 kHz (one/ channel)
- High-pass/Full
range/Low pass operation via 3-way switches (one switch per
channel).
- Dimensions:
9.25" x
18" x 21" (height x width x depth)
- Gross Weight :
141 lbs
- Home Theater Magazine Rating
June 2000 Issue
-
- WideScreen Review Article
- Home
Theater Magazine Review
|
$4750 |

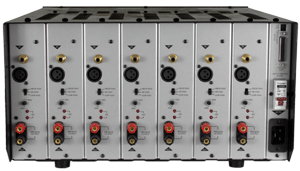

Cinenova Grande 7
7-Channel Amplifier
|
|
- EZXS amplification blocks:
Detachable monaural amplification blocks (15A capability), totally
independent;
each with its own power supply circuitry and pre-amplification stage.
For
ease of service, each block can be individually removed and serviced,
without
the need to dismantle the entire amplifier.
Fully buffered variable filters:
Each block features a built-in low pass/high pass variable filter; the
fully
buffered filter has a range of 20 Hz to 5 kHz. A 3-way switch controls
the
operation of the filter; with a simple flick of the switch, each amp
can
run in full range, low pass, or high pass mode.
Fault indicators: Each block is equipped with two (10 amperes) fuses
designed
to protect and monitor the voltage of operating rails (+/-). Each fuse
carries
its own fault LED indicator that illuminates when the fuse is burnt.
High-pass / low pass variable filter: range 20 Hz to 5 kHz (one/ per
channel)
High-pass / Fullrange / Low: pass: operation via 3-way switches(one
switch per channel)
Special Features
Feartures
Modular, monoblock configuration
4 kVa transformer that has seven secondaries
XLR and RCA Input Jacks
Built-in Adjustable Crossover for Bi-amping
7-Channels
7-way binding posts
FFI Fused Fault Indicators
EZXS amplification blocks
- Number of
channels: seven (7) discrete monaural blocks
- Power rating per
channel (8-ohm load), all channels driven: 300 watts. (4-ohm load), all
channels driven: 600 watts. (2-ohm load), all channels driven: 1000
watts
- Frequency
response measured at 1 watt with +/-0.1 dB: 20 Hz to 20 kHz
- Channel
separation:
greater than 95 dB
- Maximum input
voltage: 1.9 volts
- NOW with Balanced XLR inputs
- Input impedance:
27,000 ohms
- Total harmonic
distortion -THD: 1 kHz, 8-ohm load: 0.001%. 20 kHz, 8-ohm load: 0.003%.
1 kHz, 4-ohm load: 0.003%. 20 kHz, 4-ohm load: 0.006%. 1 kHz, 2-ohm
load: 0.005%. 20 kHz, 2-ohm load: 0.006%
- Signal to noise
ratio: @ 1 kHz, 112 dB @ 5 kHz, 111 dB @ 10 kHz, 110 dB
- High-pass / low
pass variable filter, range 20 Hz to 5 kHz (one/ channel)
- High-pass/Full
range/Low pass operation via 3-way switches (one switch per
channel).
- Dimensions:
9.25" x
18" x 21" (height x width x depth)
- Gross Weight :
160 lbs est
- "An amplifier
like the CInenova Grande is the kind of component that other
manufacturers fear, neighbors dread, and men lust after."
"This amp brings new
meaning to the phrase "Gentle Giant".
"The only drawback
I can foresee to buying this amplifier is perhaps having to cut the
roof
off your house and rent a crane to lower it into your theater."
"Highlights:
-unmatched output
-Exceptional sound
quality
-Unbelievable
performance for the price."
Home Theater magazine,
June 2000.
Now available with
XLR Balanced Input and 7 hard core channels to work with.
Home Theater Magazine Review
Available in Black
or Platinum
|
$6000 |
|

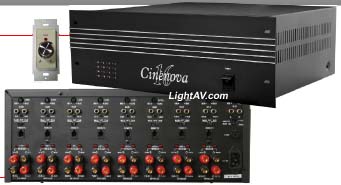

Cinenova Grande 16
16-Channel Amplifier
|

|
Features:
Eight Independant
level controls Included
Bus operation
Bridgable channels
Gool Post Terminals
Rack Mountable
Modular design
High Power Handling
Multiple Applications
Multiple input signals
Eight individual power
supplies
Specifications:
16 Channels
100 Watts RMS per
channels @ 8 Ohms all channels driven
Maximum Input voltage
100mV-2V (RMS)
Total Harmonic
Distortion (THD) .01%
Dimensions: 6.5" X
19.75" X 17"
Frequency Response
@ 1 Watt with +/- 20Hz to 20kHz
Channel Seperation:
greater than 95 dB
Input Impedance 19
Kilo-ohms
Signal to noise ratio
measured: 103dB
Weight : 44 Lbs

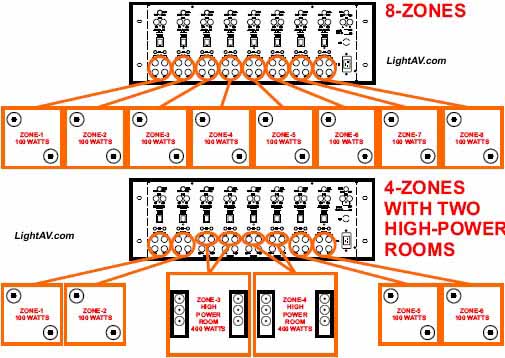

Hookup Configurations:
|
$3499 |
