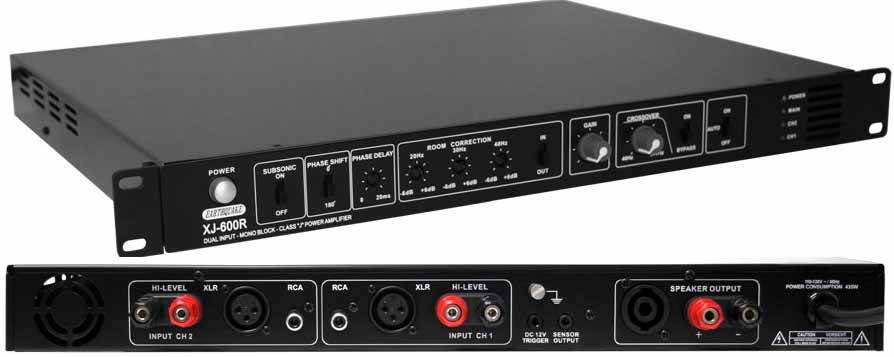

XJ-600R
1 X 300 Watts RMS
at 8 Ohms, Rack Mount, XLR Inputs
S$ 749.95
|
|
- Free Domestic Shipping!!
Earthquake Sound Corporation, is proud to introduce a whole new breed
of
home audio power amplifiers.
Companies claim that they have room correction built into their
amplifiers,
which in fact is only level adjustment by volume. Earthquake Sound's XJ
line
of amplifiers deliver the tools you need to correctly adjust a room to
precision
audiophile status.
Most amplifiers use a simple equalization method that does not correct
a
rooms "phase" related problems. Earthquake's new XJ amps have true room
correction
that take into consideration: time/reflection and refraction. These new
state
of the art amplifiers first fix arrival time then equalization. While
others
try to equalize rooms by adjusting the volume/ can they call that room
correction?
The new 99% efficient XJ earthquake amplifiers address the actual phase
correction
problem along with the room EQ.
Features
XLR / RCA and High-level input connections
Room equalization-20Hz, 30Hz, 40Hz
Room equalization IN/OUT
Subsonic filter - switchable
Phase shift - 0-180 and Variable phase delay
Channel and power status LEDs
Dual gains internally mixed
Music sensing ON/OFF
DC turn ON/OFF
Frequency Response +/- 0.5dB, 17Hz to 2kHz
Power Output
1 X 500 Watts RMS @ 2 Ohms
1 x 370 Watts RMS @ 4-Ohms
1 x 300 Watts RMS @ 8-Ohms
Signal to Noise Ration >89dB (balanced) 85dB (unbalanced) @ rated
power
Load Impdance 2 Ohms or greater
Slew Rate 50 Volts / Microseconds
THD <0.08%, (1W @ 4-Ohm)
Damping Factor >500
Power Requirements 110-120 VAC/60Hz
Dimensions H=1.7" x W=19" x D=14.5" / 44mm x 483mm x 367mm
Weight 18.04lbs. • 8.2Kg
Finish Flat Black
|
|

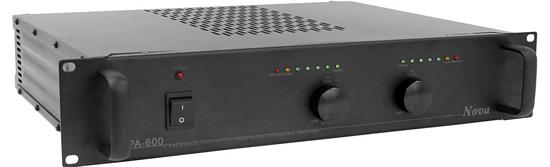

PA-600
2 Channel Full Range
Power Amplifier
US$ 599.95
|
|
Earthquake Sound's
PA-600 can be used in Stereo Mode as two separate power amplifiers,
each
capable of driving loads down to 2-ohms. Each channel operates
independently
and has its own input connectors, sensitivity level controls, signal
indicator
LEDS, limiter circuitry, fault protection circuitry, power amp, and
speaker
outputs.
Special Features
Features
Input Connections:
XLR, RCA, and 1/4" phone (tip/ring/sleeve), one per channel
Output Connections:
Binding posts & phone jacks
Cooling:
Variable speed forced air fan cooling rear/side intake, front exhaust
Mode Switches:
Mono bridge mode select & Limiter "on/off" switch
Protection Circuitry:
Short circuit, open circuit, RF burnout, over temp, speaker protection
relays,
turn on/off transient protection, DC protection and limiter circuitry.
PA-600
Frequency Response +/- 0.5dB, 20Hz to 20kHz
Power Per Channel
(8-ohm Stereo) 2 x 120 watts RMS @ 8-ohms (Stereo Mode)
Power Per Channel
(4-ohm Stereo) 2 x 200 watts RMS @ 4-ohms (Stereo Mode)
Power Per Channel
(2-ohm Stereo) 2 x 300 watts RMS @ 2-ohms (Stereo Mode)
Power Per Channel
(8-ohm Mono) 380 watts RMS @ 8-ohms (Mono Mode)
Power Per Channel
(4-ohm Mono) 560 watts RMS @ 4-ohms (Mono Mode)
Signal to Noise Ration >98dB ref 200 watts / 4-ohms (20kHz
equivalent
bandwidth)
Input Impedance 2-ohms or greater in stereo mode / 4-ohms or greater in
mono
mode
Channel Separation 100dB
Input Voltage (max) 1.5 Volts
Total Harmonic Distortion <0.05%, 20Hz to 20kHz
Damping Factor Typical 300 (1kHz, 8-ohms)
Power Requirements 110 VAC 60Hz, 750VA
100-120 VAC 50/60Hz, 750VA
220-240 VAC 50/60Hz, 750VA
Dimension 3 1/2" x 19" x 15 7/16" (HxWxD)
88.8mm x 482.6mm x 392mm
Weight 29 lbs.
Finish Black Finish
|
