Price
|
Product Shot
Click for Larger picture
|
Description
|
Retail
Price
|

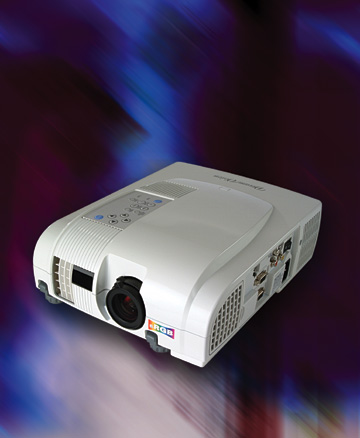

DV-LC5
US$ Call
|
|
HDTV compatible
Wide screen mode
Easy set up
Digital keystone correction
Proprietary color correction
system
Individual color adjustments
Back lit remote
Display Technology 0.7"
Polysillicon panel x 3
Panel Resolution 800 x 600 (Total
1,440,000 pixels)
Brightness 1100 lumens
Color 16,770,000 colors
Contrast Ratio 800 : 1
(On/Off)
Zoom / Focus Manual control
(Zoom ratio 1.2 : 1)
Screen Image size 40"
- 300" (100" = 3.79m)
Lamp Source 150W
Lamp mode ( standard or low
economy mode)
PC compatibility Resolution
; 640 x400 - 800 x 600 + Compressed 1024 x 768
Video compatibility NTSC
/ NTSC 4.43 / PAL including PAL-M, N) / SECAM / PAL-60 DVD(Component) /
HDTV(525p, 720p, 1080i)
Input terminal PC(RGB1)
; mini D-sub 15 pin x 1Video ; RCA x 1, S-VIDEO x 1 PC/Video Audio ; Stereo
RCA x 1
Output terminal RGB ;
mini D-sub 15 pin x 1
Communication terminal
RS-232C x 1 (Direct command is available., DIN 8pin)
Scanning rate [H] 15 -
69 kHz [V] 50 - 85 Hz
Audio Speaker 1 watt mono
Unique Features
Proprietary Color Uniformity correction system
Individual color adjustments
3D Gamma correction
RGB mode
Dual Lamp Mode
Digital Expand zoom
Digital Keystone Correction
Back Lit remote handset
Power Consumption
230W
Product Dimension
(WxHxD) 9 1/4 x 4 1/8 x 12 3/8 in
Product weight
3.0 Kg
Power requirement
AC 100 - 240 V / ±10%, 50/60Hz
Acoustic Fan noise
34 DB
Supplied Accessories
AC Power Cable: 2.9m
D-sub RGB cable: 1.8m
D-sub 15 pin / RCA cable (for Component connection)
RS-232C cable: 1.8m
RCA video cable ; 1.5m
Remote control
Soft Carrying Case
Lens cap
|
$3495 |
|
DreamWeaver 2
US$ Call
|
|
Projection system
New TI HD2+ Chip 12° LVDS
DMD
New Faroudja DcDi FLI2310 Enhancement
Carl Zeiss Projection Lens:
F/1.9,26.7 - 36.8mm focal length
Color Wheel: 7 segments (RGBRGBG),
5 x (9000rps, 300Hz, 6500K color temperature)
Resolution 1280 x 720
16/9
Contrast Ratio 2300:1
full on / full off
Lamp 220 Watt UHP (3000 hours
life time)
Brightness 1200 lumens Dual
Light Output mode with High bright mode (+20%)
Colors 16.7 millions simultaneously
displayable
Installation Front, Rear, Table,
Ceiling (Ceiling bracket in option)
Keystone Correction Digital
up to +/- 20° Vertical , +/- 9° Horizontal
Inputs
2 x components - gold RCA
1 x Component - 15-pin D Sub
2 x S-VHS - Mini Din 4-pin
1 x Composite Video - RCA
1 x DVI - M1-DA VESA
1 x HDTV Analog - 15-pin D Sub
1 x RS232 control - 9-pin D
Sub
1 x IR Repeater (Niles / Xantech
compatible) - 3.5 mm mini-jack
2 x 12 V trigger - 3.5 mm mini-jack
1 x USB
1 x Power supply
Video Compatibility
Component and RGB HDTV (720p,
1035i, 1080i, 1080p, 1080p)
Component EDTV (480p, 576p progressive
scan), SECAM: M, Component, composite and S-Video standard video.
(480i, 576i, 576i RGB SCART
with adapter, NTSC, NTSC M 4.43, PAL: B, G, H, I, M, N)
Available in Silver, White and
Black finish
|
$ |

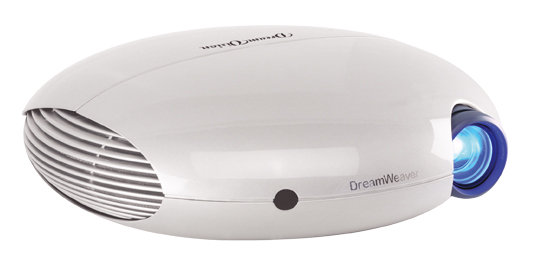

DreamWeaver 2
US$ Call
|
|
-
DreamWeaver II : Learning to dream
!
Weaver II represents DreamVision’s
soul and meaning. It takes the concept of a top high end digital Cinema
projector, and gives it an esthetic interpretation, modern and elegant.
This high performance and quiet
projector is available in 3 finishes : White, Silver and Black, for an
attractive price.
Highlights :
State of the art Design for
easy integration in every room style (available in 3 finishes : White,
Silver and Black).
True Wide PAL resolution (1024
x 576) from the Matterhorn DLP™ chip by TI for the best resolution match
for HD sources.
Carl Zeiss Designed Light Engine.
New DCDi™ from Faroudja with
better colors sharpness, a video noise reducer and a high quality built-in
Scaler.
8 selectable video inputs.
Invisible access to the keypad
board and connection board.
Projection system
New TI Matterhorn 12° DMD
Carl Zeiss Projection Lens:
F/1.9,26.7 - 36.8mm focal length
Color Wheel: 6 segments (RGBRGB),
5 x (9000rps, 300Hz, 6500K color temperature)
Resolution 1024 x 576 16/9
Contrast Ratio 1500:1 full on
/ full off
Lamp 200 Watt UHP (3000 hours
life time)
Brightness 1100 lumens
Colors 16.7 millions simultaneously
displayable
Installation Front, Rear, Table,
Ceiling (Ceiling bracket in option)
Keystone Correction Digital
up to +/- 20°
Inputs 2 x components - gold
RCA
1 x Component - 15-pin D Sub
2 x S-VHS - Mini Din 4-pin
1 x Composite Video - RCA
1 x DVI - M1-DA VESA
1 x HDTV Analog - 15-pin D Sub
1 x RS232 control - 9-pin D
Sub
1 x IR Repeater (Niles / Xantech
compatible) - 3.5 mm mini-jack
2 x 12 V trigger - 3.5 mm mini-jack
1 x USB
1 x Power supply
Video Compatibility Component
and RGB HDTV (720p, 1035i, 1080i, 1080p, 1080p-24Hz)
Component EDTV (480p, 576p progressive
scan), SECAM: M, Component, composite and S-Video standard video.
(480i, 576i, 576i RGB SCART
with adapter, NTSC, NTSC M 4.43, PAL: B, G, H, I, M, N)
|
$6995 |
|

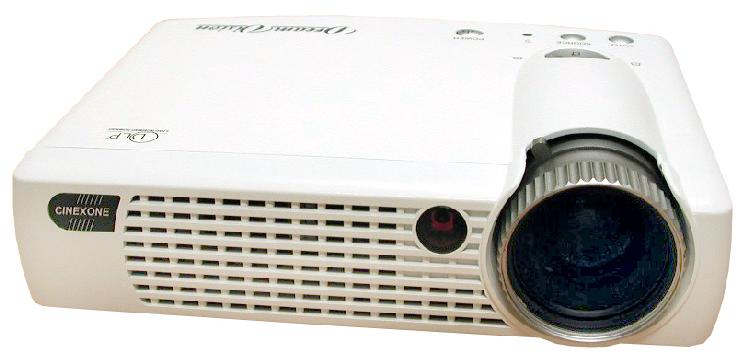

CineXone
US $Discontinued
|
|
-
The CineXone offers some valuable
features for Home Theater enthusiasts:
-
Super Compact portable design which
allows any kind of installation
-
Easy to use with its Keystone Correction
System
-
Very bright - 1000 lumens
-
Dream Vision color wheel - optimized
for Home Theater use
-
Perfect definition of white and
black levels with the DLP technology
-
Specifications
-
Display : Digital Light Processing
TM (DLP) Technology By Texas Instrument
-
Resolution : 1024 x 768
-
Dimensions : (WxHxD) 8 5/8
x 2 x 6 7/8 inches
-
Displayable colors : 16.7 Millions
-
Contrast ratio : 700:1
-
Aspect ratio : 4:3 and 16:9
-
Video compatibility : PAL, SECAM
and NTSC
-
Data compatibility : VGA, SVGA,
XGA, SXGA (compressed), HDTV
-
HDTV compatibility : 480p, 480i,
525p, 525i, 720p, 720i
-
Horizontal frequency : 20 KHz -
88 KHz
-
Vertical frequency : 10-100 Hz
-
Brightness : 1000 ANSI lumens
-
Lamp type : 120 W UHP User replaceable
-
Projection lens : 1:1.3 manual zoom
and focus
-
Projection screen size : 25" - 300"
diagonal
-
Throw distance : 4.92 - 32.8 ft
-
Digital keystone correction : adjustable
with IR
-
Inputs : Composite, S Video, HD15,
HD9
-
Weight : 3.5 lbs
-
Power supply : AC input 100 - 220V
50/60 Hz
-
Power consumption : 187 Watts at
normal operation
|
$4995 |
|

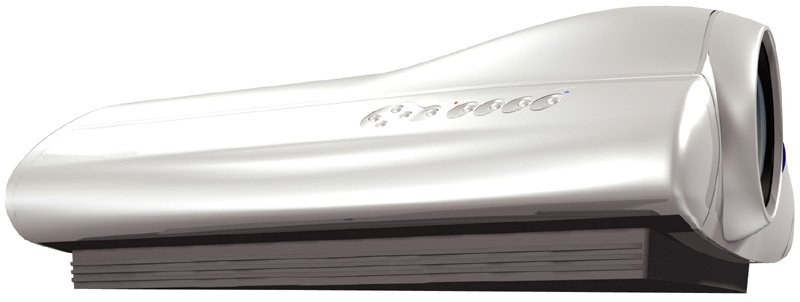

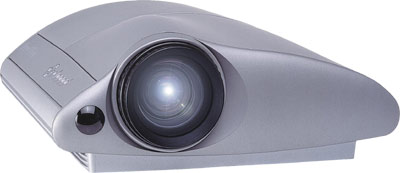

Cinema Ten Pro
US $Discontinued
|
|
-
XGA
-
State of the art video decoding
and de-interlacing
-
Full menu control for all video
controls (black level, white level, rgb colour balance, gamma etc.) for
all inputs are needed
-
Remote control of screen, up and
down (widescreen position from remote control)
-
Image (Widescreen) to be adjusted
horizontally in display matrix (top, middle and bottom)
-
Black frame on top/below Widescreen
image to be true black (blank curtain)
-
Carl Zeiss Manual zoom and focus
on 0,9" XGA
-
Digital Keystone correction (to
be controlled from remote and keyboard)
-
The full DMD Display shall be fully
utilised when showing scaled images
-
Automatic detection of all video
formats and film formats (2,35:1, 1,85:1 etc.)
-
Automatic detection of original
film mode
-
Interface HDTV, relevant standards
-
Advanced RS-232 communication
-
Programmable Remote Control, for
all the HT installation (including DVD player, sound system…etc)
-
Scaling on all inputs in both vertical
and horizontal direction (i.e. in-built scaler)
-
Video test patterns to be included
Connectivity:
- 15Kz Video input
- Component (YUV) Input with various Synch combinations
- RGBVsyncHsync - BNC
- RGB with sync on green (Unix/Sun Workstation)
- Composite Video
- S-Video
- VGA - 15 pin HDD
- DVI
- Digital input from DVD
- Input from Sony Playstation, Nintendo 64, PC games, Videocameras etc.
- Input from HDTV sources up to 1080p
- Progressive and Interlaced input sources
- Interface all relevant scalers and linedoublers in the market place
- 12V relay output when projector is on (active). One relay for 4:3 and
one for 16:
-
Display Method DLP™single
chip
-
DLP™Panel
-
Panel Size: 0,9"Display Method:
Single panel DMD™ by Texas
-
Instruments™Drive Method: DLP™Native
Resolution: 1024 x 768
-
Lens Original Carl Zeiss optical
engine
-
Manual focus
-
Manual Zoom: zoom ratio: x 1,5
-
Projection Lamp
-
Typical 200 W UHPLife Time: 2000
Hours
-
Brightness 1100 Lumens ANSI
-
Contrast Ratio 1100:1
-
Video System PAL /PAL-60 /PAL-M
/PAL-N/ NTSC 3.58/ NTSC 4.43 / SECAMDTV 480i / 480p / 720p / 1080i
-
Video Input 2 Composite Video (1
RCA + 1 BNC2 S-VIDEO (Mini Din 4 Pin)1 RGB / Component (5 x RCA)2 trigger
12 volts (1 On/Off + 1 4:3/16:9) 1 RS232 (9-pin D-Sub connector) 1 VGA
in (15-pin D-Sub connector) 1 DVI1 Mouse
-
Output 1 VGA out (15-pin D-Sub connector)
-
Color 16,7 Millions
-
Uniformity 98% image center
to corner
-
Horizontal Frequency 15-85 KHz
-
Vertical Frequency 43-100 Hz
-
Rated Voltage AC 100-240 V, 50-60
Hz
-
Weight 4,5 Kg +/- 5 %
-
Dimensions 400mm x 325mm x
130mm
-
Supplied accessory
-
Programmable Remote Control
Available with Zoom Lens, 60mm
Fixed Lens and 90mm Fixed Lens
|
$12500 |
X3 Home
US$ Call
|
|
DreamVision is happy and honored
to introduce the X3, the first 3-chip DLP of the range. Once again, we
use here the best of the Technology, the best available components and
an unrivalled design style to offer you the best of the Home Cinema.
High Definition 16:9 native
aspect ration (1280 x 720)
Stylish design, easy integration
Motorized zoom and focus, horizontal
and vertical lens shift
User Deinable memoires
7 video inputs (DVI & HDMI)
5 optional lenses
Available April 2004!!!
|
$ |
<
>
