LightAV.com
Price
|
Product Shot
|
Description
from Denon Site
|
Retail
Price
|
AVR 1604
Dolby Digital, Dolby Pro
Logic II
and DTS/DTS ES
A/V Receiver
US$ Discontinued
|
|
- Dolby Digital Surround
EX, Dolby Pro Logic II & DTS ES Discrete 6.1 A/V Receiver
- • Dolby Digital, including
Surround Ex decoding
- • Dolby Pro Logic II decoding
with Cinema and Music Modes
- • DTS ES Discrete 6.1, Matrix
6.1 decoding
- • DTS Neo:6 Cinema &
Music Surround decoding
- • Analog Devices Melody
32-bit Fixed Point DSP processor
- • 6 Channels equal power
amplifier section
- • 75 watts per channel (8
ohms, 20 Hz-20 kHz, <.08%THD)
- • 110 watts per channel
(6 ohms, 1 kHz, <.7%THD)
- • Banana Plug Speaker Connections
all channels (Except Speaker B)
- • Subwoofer Pre-out, with
Variable Hi/Low-pass Cross-over points(80/100/120/150Hz)
- • 24 bit, 96 kHz high resolution
DACs on all eight channels
- • Real 24 bit, 96 kHz Digital
Interface Receiver
- • 2 sets component video
inputs(30MHz), compatible with progressive DVD, DTV •
- 4 sets composite with 3
"S" video inputs
- • 5.1 external wide bandwidth
(100 kHz) input for future multi-channel formats (such as DVD-Audio)
- • 5/6 Channel Stereo
- • Personal Memory Plus
- • 4 assignable digital inputs
(3 Optical, 1 Coaxial)
- • Optical digital output
- • Front Panel A/V Inputs,
with Optical Digital
- • Front Panel Speaker A/B
Selector
- • 9 analog inputs including
built-in AM/FM tuner
- • Remote I/O Ports
- • Glow-Key pre-programmed
remote features codes from other manufacturers; Glow in the dark main function
keys
- • Dimensions: 17.1"w x 5.8"h
x 16.4"d
|
$399 |
AVR 1804
Dolby Digital Surround EX,
Dolby Pro Logic II & DTS ES Discrete 6.1 A/V Receiver
US$ Discontinued
|
|
- Dolby Digital Surround
EX, Dolby Pro Logic II & DTS ES Discrete 6.1 A/V Receiver
- • Dolby Digital, including
Surround Ex decoding
- • Dolby Pro Logic II decoding
with Cinema and Music Modes
- • DTS ES Discrete 6.1, Matrix
6.1 decoding
- • DTS Neo:6 Cinema &
Music Surround decoding
- • Analog Devices Melody
32-bit Fixed Point DSP processor
- • 6 Channels equal power
amplifier section
- • 90 watts per channel (8 ohms,
20 Hz-20 kHz, <.08%THD)
- • 125 watts per channel (6 ohms,
1 kHz, <.7%THD)
- • Banana Plug Speaker Connections
all channels (Except Speaker B)
- • Subwoofer Pre-out, with
Variable Hi/Low Pass Cross-over points(80/100/120/150Hz)
- • 24 bit, 96 kHz high resolution
DACs on all eight channels
- • Real 24 bit, 96 kHz Digital
Interface Receiver
- • 2 sets component video
inputs(30MHz), compatible with progressive DVD, DTV
- • 5 sets composite and "S"
video inputs
- • 5.1 external wide bandwidth
(100 kHz) input for future multi-channel formats (such as DVD-Audio)
- • 5/6 Channel Stereo
- • Personal Memory Plus
- • 4 assignable digital inputs
(3 Optical, 1 Coaxial)
- • Optical digital output
- • Front Panel A/V Inputs,
with S-Video and Optical Digital
- • Front Panel Speaker A/B
Selector
- • 9 analog inputs including
built-in AM/FM tuner
- • Multi-Zone stereo pre-amp level audio outputs, with Discrete
Power on/off, Source selection
- • Assignable 6th Channel Amplifier, for Second Zone with Discrete
Remote Volume Control
- • On-Screen Display
- • Remote I/O Ports
- • Glow-Key pre-programmed remote features codes from other
manufacturers; Glow in the dark main function keys
- • Dimensions: 17.1"w x 6.7"h
x 16.4"d
|
$499 |
AVR 2805
Dolby Digital, Dolby Pro
Logic II & DTS ES Discrete 6.1 A/V Receiver
US$ Discontinued
|
|
- 7.1 A/V Receiver with Dolby Digital Surround EX, Dolby Pro
Logic IIx & DTS ES Discrete 6.1
- • Dolby Digital Surround
EX, Pro Logic IIx decoding with Cinema,Music and Game Modes
- • dts ES Discrete 6.1 and
Matrix 6.1 decoding
- • dts Neo:6 Stereo to Surround
decoding
- • dts ES 96/24 5.1 decoding
for DVD Video
- • Analog Devices HammerHead SHARC 32 bit floating point DSP
processor
- • New Auto-Setup and Room EQ function with included DENON microphone
DM-S305
- • 7 Channels equal power
amplifier section
- • 100 watts per channel (8 ohms,
20 Hz-20 kHz, <.05%THD)
- • 135 watts per channel (6 ohms,
1 kHz, <.7%THD)
- • 16 Analog Devices, 24
bit, 96 kHz high resolution DACs on all eight channels, in differential configuration
- • Real 24 bit, 96 kHz Digital
Interface Receiver
- • 24 bit, 96 kHz A/D conversion on all Stereo analog inputs
(Not EXT. Inputs)
- • Pure Direct mode defeats
Video, Front Panel Display circuitry and with Analog sources the Digital circuitry
- • ALPHA 24 Processing on Front Channels
- • Adjustable High and Low Pass Crossover (40/60/80/100/120/150/200/250Hz)
- • 3 Assignable Component Video inputs (100MHz Bandwidth), with On-Screen Display
- • Video Conversion of Composite
to S-Video and/or to Component, with on-screen display
- • 7 sets composite and "S"
video inputs
- • 7.1 external wide bandwidth
(100 kHz) inputs for multi-channel formats, such as DVD-Audio and Super Audio
CD
- • 5/7 Channel Stereo
- • Digitally regulated volume
control with .5dB increment adjustments and step range of -80 to +15
- • Audio Delay adjustment
to match audio signals with video signals(0-200ms)
- • Personal Memory Plus
- • 7 assignable digital inputs
(5 Optical, 2 Coaxial)
- • 2 Optical digital outputs
- • 11 analog inputs including built-in
AM/FM tuner
- • True 2 Source, 2 Zone functionality with Discrete Power,
Source Select and Volume control for each zone
- • (1)Multi-Zone stereo pre-amp
level audio outputs, fixed or variable level • (1) Multi-Zone Composite Video
output
- • Power Amplifier Assign function, lets you assign 2 of the
7 amp channels to drive Zone 2 speakers directly
- •Direct Access Tuner presets
by remote • Glo-Key pre-programmed remote control
- • RS-232C Port for Third
Party Control Systems
- • Remote I/O ports
- • Assignable +12v triggers
(2)
- • Detachable Power cord
- • Full System Setup/Parameter
control on front panel, with feedback on front panel display (Monitor is not
needed for setup)
- • Dimensions: 17.1"w x 6.7"h
x 16.4"d
|
$799 |

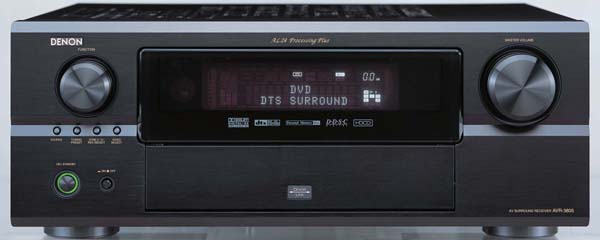

AVR 3805
Dolby Digital, Dolby Pro
Logic II & DTS ES Discrete 7.1 A/V Receiver
US$ Discontinued
|
|
- 7.1 A/V Receiver with
Dolby Digital Surround EX, Dolby Pro Logic IIx & DTS ES Discrete 6.1
- • Dolby Digital Surround
EX, Pro Logic IIx decoding with Cinema,Music and Game Modes
- • dts ES Discrete 6.1 and
Matrix 6.1 decoding
- • dts Neo:6 Stereo to Surround
decoding
- • dts ES 96/24 5.1 decoding
for DVD Video
- • HDCD decoding
- • New DDSC-Digital featuring
Analog Devices HammerHead SHARC 32 bit floating point DSP processor
- • New Auto-Setup and Room
EQ function with optional DENON microphone DM-S305 or other manufacturers
microphone
- • 7 Channels equal power
amplifier section
- • 120 watts per channel (8 ohms,
20 Hz-20 kHz, <.05%THD)
- • 160 watts per channel (6 ohms,
1 kHz, <.7%THD)
- • 16 Burr-Brown PCM-1791 24 bit, 192 kHz high resolution DACs
on all eight channels, in differential configuration
- • Real 24 bit, 192 kHz Digital
Interface Receiver
- • 24 bit, 192 kHz A/D conversion (Burr-Brown PCM-1804) on
all Stereo analog inputs (Not EXT. Inputs)
- • Pure Direct mode defeats
Video, Front Panel Display circuitry and with Analog sources the Digital circuitry
- • ALPHA 24 Processing Plus
(AL24+) on all channels
- • Adjustable High and Low
Pass Crossover (40/60/80/100/120/150/200/250Hz)
- • 3 Assignable Component
Video inputs (100MHz Bandwidth), with On-Screen Display
- • Video Conversion of Composite
to S-Video and/or to Component, with on-screen display
- • 7 sets composite and "S"
video inputs
- • 7.1 external wide bandwidth
(100 kHz) inputs for multi-channel formats, such as DVD-Audio and Super Audio
CD
- • 5/7 Channel Stereo
- • Digitally regulated volume
control with .5dB increment adjustments and step range of -80 to +15
- • Audio Delay adjustment
to match audio signals with video signals(0-200ms)
- • Personal Memory Plus
- • DENON Link 3rd (Super
Audio CD & DVD-Audio) compatible digital input
- • 7 assignable digital inputs
(5 Optical, 2 Coaxial)
- • 2 Optical digital outputs
- • 11 analog inputs including built-in
AM/FM tuner
- • True 3 Source, 3 Zone functionality with Discrete Power, Source
Select and Volume control for each zone
- • (2)Multi-Zone stereo pre-amp
level audio outputs, fixed or variable level (Zone 3 fixed only)
- • (1) Multi-Zone Composite
Video output
- • Power Amplifier Assign
function, lets you assign 2 of the 7 amp channels to drive Zone 2 or 3 speakers
directly
- • Direct Access Tuner presets
by remote
- • New EL backlighting pre-programmed/learning
remote
- • RS-232C Port for Third
Party Control Systems
- • Remote I/O ports
- • Assignable +12v triggers
(2)
- • Detachable Power cord
- • Full System Setup/Parameter
control on front panel, with feedback on front panel display (Monitor is not
needed for setup)
- • Dimensions: 17.1"w x 6.7"h
x 16.4"d
|
$1199 |

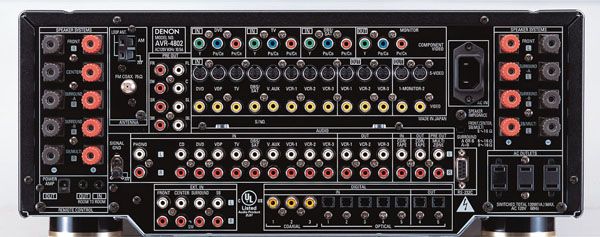

AVR 4802R
THX Surround EX/DTS ES 6.1
Discrete/THX 6.1/Dolby Pro
Logic II/Dolby Digital/DTS A/V Receiver
US$ Discontinued
|
|
- • THX Surround EX/DTS ES
6.1 Discrete/Dolby Digital EX Pro Logic II/DTS A/V Surround Reference Receiver
- • THX Ultra2 Certified
- • THX Surround EX; DTS Extended
Surround Discrete 6.1; DTS ES Matrix 6.1; DTS Neo:6 Cinema & Neo:6 Music
Matrix Decoding; Dolby Digital EX; Dolby Pro Logic II Cinema and Music Modes
- • Ultra2 7.1 Cinema and
Music modes
- • Lucasfilm Home THX Cinema 4.0, 5.1 and 6.1ES post-processing
- • DDSC-Digital featuring
dual Analog Devices SHARC 32 bit floating point DSP processors
- • 7 Channels equal power
amplifier section
- • 125 watts per channel (8 ohms,
20 Hz-20 kHz, <.05%THD)
- • 150 watts per channel (6 ohms,
20 Hz-20 kHz, <.05%THD)
- • Power Amplifier Assign
function, lets you assign 2 of the 7 amp channels to drive second zone speakers
directly
- • Adjustable Cross over Switching (40, 60, 80, 100, 120 Hz)
- • Surround A/B Speaker Switching
- • 24 bit, 96 kHz A/D conversion
- • Analog Devices AD-1854 24 bit, 96 kHz highest resolution
DACs
- • Pure Direct audio mode, Shuts down video and/or DSP sections
for the highest audio fidelity
- • ALPHA 24 processing in Stereo/Direct/Pure Direct modes (front
left/right channels) processing via SHARC DSP
- • Real 24 bit, up to 96
kHz Digital Interface Receiver
- • 3 sets component video inputs, compatible with wideband (480p,
720p, 1080i) response for progressive DVD, DTV (50 MHz bandwidth)
- • 8 sets composite and "S" video
inputs
- • 7.1 external wide bandwidth
(100 kHz) inputs for future multi-channel formats (such as DVD-Audio)
- • Audio Delay adjustment
to match audio signals with video signals(0-200ms)
- • 8 assignable digital inputs
- • 12 analog inputs including built-in
AM/FM tuner
- • Multi-Zone 1 stereo pre-amp
outputs
- • RS-232C port for external
controller
- • LCD dot-matrix programmable/learning
remote with full backlighting
- • Dimensions: 17.1"w x 7.0"h
x 19.4"d
|
$2000 |

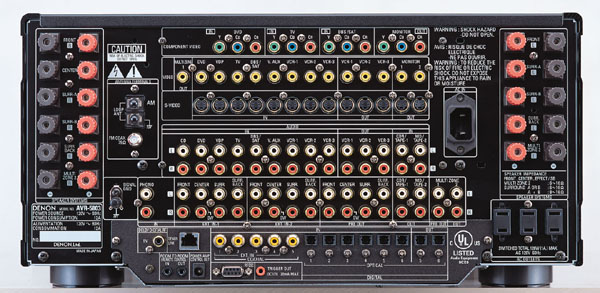

AVR 5803
THX Ultra2 Certified THX
Surround
EX/DTS ES 6.1 Discrete/Dolby
Digital
EX Pro Logic II/DTS A/V Surround
Reference Receiver
US$ Discontinued
|
|
- • THX Ultra2 Certified THX
Surround EX/DTS ES 6.1 Discrete/Dolby Digital EX Pro Logic II/DTS A/V Surround
Reference Receiver
- • NEW UPDATED VERSION!
- • DOLBY DIGITAL PLIIx and
HDCD Decoders Added!
- • THX Ultra2 Certified •
THX Surround EX; DTS Extended Surround Discrete 6.1; DTS ES Matrix 6.1; DTS
Neo:6 Cinema & Neo:6 Music Matrix Decoding; Dolby Digital EX; Dolby Pro
Logic II; Dolby Headphone; DTS
- • Ultra2 7.1 Cinema and
Music modes
- • Lucasfilm Home THX Cinema
4.0, 5.1 and 6.1ES post-processing
- • DVD-Audio decoding with
Adjustable Digital Bass Management, Delay, Channel Levels and Tone Controls,
through DENON Link or External Analog Inputs
- • DDSC-Digital featuring
New dual Analog Devices HammerHead SHARC 32-bit floating point DSP processors
- • 7 Channels equal power
amplifier section
- • 170 watts per channel
(8 ohms, 20 Hz-20 kHz, <.05%THD) • 200 watts per channel (6 ohms, 20 Hz-20
kHz, <.05%THD)
- • 24 bit, 192 kHz A/D conversion
(Burr-Brown PCM-1804 x 4) on all analog inputs, including External 7.1 inputs
- • 16 Burr-Brown PCM-1738E
24-bit, 192-kHz highest resolution DACs, with DSD compatibility - each audio
channel operating in differential mode
- • Pure Audio mode, features
4 DACs per audio channel in dual-differential mode
- • ALPHA 24 Processing Plus
in Stereo/Direct/Pure Direct modes (left/right channels)
- • 4 24 bit,192 kHz Digital Interface Receivers
- • 3 sets component video
inputs, compatible with wideband (480p, 720p, 1080i) response for progressive
DVD, DTV (100 MHz)
- • 8 sets composite and "S"
video inputs
- • Video Conversion of Composite
to S-Video and/or to Component
- • 1 AC-3 RF digital input
for laser disc
- • TWO sets of 7.1 external
wide bandwidth (100 kHz) inputs for multi-channel formats with full Bass Management(defeatable)
- • 11(5 Coax, 6 Opt.) assignable
digital inputs
- • 8 Channel Digital External
Inputs
- • 13 analog inputs including
built-in AM/FM tuner
- • Multi-Zone 1 stereo pre-amp
outputs with video output
- • Multi-Zone 2 outputs,
pre-amp outputs or speaker outputs
- • RS-232C port for external
controllers
- • Remote In/Out Ports
- • 12 and 5 volt triggers
- • DENON Link 3rd Edition,
ready for SACD digital transmission
- • Variable high/low pass
Crossover 40/60/80/100/120
- • Audio Delay adjustment
to match audio signals with video signals(0-200ms)
- • Digitally regulated volume
control with .5dB increment adjustments and step range of -80 to +15
- • Delay time adjustment
increased to 20 feet per speaker in .1 foot increments
- • Auto Surround Mode stores
modes by signal type(analog or digital) in memory
- • On-Screen Display
- • AKTIS RC-8000 LCD touchpanel
remote with IR and RF transmission capability included
- • AKTIS RC-8001ST Charger/RF
Base Station included
- • Download the owner's manual
in PDF format - Click on the Tech Note/Whitepaper icon to download 'Update
Supplement' for the owner's manual
- • Dimensions: 17.1"w x 8.5"h
x 19.1"d
|
$4400 |
