The satellite speakers
measure 1-5/16"x 4-7/16"x 5 ¾" and utilize a 3 ½" shielded,
poly cone midrange with rubber surround and a ½" balanced dome tweeter
constructed of P.E.I dome material.
The center channel
in the Cinema 1 is essentially a fifth satellite speaker featuring all of
the same performance specifications.
The Cinema 1 subwoofer
contains an 8" high excursion driver coupled to a 50-watt peak output amplifier.
Specifications
Satellite/Center
Tweeter 12mm PEI Dome
Midrange 3-1/2"
Frequency Response
(±3dB) 110Hz-20kHz
Power (RMS) 100W
Sensitivity (1w/1m)
84dB
Dimensions (HxWxD)
Sattelites 7-5/16" x 4-7/16" x 5-3/4" Center 4-1/2" x 7-7/16" x 5-1/2"
SubWoofer - 8"
Frequency Response
(±3dB) 50Hz-200Hz
Tuning - 2" Port
Power (Peak Music)
50W
Dimensions (HxWxD)
Subwoofer 13-3/4" x 12" x 13-1/4"
$299.95
Cinema 2
US$ Discontinued

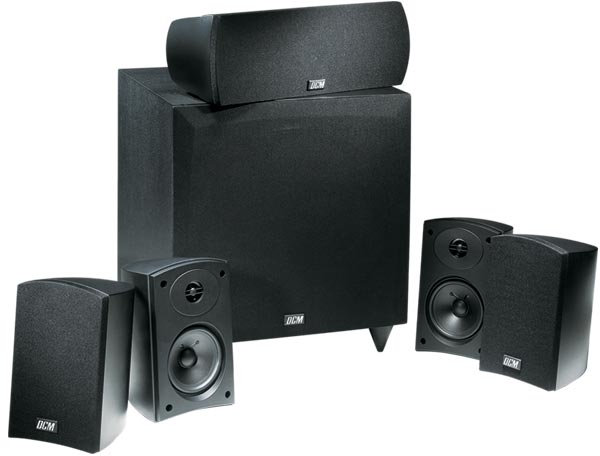

The six-piece Cinema
2 packages were designed sonically and stylistically to integrate as seamlessly
into a mid-city loft as into the sitting room of a large suburban home.
This package consists
of 4 satellite speakers, a center channel speaker, and a 10" powered subwoofer.
All speakers are framed in a handsome, black finish.
The center channel
in the Cinema 2 contains two 3 ½" midrange drivers, for more efficiency.
Handling the bottom
end for the Cinema 2 package is a 10" driver and amplifier rated at a powerful
100-watts peak output. Additional features include a continuously variable
low-pass crossover, high level inputs and outputs, low level inputs, automatic
signal sensing circuitry and a LED status indicator.
Specifications
Satellite/Center
Tweeter 12mm PEI Dome
Midrange 3-1/2"
Frequency Response
(±3dB) 110Hz-20kHz
Power (RMS) 100W
Sensitivity (1w/1m)
84dB
Dimensions (HxWxD)
Sattelites: 7-5/16" x 4-7/16" x 5-3/4" Center: 4-1/2" x 12-5/8" x 5-3/4"
SubWoofer - 10" Frequency
Response (±3dB) 45Hz-200Hz
Tuning - 3" Port
Dimensions (HxWxD)
Subwoofer: 15-7/8" x 14" x 15-1/8"
