ELF Series ELF-10
US$ Discontinued ELF-12
US$ Discontinued ELF-15
US$ Discontinued |
|
Common Features
• Dual 4 ohm voice coil • Chrome plated basket • Polypropylene cone • Chrome front & back plate • Foam rubber slant surround • Black spider • Chrome push terminals
• 500 watts power handling • 250 watts RMS • 55 oz. magnet • 2” kapton voice coil • SPL 91 dB • Sealed box: .5 cu. ft. • Ported box: 1.6 cu. ft. • Tuning: 35 Hz • Port size: 3” (dia) x 7.75” (length) • # of ports: 1 ELF-12 • 500 watts power handling • 250 watts RMS • 60 oz. magnet • 2” kapton voice coil • SPL 92 dB • Sealed box: 1.5 cu. ft. • Ported box: 2.1 cu. ft. • Tuning: 30 Hz • Port size: 3” (dia) x 8.3” (length) • # of ports: 1 ELF-15 • 700 watts power handling • 350 watts RMS • 80 oz. magnet • 2” kapton voice coil • SPL 93 dB • Sealed box: 2.5 cu. ft. • Ported box: 4.25 cu. ft. • Tuning: 29 Hz • Port size: 3” (dia) x 3.2” (length) • # of ports: 1 |
|
JWS-12 US$ Discontinued |
|
Common Features
• Dual 6 Ohm Vice Coil • Hemispherical Polymineral Cone • Rolled Foam Surround • Rubber Mounting Gasket • Rubber Magnet Sleeve • Silver Powder-Coated Finish
• 750 Watts power handling • 300 Watts RMS • 100 oz. Magnet • 2.5” KSV voice coil • SPL 87dB. • Fs: 23.2 Hz. • Vas: 2.30 cu. ft. • Qms: .6.567 Qes: .463 Qts: .432 • Xmax: 0.5” • Sealed box: 1.25 cu. Ft. • Ported box: 2.3 cu. Ft. • Tuning: 35Hz. • Port Size: 3”(dia) x 8.25”(length) • # of ports: 1 JWS-12 • 500 watts power handling • 250 watts RMS • 60 oz. magnet • 2” kapton voice coil • SPL 92 dB • Sealed box: 1.5 cu. ft. • Ported box: 2.1 cu. ft. • Tuning: 30 Hz • Port size: 3” (dia) x 8.3” (length) • # of ports: 1 |
|

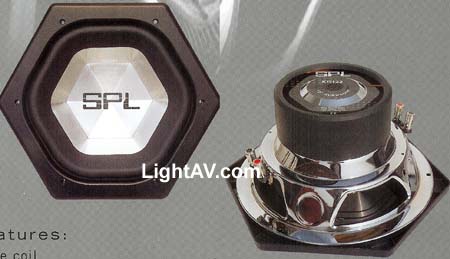

XT-122 US$ Discontinued |
|
Common Features
• Dual 4 Ohm Voice Coils • Hex Shape Electroplated Poly Cone • Large Hex Shape Rubber Surround • Dual Stacked Magnets • Rubber Magnet Cover • Woven Tinsel Leads Through Spider • 1 Piece Plastic Gasket • Chrome Front and Back Plate • Chrome Push Terminals
• 1200 watts power handling • 500 watts RMS • 160 oz. magnet • 2” ASV voice coil • FS 38.6(Hz) • Vas 0.8 cu.ft. • Qes: 1.126 • Qms: 2.94 • Qts: 0.56 • Xmax: 0.26” • SPL 91 dB • Sealed box: .5 cu. ft. • Ported box: 1.4 cu. ft. • Tuning: 33 Hz • Port size: 3” (dia) x 11.5” (length) • # of ports: 1 XT-122 • 1200 watts power handling • 600 watts RMS • 160 oz. magnet • 2.5” ASV voice coil • FS 30.6(Hz) • Vas 1.8 cu.ft. • Qes: 0.905 • Qms: 3.88 • Qts: 0.43 • Xmax: 0.315” • SPL 92 dB • Sealed box: .75 cu. ft. • Ported box: 1.7 cu. ft. • Tuning: 32 Hz • Port size: 3” (dia) x 10” (length) • # of ports: 1 |
Closeout ML-10W US$ 54.95 ML-12W US$ 64.95 |
|
Common Features
• Spun aluminum chrome • Die-Cast aluminum basket • Dual 4 ohm voice coil • Cyclovent fan cooled • Large roll slanted rubber surround • Black spider • Woven tinsel lead through spider • One-piece rubber gasket • Chrome binding post terminals • Black wrinkle with diamond cut finish • Chrome finish front & back plates • Packaged in a black wooden case with chrome appoinments
• 1200 watts power handling • 500 watts RMS • 160 oz. magnet • 2” ASV voice coil • FS 38.6(Hz) • Vas 0.8 cu.ft. • Qes: 1.126 • Qms: 2.94 • Qts: 0.56 • Xmax: 0.26” • SPL 91 dB • Sealed box: .5 cu. ft. • Ported box: 1.4 cu. ft. • Tuning: 33 Hz • Port size: 3” (dia) x 11.5” (length) • # of ports: 1 ML-12W • 1200 watts power handling • 600 watts RMS • 160 oz. magnet • 2.5” ASV voice coil • FS 30.6(Hz) • Vas 1.8 cu.ft. • Qes: 0.905 • Qms: 3.88 • Qts: 0.43 • Xmax: 0.315” • SPL 92 dB • Sealed box: .75 cu. ft. • Ported box: 1.7 cu. ft. • Tuning: 32 Hz • Port size: 3” (dia) x 10” (length) • # of ports: 1 |
