Model Number
|
Product Shot
Click for Larger
|
Description
|
|
XStream
|
|
XStream Series
2 Channel
XTA180.2
XTA240.2
XTA360.2
XTA480.2
XTA600.2
XTA880.2
US $Discontinued
New 2006 Models
|
|
BiLinear
selectable crossovers for inputs and outputs
Continuously variable high
and low pass crossovers
Varialbe subwoofer EQ
Phase inversion switch (0-180
degrees)
Platinum 4G power connectors
TriMode Operation
THD 0.5%
Frequency response 10-30KHz
Signal to Noise Ratio 96 dB
Damping Factor 200
Crossover Slopes 12 dB
Subwoofer EQ 0-18 dB @ 45Hz
- XTA180.2
- 2 X 45 RMS 4 Ohm
- 2 X 90 RMS 2 Ohm
- 1 X 180 RMS 4 Ohm Mono
- Dimensions 8.8" L X 3" H
X 12.4" W
- XTA240.2
- 2 X 60 RMS 4 Ohm
- 2 X 120 RMS 2 Ohm
- 1 X 240 RMS 4 Ohm Mono
- Dimensions 10.7" L X 3" H
X 12.4" W
- XTA360.2
- 2 X 90 RMS 4 Ohm
- 2 X 180 RMS 2 Ohm
- 1 X 360 RMS 4 Ohm Mono
- Dimensions 13.7" L X 3" H
X 12.4" W
- XTA480.2
- 2 X 120 RMS 4 Ohm
- 2 X 240 RMS 2 Ohm
- 1 X 480 RMS 4 Ohm Mono
- Dimensions 17.1" L X 3" H
X 12.4" W
- XTA600.2
- 2 X 150 RMS 4 Ohm
- 2 X 300 RMS 2 Ohm
- 1 X 600 RMS 4 Ohm Mono
- Dimensions 24.9" L X 3" H
X 12.4" W
- XTA880.2
- 2 X 220 RMS 4 Ohm
- 2 X 440 RMS 2 Ohm
- 1 X 880 RMS 4 Ohm Mono
- Dimensions 26.8" L X 3" H
X 12.4" W
|
XStream Series
4/5 Channel
XTA360.4
XTA480.4
XTA720.4
XTA600.5
US $Discontinued
New 2006 Models
|
|
BiLinear
selectable crossovers for inputs and outputs
Continuously variable high
and low pass crossovers
Varialbe subwoofer EQ
Phase inversion switch (0-180
degrees)
Platinum 4G power connectors
TriMode Operation
THD 0.5%
Frequency response 10-30KHz
Signal to Noise Ratio 96 dB
Damping Factor 200
Crossover Slopes 12 dB
Subwoofer EQ 0-18 dB @ 45Hz
XTA 360.4
4 X 45 RMS 4 Ohm
4 X 90 RMS 2 Ohm
2 X 180 RMS 4 Ohm
Dimensions 13.7" L X 3" H
X 12.4" W
XTA 480.4
4 X 60 RMS 4 Ohm
4 X 120 RMS 2 Ohm
2 X 240 RMS 4 Ohm
Dimensions 17.1" L X 3" H
X 12.4" W
XTA 720.4
4 X 90 RMS 4 Ohm
4 X 180 RMS 2 Ohm
2 X 360 RMS 4 Ohmo
Dimensions 24.9" L X 3" H
X 12.4" W
XTA 600.5
4 X 45 RMS + 1 X 120 4 Ohm
4 X 90 RMS + 1 X 240 2 Ohm
2 X 180 + 1 X 240 RMS
4 Ohm
Dimensions 24.9" L X 3" H
X 12.4" W
|
|

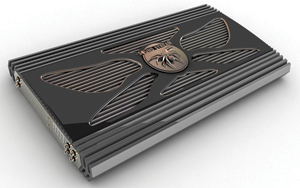

Picasso Series
|
Picasso
amplifiers exude Performance and Quality with 2.5 to 1 power supply ratios
and superior damping factors for excellent woofer control under high-stress
applications. With both class "A/B" and class "D" amplifiers to fit any application,
Picasso is the answer to loud and clear sound reproduction. |
New for 2005!!
Picasso Series
2,4,5 Channel
PCA2.130
PCA2.200
PCA2.260
PCA2.360
PCA2.520
PCA2.760
US $Discontinued
New 2006 Models
|
|
Fully regulated
MOSFET power supplies
PWM circuitry
Tri-guard amplifier protection
IDI™ (Intelligent Distress
Indicator) gives a visual indication of the amplifiers protection status
Platinum RCA inputs and outputs
Line Outputs
Bi-linear selectable crossovers
for inputs and outputs (Hi/Full/Low)
Continuously variable high
and low-pass crossovers
Variable subwoofer equalizer
Phase inversion switch (0
- 180†)
OEM floating ground input
Platinum 4-gauge power connectors
Tri-mode operation
Optional Remote Bass Control
(EGA-RM)
T.H.D.: 0.02%
FREQ. RESPONSE (Hz): 10 -
30K
SIGNAL TO NOISE RATIO: >97dB
DAMPING FACTOR: >200
INPUT SENSITVITY: 0.5 - 4.0V
CROSOVER SLOPES: 12dB
CROSSOVER FREQUENCY: High-Pass(Hz)
50 - 600
Low-Pass(Hz) 50 - 150
SUBWOFFER EQ: 0 - 18dB
SUBWOOFER EQ FREQ. (Hz) :
40 - 120
PCA2.130
RMS @ 2 Ohms 65x2
RMS @ 4 Ohm Mono 130x1
DIMENSIONS (INCHES): 9.5x2.5x6.0
PCA2.200
RMS @ 2 Ohms 100x2
RMS @ 4 Ohm Mono 200x1
DIMENSIONS (INCHES): 9.5x2.5x8.0
PCA2.260
RMS @ 2 Ohms 130x2
RMS @ 4 Ohm Mono 260x1
DIMENSIONS (INCHES): 9.5x2.5x10.75
PCA2.360
RMS @ 2 Ohms 180x2
RMS @ 4 Ohm Mono 360 x 1
DIMENSIONS (INCHES): 9.5x2.5x13.0
PCA2.520
RMS @ 2 Ohms 260x2
RMS @ 4 Ohm Mono 520x1
DIMENSIONS (INCHES):
9.5x2.5x15.0
PCA2.760
RMS @ 2 Ohms 380x2
RMS @ 4 Ohm Mono 760x1
DIMENSIONS (INCHES):
9.5x2.5x20.0
PCA4.260
OUTPUT (watts):
RMS @ 4 Ohms 40x4
RMS @ 2 Ohms 65x4
RMS@ 4 Ohms Bridged 2x130
DIMENSIONS (INCHES): 9.5x2.5x10.0
PCA4.400
RMS @ 4 Ohms 40x4
RMS @ 2 Ohms 65x4
RMS@ 4 Ohms Bridged 2x130
DIMENSIONS (INCHES): 9.5x2.5x11.5
PCA4.520
RMS @ 4 Ohms 80x4
RMS @ 2 Ohms 130x4
RMS@ 4 Ohms Bridged 2x260
DIMENSIONS (INCHES):
9.5x2.5x14.0
PCA5.540
RMS @ 4 Ohms 60x4 + 110x1
RMS @ 2 Ohms 100x4 + 180x1
RMS@ 4 Ohms Bridged 180x2
+ 180x1
DIMENSIONS (INCHES):
9.5x2.5x18.0
|
New for 2005!!
Picasso Series
1 Channel
PCA1000D
PCA1500D
PCA2000D
US $Discontinued
New 2006 Models
|
|
Digital Class
Amp Features
TST™ (Twin Stack Technology)
Allows 2 amplifiers to drive 1 voice coil, effectively doubling the power
High quality FR-4 circuit
board
Class D circuitry
Continuously variable low-pass
crossover
Continuously variable subsonic
filter
Variable subwoofer equalizer
Platinum 2-gauge power connectors
Source voltage 11 - 16 volts
DC
1-ohm stability
Includes EGA-RM Remote Bass
Boost Control
T.H.D.: 0.5%
FREQ. RESPONSE (Hz): 5 -
250Hz
SIGNAL TO NOISE RATIO: >80dB
DAMPING FACTOR: >200
INPUT SENSITVITY: 0.5-4.0V
CROSSOVER SLOPES: 24dB
INPUT SENSITVITY: 200mV
LOW PASS (Hz) 55-220
SUBWOFFER EQ (HZ): 30-150
PCA1000D
RMS @ 4 Ohms 500x1
RMS @ 2 Ohms 800x1
RMS @ 1 Ohm 1000x1
DIMENSIONS (INCHES): 9.5x2.5x12.75
PCA1500D
RMS @ 4 Ohms 800x1
RMS @ 2 Ohms 1100x1
RMS @ 1 Ohm 1500x1
DIMENSIONS (INCHES):
9.5x2.5x15.0
PCA2000D
RMS @ 4 Ohms 1100x1
RMS @ 2 Ohms 1500x1
RMS @ 1 Ohm 2000x1
DIMENSIONS (INCHES): 9.5x2.5x18.0
|
New for 2005!!

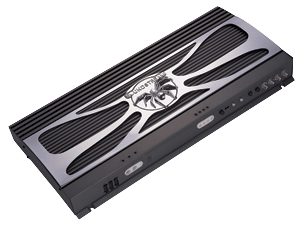

Tarantula Series
2 Channel
TRA340.2
TRA560.2
TRA800.2
TRA1000.2
4 Channel
TRA680.4
TRA960.4
5 Channel
TRA880.5
US $Discontinued
New 2006 Models
|
|
Variable hi pass,
band pass, low pass
Variable 18dB bass boost
Double sided glass epoxy
SMT circuit board
PWM mosfet power supply
Tri-guard amplifier protection
SMT cooling fan built in
Tri-mode capable
Line output
T.H.D.: < 0.02%
Frequency Response (Hz):
10 - 50k
SIGNAL TO NOISE RATIO: >115dB
DAMPING FACTOR: >500
INPUT SENSITIVITY: 0.15
- 12.0V
CROSOVER SLOPE: 12dB
CROSSOVER FREQUENCY (HZ):
50 - 5k
TRA340.2
OUTPUT (WATTS):
RMS @ 4 Ohms 85x2
RMS @ 2 Ohms 170x2
RMS Bridged @ 4 Ohms 340
X 1
DIMENSIONS (INCHES): 10.75x2.6x16
TRA560.2
OUTPUT (WATTS):
RMS @ 4 Ohms 140x2
RMS @ 2 Ohms 280x2
RMS Bridged @ 4 Ohms 560
x 1
DIMENSIONS (INCHES): 10.75x2.6x18
TRA800.2
OUTPUT (WATTS):
RMS @ 4 Ohms 200x2
RMS @ 2 Ohms 400x2
RMS Bridged @ 4 Ohms 800
X 1
DIMENSIONS (INCHES): 10.75x2.6x21.5
TRA1000.2
OUTPUT (WATTS):
RMS @ 4 Ohms 250x2
RMS @ 2 Ohms 500x2
RMS Bridged @ 4 Ohms 1000
X 1
DIMENSIONS (INCHES): 10.75x2.6x22.5
TRA1400.2
OUTPUT (WATTS):
RMS @ 4 Ohms 350x2
RMS @ 2 Ohms 700x2
RMS Bridged @ 4 Ohms 1400
X 1
DIMENSIONS (INCHES): 10.75x2.6x24.25
TRA680.4
OUTPUT (WATTS):
RMS @ 4 Ohms 85x4
RMS @ 2 Ohms 170x4
RMS Bridged @ 4 Ohms
340 x 2
DIMENSIONS (INCHES): 10.75x2.6x24.25
TRA960.4
OUTPUT (WATTS):
RMS @ 4 Ohms 120x4
RMS @ 2 Ohms 240x4
RMS Bridged @ 4 Ohms 480
X 2
DIMENSIONS (INCHES): 10.75x2.6x21.5
TRA880.5
OUTPUT (WATTS):
RMS @ 4 Ohms 60x4+200x1
RMS @ 2 Ohms 120x4+400x1
RMS Bridged @ 4 Ohms
240 X 2+400x1
DIMENSIONS (INCHES):
10.75x2.6x21.5
|
<
>
