SoundStream Amplifiers
@LightAV.com

Read this when comparing prices and shopping online

Rules about Internet Retail
Are there any warranties?

LightAV.com Specials

Thunder Audio Video Store with 20,000+ more products!! Click Here

Other Products

Alarms

Amplifiers

DJ / Pro Audio

GPS/Sattelite Radio Systems

Installation Accessories

Mobile Video

Neon Lights
Xenon Headlights

Radar Detectors/Jammers

Speakers/Subs

Stereos

Sub Boxes

Model Number	Product Shot Click for Larger Picture	Description

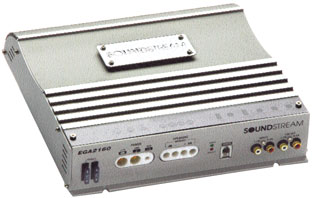

Edge Series 2 Channel EGA 2120 EGA 2160 EGA 2200 EGA 2300 EGA 2440 Discontinued New 2006 Models		Fully regulated, MOSFET power supply PWM circuitry Bi-Linear in/out selectable crossovers (Hi/Full/Low) Continuously variable 12dB low-pass crossover (40Hz to 120Hz) Continuously variable 12dB high-pass crossover (150Hz to 1.5kHz) Variable 0 – 18dB subwoofer equalizer (40Hz-120Hz) Continuously variable phase alignment (0°-180°) Tri-guard amplifier protection Intelligent Distress indicator (IDI) Platinum RCA input and output OEM floating ground input Platinum 4 gauge power inputs 2-ohm stereo/4-ohm mono stable Tri-mode operation Damping Factor 200 Optional REmote Bass Control (EGA-RM) 10Hz – 30 kHz frequency response >97dB S/N ratio >0.02% THD EGA 2120 2 X 60 RMS 4 Ohm 2 X 120 RMS 2 Ohm 1 X 240 RMS 4 Ohm Mono Dimensions 11" W X 2.2" H X 7.9" L EGA 2160 2 X 80 RMS 4 Ohm 2 X 160 RMS 2 Ohm 1 X 320 RMS 4 Ohm Mono Dimensions 11" W X 2.2" H X 10.7" L EGA 2220 2 X 110 RMS 4 Ohm 2 X 220 RMS 2 Ohm 1 X 440 RMS 4 Ohm Mono Dimensions 11" WX 2.2" H X 13" L EGA 2300 2 X 150 RMS 4 Ohm 2 X 300 RMS 2 Ohm 1 X 600 RMS 4 Ohm Mono Dimensions 11" W X 2.2" H X 15" L EGA 2440 2 X 220 RMS 4 Ohm 2 X 440 RMS 2 Ohm 1 X 880 RMS 4 Ohm Mono Dimensions 11" W X 2.2" H X 19.7" L
Edge Series 4/5 Channel EGA 4120 EGA 4160 EGA 4220 EGA 5400 EGA 5700 Discontinued New 2006 Models		Fully regulated, MOSFET power supply PWM circuitry Bi-Linear in/out selectable crossovers (Hi/Full/Low) Continuously variable 12dB low-pass crossover (40Hz to 120Hz) Continuously variable 12dB high-pass crossover (150Hz to 1.5kHz) Variable 0 – 18dB subwoofer equalizer (40Hz-120Hz) Continuously variable phase alignment (0°-180°) Tri-guard amplifier protection Intelligent Distress indicator (IDI) Platinum RCA input and output OEM floating ground input Platinum 4 gauge power inputs 2-ohm stereo/4-ohm mono stable Tri-mode operation Damping Factor 200 Optional REmote Bass Control (EGA-RM) 10Hz – 30 kHz frequency response >97dB S/N ratio >0.02% THD EGA 4120 4 X 60 RMS 4 Ohm 4 X 120 RMS 2 Ohm 2 X 240 RMS 4 Ohm Mono Dimensions 11.4" L X 2.2" H X 11" W EGA 4160 4 X 80 RMS 4 Ohm 4 X 160 RMS 2 Ohm 2 X 320 RMS 4 Ohm Mon Dimensions 13.8" L X 2.2" H X 11" W EGA 4220 4 X 110 RMS 4 Ohm 4 X 220 RMS 2 Ohm 2 X 440 RMS 4 Ohm Mono Dimensions 17.7" L X 2.2" H X 11" W EGA 5400 4 X 25+1 X 100 RMS 4 Ohm 4 X 50+1 X 200 RMS 2 Ohm 2 X 440 RMS 4 Ohm Mono Dimensions 11.8" L X 2.2" H X 11" W EGA 5700 4 X 50+1 X 150 RMS 4 Ohm 4 X 100+1 X 300 RMS 2 Ohm 2 X 440 +1 X 300 RMS 4 Ohm Mono Dimensions 18" L X 2.2" H X 11" W
Edge Series 1 Channel EGA 900D EGA 1400D EGA 1700D New for 2004!! EGA1000DX EGA1500DX EGA2000DX Discontinued New 2006 Models		TST™ (Twin Stack Technology) 2 amplifiers to drive one voice coil effectively doubling the power Fully regulated, MOSFET power supply PWM circuitry High quality FR-4 circuit board Satellite Power Gain (remote gain control) Continuously variable 24dB low-pass crossover (50Hz to 150Hz) Continuously variable 24dB subsonic filter (50Hz to 150Hz) Variable 0 – 18dB subwoofer equalizer @ 40Hz Continuously variable phase alignment (0°- 180°) Tri-guard amplifier protection Intelligent Distress indicator (IDI) Platinum RCA input and output Platinum 1/0 gauge power inputs 1-ohm stable 5Hz – 250Hz frequency response >80dB S/N ratio 0.30% THD EGA 900D 1 X 225 RMS 4 Ohm 1 X 450 RMS 2 Ohm 1 X 900 RMS 1 Ohm Dimensions 12.6" L X 2.2" H X 11" W EGA 1400D 1 X 350 RMS 4 Ohm 1 X 700 RMS 2 Ohm 1 X 1400 RMS 1 Ohm Dimensions 15" L X 2.2" H X 11" W EGA 1700D 1 X 425 RMS 4 Ohm 1 X 850 RMS 2 Ohm 1 X 1700 RMS 1 Ohm Dimensions 17.7" L X 2.2" H X 11" W EGA 1000DX 1 X 350 RMS 4 Ohm 1 X 700 RMS 2 Ohm 1 X 1000 RMS 1 Ohm Dimensions 14.6" L X 2.4" H X 11" W EGA 1500DX 1 X 500 RMS 4 Ohm 1 X 1000 RMS 2 Ohm 1 X 1500 RMS 1 Ohm Dimensions 16.9" L X 2.4" H X 11" W EGA 2000DX 1 X 750 RMS 4 Ohm 1 X 1500 RMS 2 Ohm 1 X 2000 RMS 1 Ohm Dimensions 20" L X 2.4" H X 11" W
	XStream
XStream Series 2 Channel XTA180.2 XTA240.2 XTA360.2 XTA480.2 XTA600.2 XTA880.2 US $Call New 2006 Models		BiLinear selectable crossovers for inputs and outputs Continuously variable high and low pass crossovers Varialbe subwoofer EQ Phase inversion switch (0-180 degrees) Platinum 4G power connectors TriMode Operation THD 0.5% Frequency response 10-30KHz Signal to Noise Ratio 96 dB Damping Factor 200 Crossover Slopes 12 dB Subwoofer EQ 0-18 dB @ 45Hz XTA180.2 2 X 45 RMS 4 Ohm 2 X 90 RMS 2 Ohm 1 X 180 RMS 4 Ohm Mono Dimensions 8.8" L X 3" H X 12.4" W XTA240.2 2 X 60 RMS 4 Ohm 2 X 120 RMS 2 Ohm 1 X 240 RMS 4 Ohm Mono Dimensions 10.7" L X 3" H X 12.4" W XTA360.2 2 X 90 RMS 4 Ohm 2 X 180 RMS 2 Ohm 1 X 360 RMS 4 Ohm Mono Dimensions 13.7" L X 3" H X 12.4" W XTA480.2 2 X 120 RMS 4 Ohm 2 X 240 RMS 2 Ohm 1 X 480 RMS 4 Ohm Mono Dimensions 17.1" L X 3" H X 12.4" W XTA600.2 2 X 150 RMS 4 Ohm 2 X 300 RMS 2 Ohm 1 X 600 RMS 4 Ohm Mono Dimensions 24.9" L X 3" H X 12.4" W XTA880.2 2 X 220 RMS 4 Ohm 2 X 440 RMS 2 Ohm 1 X 880 RMS 4 Ohm Mono Dimensions 26.8" L X 3" H X 12.4" W
XStream Series 4/5 Channel XTA360.4 XTA480.4 XTA720.4 XTA600.5 US $Call New 2006 Models		BiLinear selectable crossovers for inputs and outputs Continuously variable high and low pass crossovers Varialbe subwoofer EQ Phase inversion switch (0-180 degrees) Platinum 4G power connectors TriMode Operation THD 0.5% Frequency response 10-30KHz Signal to Noise Ratio 96 dB Damping Factor 200 Crossover Slopes 12 dB Subwoofer EQ 0-18 dB @ 45Hz XTA360.4 4 X 45 RMS 4 Ohm 4 X 90 RMS 2 Ohm 2 X 180 RMS 4 Ohm Dimensions 13.7" L X 3" H X 12.4" W XTA480.4 4 X 60 RMS 4 Ohm 4 X 120 RMS 2 Ohm 2 X 240 RMS 4 Ohm Dimensions 17.1" L X 3" H X 12.4" W XTA720.4 4 X 90 RMS 4 Ohm 4 X 180 RMS 2 Ohm 2 X 360 RMS 4 Ohmo Dimensions 24.9" L X 3" H X 12.4" W XTA600.5 4 X 45 RMS + 1 X 120 4 Ohm 4 X 90 RMS + 1 X 240 2 Ohm 2 X 180 + 1 X 240 RMS 4 Ohm Dimensions 24.9" L X 3" H X 12.4" W
	Tarantula Series	Awards: “Best of the Best” at CES by Mobile Sound magazine “Autosound Grand Prix Technology Award” by Audio Video international “Autosound Grand Prix Product of the Year Award” by Audio Video Int’l
Tarantula Series 4/5 Channel TR 500/4 TR 800/5 Discontinued New 2006 Models		RUBI™ (Rapid-Use Branched Impulse) Proprietary power supply topology STACT™ (STabilized Apex Current Topology) Reduces power supply stress by 50% Trident™ Amplifier protection topology Tone Sweep Calibration Optimizes the power supply to the connected speaker load Hawkins Bass Control™ Proprietary bass equalization topology Continuously variable 12dB low-pass crossover (30Hz to 4kHz) Three Stage Input Level Indicators Output Clip Indicators IDI™ (Intelligent Distress Indicator) gives visual amplifier protection status Large Mouth Bass remote gain control Continuously variable phase alignment (0° - 180°) Vortex induction fan for thermal management Differentially Balanced RCA Input Fully Balanced 6-pin DIN Input RCA Line Output Gold plated 1/0 gauge power inputs Harmonic Bass Alignment™ Produces tighter, more accurate bass reproduction Discrete Balanced Class A Drive Boards maximizes linearity on low impedance loads Drive Delay 2™ Eliminates turn on and turn off pops & noises Chassisink™ Transistors are located between circuit board and heatsink for optimal heat dissipation Power Grid™ Design optimizes current delivery to and from the power supply 20Hz – 500 Hz Frequency response >115dB S/N ratio >500 Damping 300mV – 5.0V Input sensitivity 0.02% THD All Chrome Plated TR 500/4 4 X 125 RMS 4 Ohm 4 X 250 RMS 2 Ohm 2 X 500 RMS 4 Ohm Dimensions 24" L X 4" H X 12.25" W TR 800/5 4 X 50 RMS + 1 X 200 4 Ohm 4 X 100 RMS + 1 X 400 2 Ohm 2 X 200 + 1 X 400 RMS 4 Ohm Dimensions 24" L X 4" H X 12.25" W

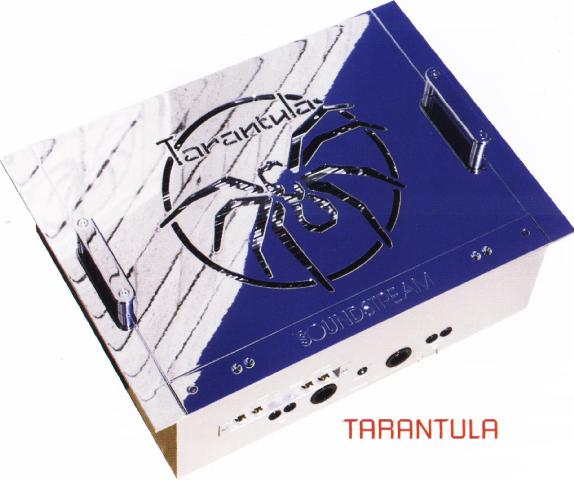

Tarantula Discontinued New 2006 Models		RUBI™ (Rapid-Use Branched Impulse) Proprietary power supply topology STACT™ (STabilized Apex Current Topology) Reduces power supply stress by 50% Trident™ Amplifier protection topology Tone Sweep Calibration Optimizes the power supply to the connected speaker load Hawkins Bass Control™ Proprietary bass equalization topology Continuously variable 12dB low-pass crossover (30Hz to 4kHz) Three Stage Input Level Indicators Output Clip Indicators IDI™ (Intelligent Distress Indicator) gives visual amplifier protection status Large Mouth Bass remote gain control Continuously variable phase alignment (0° - 180°) Vortex induction fan for thermal management Differentially Balanced RCA Input Fully Balanced 6-pin DIN Input RCA Line Output Gold plated 1/0 gauge power inputs Harmonic Bass Alignment™ Produces tighter, more accurate bass reproduction Discrete Balanced Class A Drive Boards maximizes linearity on low impedance loads Drive Delay 2™ Eliminates turn on and turn off pops & noises Chassisink™ Transistors are located between circuit board and heatsink for optimal heat dissipation Power Grid™ Design optimizes current delivery to and from the power supply 20Hz – 500 Hz Frequency response >115dB S/N ratio >500 Damping 300mV – 5.0V Input sensitivity 0.02% THD All Chrome Plated Tarantula 1 X 2000 RMS 4 Ohm 1 X 2000 RMS 2 Ohm Dimensions 19" L X 5.5" H X 14" W
	Tarantula	Awards Best of the Best at CES by Mobile Sound Magazine Selected Innovative Amplifier of the Year by Auto Sound and Security Magazine

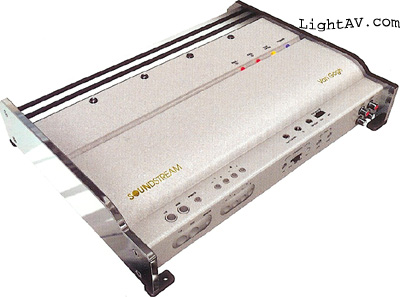

Van Gogh Series 2/4/5 Channel VGA 400.2 VGA 600.2 VGA 800.2 VGA 1600.2 VGA 320.4 VGA 500.4 VGA 800.5 Discontinued New 2006 Models		RUBI™ (Rapid-Use Branched Impulse) Proprietary power supply topology STACT™ (STabilized Apex Current Topology) Reduces power supply stress by 50% Trident™ Amplifier protection topology Ultra Low ESR Capacitance bank ensures rapid power delivery for dynamic peaks Continuously variable 12dB low-pass crossover (30Hz to 4kHz) IDI™ (Intelligent Distress Indicator) gives visual amplifier protection status Triple Darlington OUtput Circuitry Continuously variable high and low pass crossovers with 12 dB / Octave slope (30-4KHz) Vortex induction fan for thermal management Platinum RCA Line inputs and outputs Platinum 4 gauge power inputs Rail stabilization protection circuitry Tri-mode operation BIP™ Bias Input Protection Harmonic Bass Alignment™ Produces tighter, more accurate bass reproduction Bi-Linear selectable 2 way crossovers for amplifiers and line outs 10Hz - 50 KHz Frequency response >115dB S/N ratio >500 Damping .15V - 12.0V Input sensitivity 0.02% THD VGA 400.2 2 X 100 RMS 4 Ohm 2 X 200 RMS 2 Ohm 1 X 400 RMS 4 Ohm Mono Dimensions 11.8" L X 2.6" H X 11.2" W VGA 600.2 2 X 150 RMS 4 Ohm 2 X 300 RMS 2 Ohm 1 X 600 RMS 4 Ohm Mono Dimensions 12.6" L X 2.6" H X 11.2" W VGA 800.2 2 X 200 RMS 4 Ohm 2 X 400 RMS 2 Ohm 1 X 800 RMS 4 Ohm Mono Dimensions 15.8" L X 2.6" H X 11.2" W VGA 1600.2 2 X 400 RMS 4 Ohm 2 X 800 RMS 2 Ohm 1 X 1600 RMS 4 Ohm Mono Dimensions 18.9" L X 2.6" H X 11.2"" W VGA 320.4 4 X 80 RMS 4 Ohm 4 X 160 RMS 2 Ohm 2 X 320 RMS 4 Ohm Dimensions 13.8" L X 2.6" H X 11.2"" W VGA 500.4 4 X 125 RMS 4 Ohm 4 X 250 RMS 2 Ohm 2 X 500 RMS 4 Ohm Dimensions 15.8" L X 2.6" H X 11.2" W VGA 800.5 4 X 50 RMS + 1 X 200 4 Ohm 4 X 100 RMS + 1 X 400 2 Ohm 2 X 200 + 1 X 400 RMS 4 Ohm Dimensions 18.9" L X 2.6" H X 11.2"" W

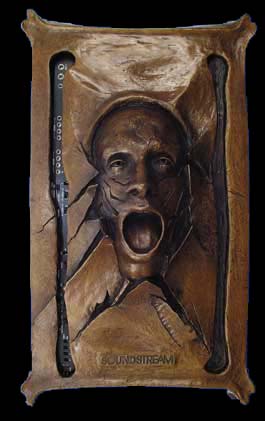

Human Reign 2 Limited Edition Human Reign 4 Limited Edition		Fully regulated, MOSFET power supply RUBI™ (Rapid-Use Branched Impulse) Proprietary power supply topology STACT™ (STabilized Apex Current Topology) Reduces power supply stress by 50% Auto High Current™ Matches the amplifier for virtually every load application Chassisink™ Transistors are located between circuit board and heatsink for optimal heat dissipation Triple Darlington output circuitry Vortex induction fan for thermal management Bi-Linear built-in selectable 2-way crossovers for amplifier and RCA line output Continuously variable 24dB low-pass crossover (30Hz to 4kHz) Continuously variable 12dB high-pass crossover (30Hz to 4kHz) Hawkins Bass Control™ Proprietary bass equalization topology Harmonic Bass Alignment™ Produces tighter and more accurate bass reproduction Trident™ amplifier protection topology IDI™ (Intelligent Distress Indicator) gives visual amplifier protection status Balanced Line inputs for the highest level of noise rejection Platinum RCA input and output Platinum power inputs Tri-mode operation 10Hz – 40 kHz Frequency response >120dB S/N ratio >500 Damping 0.15 – 12.0V Input sensitivity 0.02% THD Human Reign 2 2 X 450 RMS 4 Ohm 2 X 800 RMS 2 Ohm 1 X 1600 RMS 4 Ohm Mono Dimensions 25" L X 7" H X 14" W Human Reign 4 4 X 125 RMS 4 Ohm 4 X 250 RMS 2 Ohm 2 X 500 RMS 4 Ohm Mono Dimensions 25" L X 7" H X 14" W
XXX-5000D Discontinued New 2006 Models		RMS @ 4 ohm 1250 x 1 RMS @ 2 ohm 2500 x 1 RMS @ 1 ohm 5000 x 1 THD 0.5% Signal to Noise Ratio >80dB input sensitivity 200mv 24 dB variable low pass from 30-150 hz 24 dB subsonic filter 0-18dB variable bass EQ @45 Hz I have seen this listed on the web for $9999, which is retarded since I am an authorized dealer and there are not even any prices or a timeframe when it will be out.. Typical!!! Update 7/29/04 ETA for amplifier Sept 2004.. No prices available yet.
