Model Number
|
Product Shot
Click for Larger
|
Description
|
Edge Series
2 Channel
EGA 2120
EGA 2160
EGA 2200
EGA 2300
EGA 2440
Discontinued
New 2006 Models
|
|
Fully
regulated, MOSFET power supply
PWM circuitry
Bi-Linear in/out selectable
crossovers (Hi/Full/Low)
Continuously variable 12dB
low-pass crossover (40Hz to 120Hz)
Continuously variable 12dB
high-pass crossover (150Hz to 1.5kHz)
Variable 0 – 18dB subwoofer
equalizer (40Hz-120Hz)
Continuously variable phase
alignment (0°-180°)
Tri-guard amplifier protection
Intelligent Distress indicator
(IDI)
Platinum RCA input and output
OEM floating ground input
Platinum 4 gauge power inputs
2-ohm stereo/4-ohm mono stable
Tri-mode operation
Damping Factor 200
Optional REmote Bass Control
(EGA-RM)
10Hz – 30 kHz frequency response
>97dB S/N ratio
>0.02% THD
- EGA 2120
- 2 X 60 RMS 4 Ohm
- 2 X 120 RMS 2 Ohm
- 1 X 240 RMS 4 Ohm Mono
- Dimensions 11" W X 2.2"
H X 7.9" L
- EGA 2160
- 2 X 80 RMS 4 Ohm
- 2 X 160 RMS 2 Ohm
- 1 X 320 RMS 4 Ohm Mono
- Dimensions 11" W X 2.2"
H X 10.7" L
- EGA 2220
- 2 X 110 RMS 4 Ohm
- 2 X 220 RMS 2 Ohm
- 1 X 440 RMS 4 Ohm Mono
- Dimensions 11" WX 2.2" H
X 13" L
- EGA 2300
- 2 X 150 RMS 4 Ohm
- 2 X 300 RMS 2 Ohm
- 1 X 600 RMS 4 Ohm Mono
- Dimensions 11" W X 2.2"
H X 15" L
- EGA 2440
- 2 X 220 RMS 4 Ohm
- 2 X 440 RMS 2 Ohm
- 1 X 880 RMS 4 Ohm Mono
- Dimensions 11" W X 2.2"
H X 19.7" L
|
Edge Series
4/5 Channel
EGA 4120
EGA 4160
EGA 4220
EGA 5400
EGA 5700
Discontinued
|
|
Fully
regulated, MOSFET power supply
PWM circuitry
Bi-Linear in/out selectable
crossovers (Hi/Full/Low)
Continuously variable 12dB
low-pass crossover (40Hz to 120Hz)
Continuously variable 12dB
high-pass crossover (150Hz to 1.5kHz)
Variable 0 – 18dB subwoofer
equalizer (40Hz-120Hz)
Continuously variable phase
alignment (0°-180°)
Tri-guard amplifier protection
Intelligent Distress indicator
(IDI)
Platinum RCA input and output
OEM floating ground input
Platinum 4 gauge power inputs
2-ohm stereo/4-ohm mono stable
Tri-mode operation
Damping Factor 200
Optional REmote Bass Control
(EGA-RM)
10Hz – 30 kHz frequency response
>97dB S/N ratio
>0.02% THD
EGA 4120
4 X 60 RMS 4 Ohm
4 X 120 RMS 2 Ohm
2 X 240 RMS 4 Ohm Mono
Dimensions 11.4" L X 2.2"
H X 11" W
EGA 4160
4 X 80 RMS 4 Ohm
4 X 160 RMS 2 Ohm
2 X 320 RMS 4 Ohm Mon
Dimensions 13.8" L X 2.2"
H X 11" W
EGA 4220
4 X 110 RMS 4 Ohm
4 X 220 RMS 2 Ohm
2 X 440 RMS 4 Ohm Mono
Dimensions 17.7" L X 2.2"
H X 11" W
EGA 5400
4 X 25+1 X 100 RMS 4 Ohm
4 X 50+1 X 200 RMS 2 Ohm
2 X 440 RMS 4 Ohm Mono
Dimensions 11.8" L X 2.2"
H X 11" W
EGA 5700
4 X 50+1 X 150 RMS 4 Ohm
4 X 100+1 X 300 RMS 2 Ohm
2 X 440 +1 X 300 RMS 4 Ohm
Mono
Dimensions 18" L X 2.2"
H X 11" W
|
Edge Series
1 Channel
EGA 900D
EGA 1400D
EGA 1700D
Discontinued
New 2006 Models
|
|
TST™ (Twin
Stack Technology) 2 amplifiers to drive one voice coil effectively doubling
the power
Fully regulated, MOSFET power
supply
PWM circuitry
High quality FR-4 circuit
board
Satellite Power Gain (remote
gain control)
Continuously variable 24dB
low-pass crossover (50Hz to 150Hz)
Continuously variable 24dB
subsonic filter (50Hz to 150Hz)
Variable 0 – 18dB subwoofer
equalizer @ 40Hz
Continuously variable phase
alignment (0°- 180°)
Tri-guard amplifier protection
Intelligent Distress indicator
(IDI)
Platinum RCA input and output
Platinum 1/0 gauge power
inputs
1-ohm stable
5Hz – 250Hz frequency response
>80dB S/N ratio
0.30% THD
EGA 900D
1 X 225 RMS 4 Ohm
1 X 450 RMS 2 Ohm
1 X 900 RMS 1 Ohm
Dimensions 12.6" L X 2.2"
H X 11" W
EGA 1400D
1 X 350 RMS 4 Ohm
1 X 700 RMS 2 Ohm
1 X 1400 RMS 1 Ohm
Dimensions 15" L X 2.2"
H X 11" W
EGA 1700D
1 X 425 RMS 4 Ohm
1 X 850 RMS 2 Ohm
1 X 1700 RMS 1 Ohm
Dimensions 17.7" L X 2.2"
H X 11" W
|
|
Rubicon Series
|
Awards:
“Auto Sound Grand Prix Product of the Year Award” by Audio Video Int’l
“Auto Sound Grand Prix Special Recognition Award” by Audio Video Int’l
“Car Hi Fi Silver Award” by Car Hi Fi magazine
“Auto Sound Grand Prix Product of the Year Award” by Audio Video Int’l For
the second time
“Car Hi Fi Gold Award” from Car Hi Fi magazine
“Auto Sound Grand Prix Product of the Year Award” by Audio Video Int’l for
the third time
“In Cars Gold Award” from In Cars magazine |

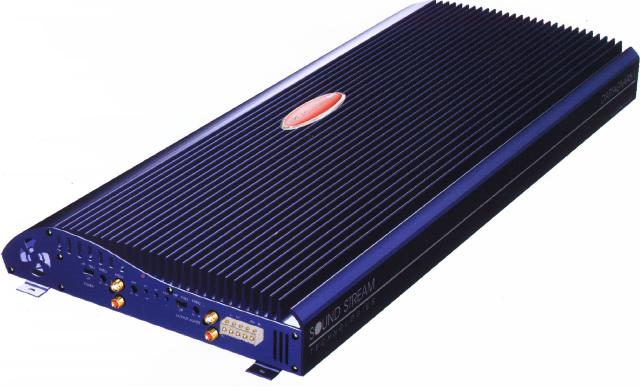

Rubicon II Series
1/2 Channel
RUB-Angina
RUB500-1
RUB300-2
RUB500-2
RUB1000-2
Discontinued
New 2006 Models
|
|
Fully regulated,
MOSFET power supply
RUBI™ (Rapid-Use Branched
Impulse) Proprietary power supply topology
STACT™ (STabilized Apex Current
Topology) Reduces power supply stress by 50%
Auto High Current™ Matches
amplifier for virtually every load application
Chassisink™ Transistors are
located between circuit board and heatsink for optimal heat dissipation
Triple Darlington output
circuitry
Vortex induction fan for
thermal management
Bi-Linear built-in selectable
2-way crossovers for amplifier and RCA line output
Continuously variable 12dB
low-pass crossover (30Hz to 4kHz)
Continuously variable 12dB
high-pass crossover (30Hz to 4kHz)
Hawkins Bass Control™ Proprietary
bass equalization topology
Harmonic Bass Alignment™
Produces tighter and more accurate bass reproduction
Trident™ amplifier protection
topology
IDI™ (Intelligent Distress
Indicator) gives visual amplifier protection status
Balanced Line inputs for
the highest level of noise rejection
Platinum RCA input and output
Platinum power inputs
Tri-mode operation
10Hz – 30 kHz frequency response
>100dB S/N ratio
• >200 Damping
0.15 - 12.0V Input sensitivity
0.05% THD
- RUB-ANGINA
- 1 X 100 RMS 4 Ohm
- 1 X 200 RMS 2 Ohm
- Dimensions 7" L X 2.25"
H X 5.25" W
- RUB500-1
- 1 X 200 RMS 4 Ohm
- 1 X 400 RMS 2 Ohm
- Dimensions 12" L X 2.25"
H X 8.5" W
- RUB300-2
- 2 X 75 RMS 4 Ohm
- 2 X 150 RMS 2 Ohm
- 1 X 300 RMS 4 Ohm Mono
- Dimensions 11" L X 2.25"
H X 12" W
- RUB500-2
- 2 X 100 RMS 4 Ohm
- 2 X 250 RMS 2 Ohm
- 1 X 500 RMS 4 Ohm Mono
- Dimensions 16" L X 2.25"
H X 12" W
- RUB1000-2
- 2 X 400 RMS 4 Ohm
- 2 X 160 RMS 2 Ohm
- 1 X 320 RMS 4 Ohm Mono
- Dimensions 16" L X 2.25"
H X 12" W
|

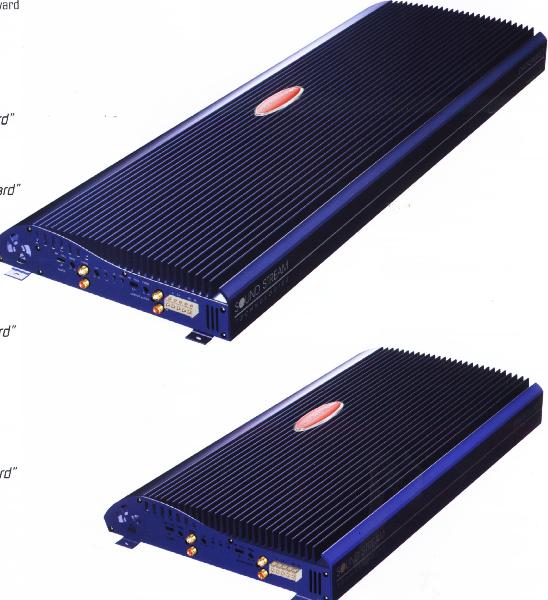

Rubicon II Series
4/5 Channel
RUB600-4
RUB550-5
Discontinued
New 2006 Models
|
|
Fully regulated,
MOSFET power supply
RUBI™ (Rapid-Use Branched
Impulse) Proprietary power supply topology
STACT™ (STabilized Apex Current
Topology) Reduces power supply stress by 50%
Auto High Current™ Matches
amplifier for virtually every load application
Chassisink™ Transistors are
located between circuit board and heatsink for optimal heat dissipation
Triple Darlington output
circuitry
Vortex induction fan for
thermal management
Bi-Linear built-in selectable
2-way crossovers for amplifier and RCA line output
Continuously variable 12dB
low-pass crossover (30Hz to 4kHz)
Continuously variable 12dB
high-pass crossover (30Hz to 4kHz)
Hawkins Bass Control™ Proprietary
bass equalization topology
Harmonic Bass Alignment™
Produces tighter and more accurate bass reproduction
Trident™ amplifier protection
topology
IDI™ (Intelligent Distress
Indicator) gives visual amplifier protection status
Balanced Line inputs for
the highest level of noise rejection
Platinum RCA input and output
Platinum power inputs
Tri-mode operation
10Hz – 30 kHz frequency response
>100dB S/N ratio
>200 Damping
0.15 - 12.0V Input sensitivity
0.05% THD
RUB600-4
4 X 80 RMS 4 Ohm
4 X 160 RMS 2 Ohm
2 X 320 RMS 4 Ohm
Dimensions 17.25" L X 2.25"
H X 12" W
RUB550-5
4 X 40 RMS + 1 X 150 4 Ohm
4 X 75 RMS + 1 X 250 2 Ohm
2 X 200 + 1 X 400
RMS 4 Ohm
Dimensions 15" L X 2.25"
H X 12" W
|
Van Gogh Series
2/4/5 Channel
VGA 400.2
VGA 600.2
VGA 800.2
VGA 1600.2
VGA 320.4
VGA 500.4
VGA 800.5
Discontinued
New 2006 Models
|
|
RUBI™ (Rapid-Use
Branched Impulse) Proprietary power supply topology
STACT™ (STabilized Apex Current
Topology) Reduces power supply stress by 50%
Trident™ Amplifier protection
topology
Ultra Low ESR Capacitance
bank ensures rapid power delivery for dynamic peaks
Continuously variable 12dB
low-pass crossover (30Hz to 4kHz)
IDI™ (Intelligent Distress
Indicator) gives visual amplifier protection status
Triple Darlington OUtput
Circuitry
Continuously variable high
and low pass crossovers with 12 dB / Octave slope (30-4KHz)
Vortex induction fan for
thermal management
Platinum RCA Line inputs
and outputs
Platinum 4 gauge power inputs
Rail stabilization protection
circuitry
Tri-mode operation
BIP™ Bias Input Protection
Harmonic Bass Alignment™
Produces tighter, more accurate bass reproduction
Bi-Linear selectable 2 way
crossovers for amplifiers and line outs
10Hz - 50 KHz Frequency response
>115dB S/N ratio
>500 Damping
.15V - 12.0V Input sensitivity
0.02% THD
VGA 400.2
2 X 100 RMS 4 Ohm
2 X 200 RMS 2 Ohm
1 X 400 RMS 4 Ohm Mono
Dimensions 11.8" L X 2.6"
H X 11.2" W
VGA 600.2
2 X 150 RMS 4 Ohm
2 X 300 RMS 2 Ohm
1 X 600 RMS 4 Ohm Mono
Dimensions 12.6" L X 2.6"
H X 11.2" W
VGA 800.2
2 X 200 RMS 4 Ohm
2 X 400 RMS 2 Ohm
1 X 800 RMS 4 Ohm Mono
Dimensions 15.8" L X 2.6"
H X 11.2" W
VGA 1600.2
2 X 400 RMS 4 Ohm
2 X 800 RMS 2 Ohm
1 X 1600 RMS 4 Ohm Mono
Dimensions 18.9" L X 2.6"
H X 11.2"" W
VGA 320.4
4 X 80 RMS 4 Ohm
4 X 160 RMS 2 Ohm
2 X 320 RMS 4 Ohm
Dimensions 13.8" L X 2.6"
H X 11.2"" W
VGA 500.4
4 X 125 RMS 4 Ohm
4 X 250 RMS 2 Ohm
2 X 500 RMS 4 Ohm
Dimensions 15.8" L X 2.6"
H X 11.2" W
VGA 800.5
4 X 50 RMS + 1 X 200 4 Ohm
4 X 100 RMS + 1 X 400 2
Ohm
2 X 200 + 1 X 400
RMS 4 Ohm
Dimensions 18.9" L X 2.6"
H X 11.2"" W
|
|
Tarantula Series
|
Awards:
“Best of the Best” at CES by Mobile Sound magazine
“Autosound Grand Prix Technology Award” by Audio Video international
“Autosound Grand Prix Product of the Year Award” by Audio Video Int’l |

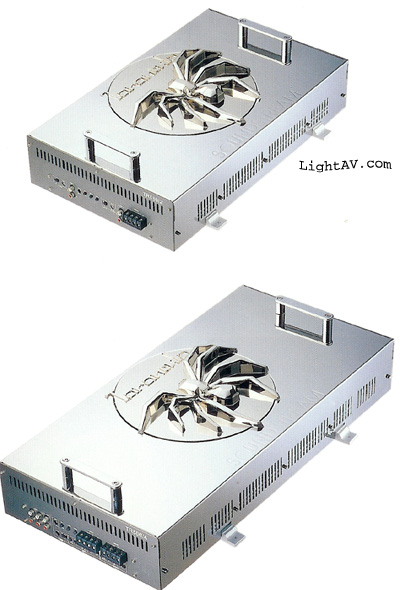

Tarantula Series
2/4/5 Channel
TR 700/2
TR 880/2
TR 1600/2
TR 500/4
TR 800/5
TR 1760/D
Discontinued
New 2006 Models
|
|
RUBI™ (Rapid-Use
Branched Impulse) Proprietary power supply topology
STACT™ (STabilized Apex Current
Topology) Reduces power supply stress by 50%
Trident™ Amplifier protection
topology
Tone Sweep Calibration Optimizes
the power supply to the connected speaker load
Hawkins Bass Control™ Proprietary
bass equalization topology
Continuously variable 12dB
low-pass crossover (30Hz to 4kHz)
Three Stage Input Level Indicators
Output Clip Indicators
IDI™ (Intelligent Distress
Indicator) gives visual amplifier protection status
Large Mouth Bass remote gain
control
Continuously variable phase
alignment (0° - 180°)
Vortex induction fan for
thermal management
Differentially Balanced RCA
Input
Fully Balanced 6-pin DIN
Input
RCA Line Output
Gold plated 1/0 gauge power
inputs
Harmonic Bass Alignment™
Produces tighter, more accurate bass reproduction
Discrete Balanced Class A
Drive Boards maximizes linearity on low impedance loads
Drive Delay 2™ Eliminates
turn on and turn off pops & noises
Chassisink™ Transistors are
located between circuit board and heatsink for optimal heat dissipation
Power Grid™ Design optimizes
current delivery to and from the power supply
20Hz – 500 Hz Frequency response
>115dB S/N ratio
>500 Damping
300mV – 5.0V Input sensitivity
0.02% THD
All Chrome Plated
TR 700/2
2 X 175 RMS 4 Ohm
2 X 350 RMS 2 Ohm
1 X 700 RMS 4 Ohm Mono
Dimensions 19.5" L X 4"
H X 12.25" W
TR 880/2
2 X 220 RMS 4 Ohm
2 X 440 RMS 2 Ohm
1 X 880 RMS 4 Ohm Mono
Dimensions 19.5" L X 4"
H X 12.25" W
TR 1600/2
2 X 400 RMS 4 Ohm
2 X 800 RMS 2 Ohm
1 X 1600 RMS 4 Ohm Mono
Dimensions 30" L X 4" H
X 12.25" W
TR 500/4
4 X 125 RMS 4 Ohm
4 X 250 RMS 2 Ohm
2 X 500 RMS 4 Ohm
Dimensions 24" L X 4" H
X 12.25" W
TR 800/5
4 X 50 RMS + 1 X 200 4 Ohm
4 X 100 RMS + 1 X 400 2
Ohm
2 X 200 + 1 X 400
RMS 4 Ohm
Dimensions 24" L X 4" H
X 12.25" W
FEATURES: (TR 1760/D DIGITAL CLASS
AMPLIFIER)
TST™ (Twin Stack Technology)
Allows 2 amplifiers to drive one voice coil effectively doubling the power
Fully regulated, MOSFET power
supply
PWM circuitry
High quality FR-4 circuit
board
Satellite Power Gain (remote
gain control)
Continuously variable 24dB
low-pass crossover (50Hz to 150Hz)
Continuously variable 24dB
subsonic filter (50Hz to 150Hz)
Variable 0 – 18dB subwoofer
equalizer @ 40Hz
Continuously variable phase
alignment (0° - 180°)
Tri-guard amplifier protection
Intelligent Distress indicator
(IDI)
Platinum RCA input and output
Platinum 1/0 gauge power
inputs
1-ohm stable
5Hz – 250Hz Frequency response
>80dB S/N ratio
0.30% THD
All Chrome Plated
TR1760/D
1 X 440 RMS 4 Ohm
1 X 880 RMS 2 Ohm
1 X 1760 RMS 1 Ohm
Dimensions 19.5" L X 4"
H X 12.25" W
|
|
Tarantula
Discontinued
New 2006 Models
|
|
RUBI™ (Rapid-Use
Branched Impulse) Proprietary power supply topology
STACT™ (STabilized Apex Current
Topology) Reduces power supply stress by 50%
Trident™ Amplifier protection
topology
Tone Sweep Calibration Optimizes
the power supply to the connected speaker load
Hawkins Bass Control™ Proprietary
bass equalization topology
Continuously variable 12dB
low-pass crossover (30Hz to 4kHz)
Three Stage Input Level Indicators
Output Clip Indicators
IDI™ (Intelligent Distress
Indicator) gives visual amplifier protection status
Large Mouth Bass remote gain
control
Continuously variable phase
alignment (0° - 180°)
Vortex induction fan for
thermal management
Differentially Balanced RCA
Input
Fully Balanced 6-pin DIN
Input
RCA Line Output
Gold plated 1/0 gauge power
inputs
Harmonic Bass Alignment™
Produces tighter, more accurate bass reproduction
Discrete Balanced Class A
Drive Boards maximizes linearity on low impedance loads
Drive Delay 2™ Eliminates
turn on and turn off pops & noises
Chassisink™ Transistors are
located between circuit board and heatsink for optimal heat dissipation
Power Grid™ Design optimizes
current delivery to and from the power supply
20Hz – 500 Hz Frequency response
>115dB S/N ratio
>500 Damping
300mV – 5.0V Input sensitivity
0.02% THD
All Chrome Plated
- Tarantula
- 1 X 2000 RMS 4 Ohm
- 1 X 2000 RMS 2 Ohm
- Dimensions 19" L X 5.5"
H X 14" W
|
|
DaVinci
|
Awards
Best of the Best at
CES by Mobile Sound Magazine
Selected Innovative Amplifier
of the Year by Auto Sound and Security Magazine |
|
Davinci
Discontinued
New 2006 Models
|
|
Leonardo
Davinci was the first to put art into technology. We
have applied that principle
to the award winning DaVinci amplifier.
It is a work of art that
can drive every speaker inyour system while handling all of the necessary
crossover
duties and setting your system
apart from all others as the ultimate show piece.
The 1300-watt DaVinci comes
in a 24-karat gold plated casing that exudes beauty, power and versatility.
The art of engineering never
sounded so good.
Auto High Current™ (subwoofer
channel only) Adjusts for maximum power output to the impedance
Continuously Variable Crossover
Is a 4, 3 or 2-way crossovers with 12 dB highpass and bandpass filters along
with a 24 dB lowpass
filter.
Rear Channel De-emphasis
at 6 dB attenuation along to provide a more realistic listening experience.
Power Grid™ Design optimizes
current delivery to and from the power supply
Ultra-Low ESR Capacitance
Bank Ensures rapid power delivery for dynamic peaks.
Vari-quiet™ Cooling fan maintains
safe operating temperatures
Unregulated Power Supply
For higher dynamic headroom
Fault Monitor Power LED
Seven Dual Discrete Class
A Drive Stages Maximizes linearity into any load.
Drive Delay 2™ Eliminates
turn on and turn off pops & noises
Fully-Balanced Class A Inputs
for professional quality performance and noise cancellation.
LSE.Q Fully adjustable subwoofer
equalization circuit
18k Gold Plated
7 Channels
RMS @ 4 ohm, 50 x 4 +; 100
x 2 +; 200 x 1
RMS @ 2 ohm, 100 x 4 +;
200 x 2 + ; 400 x 1
RMS @ 1 ohm, 500 x 1 (sub
only)
Dimensions: 19” x 14” x
5.5”
|
Human Reign
2/4
New 2006 Models
|
|
Fully regulated,
MOSFET power supply
RUBI™ (Rapid-Use Branched
Impulse) Proprietary power supply topology
STACT™ (STabilized Apex Current
Topology) Reduces power supply stress by 50%
Auto High Current™
Matches the amplifier for virtually every load application
Chassisink™ Transistors
are located between circuit board and heatsink for optimal heat dissipation
Triple Darlington output
circuitry
Vortex induction fan
for thermal management
Bi-Linear built-in
selectable 2-way crossovers for amplifier and RCA line output
Continuously variable
12dB low-pass crossover (30Hz to 4kHz)
Continuously variable
12dB high-pass crossover (30Hz to 4kHz)
Hawkins Bass Control™
Proprietary bass equalization topology
Harmonic Bass Alignment™
Produces tighter and more accurate bass reproduction
Trident™ amplifier
protection topology
IDI™ (Intelligent Distress
Indicator) gives visual amplifier protection status
Balanced Line inputs
for the highest level of noise rejection
Platinum RCA input
and output
Platinum power inputs
Tri-mode operation
10Hz – 40 kHz Frequency
response
>120dB S/N ratio
>500 Damping
0.15 – 12.0V Input
sensitivity
0.02% THD
Human Reign
2
2 X 400 RMS 4 Ohm
2 X 800 RMS 2 Ohm
1 X 1600 RMS 4 Ohm Mono
Dimensions 25" L X 7" H
X 14" W
Human Reign 4
4 X 200 RMS 4 Ohm
4 X 250 RMS 2 Ohm
2 X 500 RMS 4 Ohm Mono
Dimensions 25" L X 7" H
X 14" W
|
|

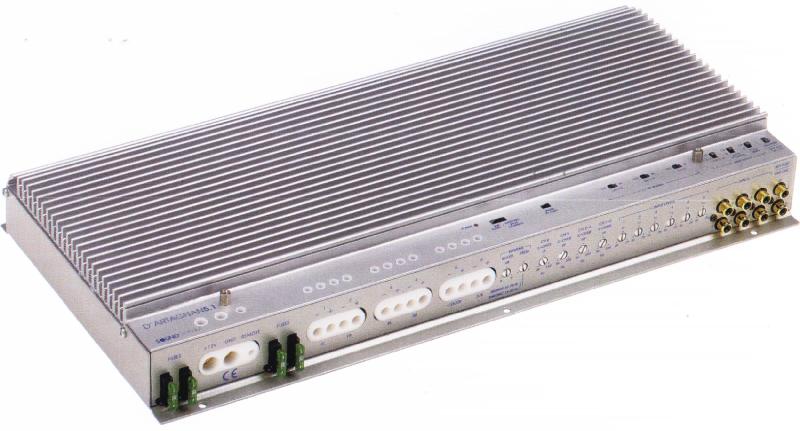

D'Artagnan 5.1
Discontinued
|
|
RUBI™ (Rapid-Use
Branched Impulse) Proprietary power supply topology
STACT™ (STabilized Apex Current
Topology) Reduces power supply stress by 50%
Auto High Current™ Matches
the amplifier for virtually every load application
Chassisink™ Transistors are
located between circuit board and heatsink for optimal heat dissipation
Variable Input level controls
for exact input match to amplifier
Continuously variable 24dB
low-pass crossover (40Hz to 220Hz)
Continuously variable 12dB
high-pass crossover (50Hz to 200Hz)
Hawkins Bass Control™ Proprietary
bass equalization topology
Harmonic Bass Alignment™
Produces tighter and more accurate bass reproduction
Continuously variable subsonic
filter (13Hz to 30Hz)
Trident™ amplifier protection
topology
IDI™ (Intelligent Distress
Indicator) gives visual conformation of protection status
Balanced Line inputs for
the highest level of noise rejection • Platinum RCA input and output
Platinum 4 gauge power inputs
10Hz – 30 kHz frequency response
>100dB S/N ratio• 0.02%
THD
- 6 Channels
- RMS @ 4 ohm 65 x 5 + 200
x 1
- RMS @ 2 ohm 100 x 5 + 400
x 1
- RMS @ 1 ohm 500 x 1 (sub
only)
- Dimensions: 19” x 11.5”
x 2.25”
|
<
>
