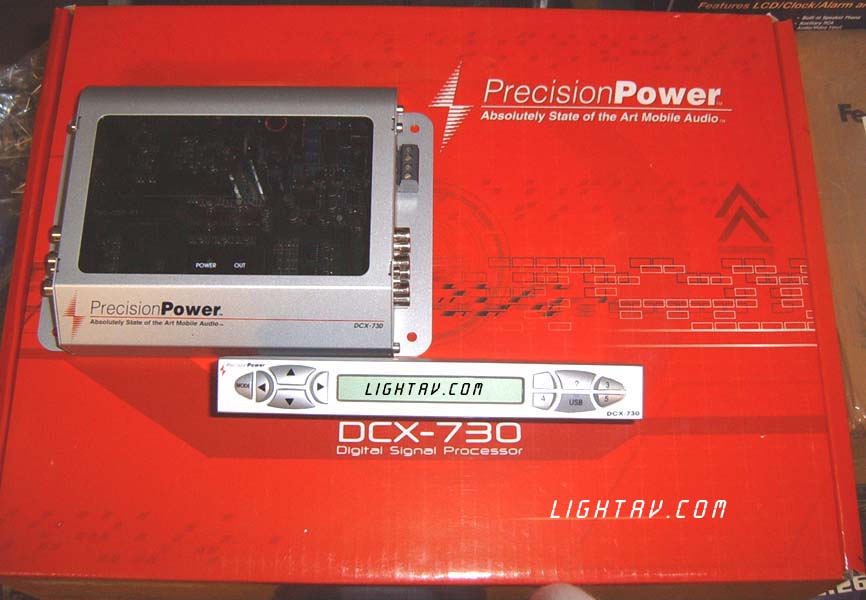

DCX-730
6 Channel
2 Piece Digital Sound Processor
US$ Discontinued
|
|
- Analog
- 6 Channel RCA Input Jacks
- 6 Channel RCA Output Jacks
@ 7.5V RMS Max
- Output THD+N <.05%, 30KHz
bandwidth
- Input Topology PPI balanced
differential
- Signal to Noise Ratio >85dB
A Weighted @ Max Out
- Frequency Response 20-20KHz
+/- 0.25 dB
- Input Impedance 10K Ohms
- Input Sensitivity 250 mV
- 12V RMS (12V RMS with -12 db attenuation)
- Digital Signal Processing (DSP)
- DSP Crossover incorporating
6db/12db/18db/24db per octave slopes
- Butterworth/Linkwitz-Riley
Filters
- Low Pass - 20-20Khz
- High Pass - 20-20Khz
- Band Pass - 20-20Khz
- Q-Bass Variable 0 - 18 dB
boost @ 20-150 Hz
- Variable Q 0.1-9.0
- Delay Variable 0-70 Msec
each channel
- EQ 7 Band parametric EQ/LO/HIGH
shelving, each channel +/- 18 dB, variable Q 0.1-9.0
- Presets 5 User Presets
- Sample Rate 48 KHz
- Bit Depth 24 Bit effective
resolution
- Input/Output Delay <3
msec with all filters flat
- Control Interface
- Built-In Display : 2 line
X 16 character LCD display with blue backlight
- Keyboard : 10 front panel
buttons
- USB Input
- Power
- Supply Voltage 9-16 Volt
- Remote Power Output
- 2-second delay - max current
100 mA
- Fuse 2.5A
|
$799.95 |
