LightAV.com
Price
Product Shot
Description
Retail
Price

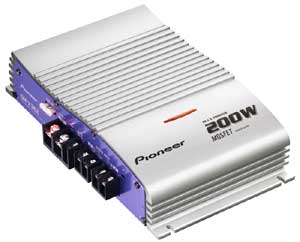

GM-X362

US$ Discontinued
  • Continuous Power (14.4V): 40Wx2 (4ohm), 50Wx2 (2ohm), 100Wx1 (4ohm)
  • Max Power (14.4V): 80Wx2 (4ohm), 200Wx1 (4ohm)
  • Frequency Response: 10Hz - 50kHz (0,-1dB)
  • Total Harmonic Distortion: 0.008% (1kHz, 4ohm)
  • Signal-to-Noise Ratio: 100dB (IHF-A)
  • Dimensions: 11" x 2-5/16" x 6-3/16"
  • PWM MOSFET Power Supply
  • Bridgeable 1/2/3 Channel Capability
  • Balanced Isolator Input Circuit
  • Screw-Type Power/Ground Terminals
  • Screw-Type Speaker Terminals
  • RCA Inputs
  • Hi-Volt Input Level Control (400mV-6.5V)
  • Molex Type Speaker Level Inputs
  • Selectable LPF: 80Hz, -12dB/oct. (LPF)
 $120

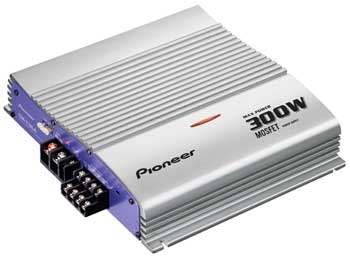

GM-X364

US$ Discontinued
  • PWM MOSFET Power Supply
  • Continuous Power (14.4V): 35Wx4 (4ohm), 40Wx4 (2ohm), 70Wx2 (4ohm)
  • Max Power (14.4V): 70Wx4 (4ohm), 140Wx2 (4ohm)
  • Frequency Response: 10Hz - 50kHz (0,-1dB)
  • Total Harmonic Distortion: 0.008% (1kHz, 4ohm)
  • Signal-to-Noise Ratio: 100dB (IHF-A)
  • Dimensions: 11" x 2-5/16" x 9-5/16"
  • Bridgeable 2/3/4 Channel Capability
  • Balanced Isolator Input Circuit
  • Screw-Type Power/Ground Terminals
  • Screw-Type Speaker Terminals
  • RCA Inputs (4 Channel)
  • RCA Outputs (Full Range)
  • Hi-Volt Input Level Control (400mV-6.5V)
  • Molex Type Speaker Level Inputs (4 Channel)
  • Selectable Crossover: 80Hz, -12dB/oct. LPF or 80Hz, -12dB/oct. HPF (A,B Ch.)
 $200

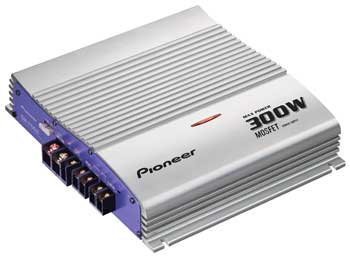

GM-X562

US$ 1Discontinued
  • Continuous Power (14.4V): 65Wx2 (4ohm), 75Wx2 (2ohm), 150Wx1 (4ohm)
  • Max Power (14.4V): 100Wx2 (4ohm), 300Wx1 (4ohm)
  • Frequency Response: 10Hz - 50kHz (0,-1dB)
  • Total Harmonic Distortion: 0.008% (1kHz, 4ohm)
  • Signal-to-Noise Ratio: 100dB (IHF-A)
  • Dimensions: 11" x 2-5/16" x 9-5/16"
  • PWM MOSFET Power Supply
  • Bridgeable 1/2/3 Channel Capability
  • Balanced Isolator Input Circuit
  • Gold-Plated Screw-Type Speaker/Ground Terminals
  • Gold-Plated Screw-Type Speaker Terminals
  • Gold-Plated RCA Inputs
  • Hi-Volt Input Level Control (400mV-6.5V)
  • Molex Type Speaker Level Inputs
  • Selectable LPF: 80Hz, -12dB/oct.
 $170

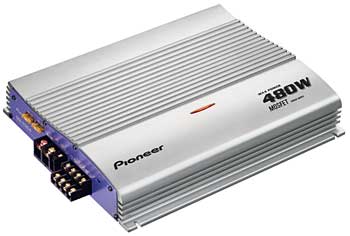

GM-X564

US$ Discontinued
  • Continuous Power (14.4V): 50Wx4 (4ohm), 60Wx4 (2ohm), 120Wx2 (4ohm)
  • Max Power (14.4V): 100Wx4 (4ohm), 240Wx2 (4ohm)
  • Frequency Response: 10Hz - 50kHz (0,-1dB)
  • Total Harmonic Distortion: 0.008% (1kHz, 4ohm)
  • Signal-to-Noise Ratio: 100dB (IHF-A)
  • Dimensions: 11" x 2-5/16" x 12-3/4"
  • PWM MOSFET Power Supply
  • Bridgeable 2/3/4 Channel Capability
  • Balanced Isolator Input Circuit
  • Gold-Plated Screw-Type Power/Ground Terminals
  • Gold-Plated Screw-Type Speaker Terminals
  • Gold-Plated RCA Inputs (4 Channel)
  • Gold-Plated RCA Outputs (Full Range)
  • Hi-Volt Input Level Control (400mV-6.5V)
  • Variable Crossovers (separate A B channel crossovers): 40-120Hz, -12dB/oct. (LPF/HPF)
 $280

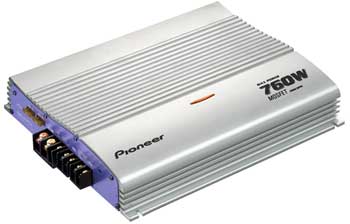

GM-X962


US$ Discontinued
  • 2-Channel Amplifier
  • Bridgeable 1/2/3 Channel Capability
  • Frequency Response: 10Hz - 50kHz (+0,-1dB)
  • 125Wx2 (4 Ohm) RMS , 2 X 190 (2 Ohm) RMS
  • 380Wx1 (4 Ohm) , 760W Peak
  • Total Harmonic Distortion: 0.008% (1kHz, 4ohm)
  • Signal-to-Noise Ratio: 100dB (IHF-A)
  • Selectable Crossover  80Hz, -12dB/oct. (LPF)
  • Balanced Isolator Input Circuit
  • PWM Regulated MOSFET Power Supply
  • Bass Boost (40-120Hz)
  • Variable Crossover (40-120Hz, -12dB LPF/HPF)
  • Hi-Volt Input Level Control (400mV-6.5V)
  • Dimensions: 11" x 2-5/16" x 12-3/4"
 $270

GM-D500M

US$ Discontinued


  • Continuous Power (14.4V): 300W 4 Ohms, 500 W 2 Ohms
  • Max Power (14.4V): 600W (4ohm), 500W (2 ohm)
  • Frequency Response: 5Hz - 240Hz (+.05,-3dB)
  • Total Harmonic Distortion: 0.03% (120Hz, 4ohm)
  • Variable crossover: 40-240 Hz 24dB /octave LPF
  • PWM Regulated MOSFET Power Supply
  • Class D Amplifier
  • Bass Level control
  • Gold-Plated Screw-Type Power/Ground Terminals
  • Gold-Plated Screw-Type Speaker Terminals
  • Gold-Plated RCA Inputs
  • Dimensions: 10-9\16" x 2-1/16" x 9-13/16"
 $230
