LightAV.com
Price
|
Product Shot
Click for larger picture
|
Description
|
Retail
Price
|

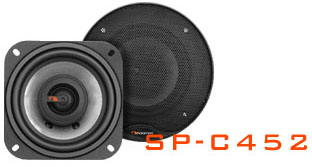

SP-C452
US$ Not Available
|
|
-
Characteristics: 4" stamped steel
basket
-
Mid-Bass Driver: Polypropylene/aluminum
vapor deposited cone
-
Tweeter: .75" soft-dome, swivel
mount
-
Crossover: External 12dB/octave,
mylar Ferrofluid cooling
-
Frequency Response: 105Hz - 20kHz
-
Sensitivity: 85dB
-
Impedance: 4 Ohms
-
Power Handling: 20 Watts RMS 40
Watts Peak
-
(4" x 6" adaptor included)
|
$ |
SP-C522
US$ Not Available
|
|
-
5.25" stamped steel basket
-
Mid-Bass Driver: Polypropylene/aluminum
vapor deposited cone
-
Tweeter: .75" soft-dome, swivel
mount
-
Crossover: External 12dB/octave,
mylar Ferrofluid cooling
-
Frequency Response: 85Hz - 20kHz
-
Sensitivity: 88dB
-
Impedance: 4 Ohms
-
Power Handling: 30 Watts RMS 60
Watts Peak
|
$ |
SP-C572
US$ Not Available
|
|
-
5x7/6x8" stamped steel basket
-
Mid-Bass Driver: Polypropylene/aluminum
vapor deposited cone
-
Tweeter: .75" soft-dome, swivel
mount
-
Crossover: External 12dB/octave,
mylar Ferrofluid cooling
-
Frequency Response: 75Hz - 20kHz
-
Sensitivity: 88dB
-
Impedance: 4 Ohms
-
Power Handling: 40 Watts RMS 80
Watts Peak
|
$ |
SP-C652
US$ Not Available
|
|
-
6.5" stamped steel basket
-
Mid-Bass Driver: Polypropylene/aluminum
vapor deposited cone
-
Tweeter: .75" soft-dome, swivel
mount
-
Crossover: External 12dB/octave,
mylar Ferrofluid cooling
-
Frequency Response: 70Hz - 20kHz
-
Sensitivity: 87dB
-
Impedance: 4 Ohms
-
Power Handling: 45 Watts RMS 90
Watts Peak
|
$ |
SP-C692
US$ Not Available
|
|
-
6x9" stamped steel basket
-
Mid-Bass Driver: Polypropylene/aluminum
vapor deposited cone
-
Tweeter: 1" soft-dome, swivel mount
-
Crossover: External 12dB/octave,
mylar Ferrofluid cooling
-
Frequency Response: 40Hz - 20kHz
-
Sensitivity: 90dB
-
Impedance: 4 Ohms
-
Power Handling: 55 Watts RMS 110
Watts Peak
|
$ |
SP-S5200
US$ Not Available
|
|
-
2-way, component system
-
5.25" mid-bass, 1" tweeter,external
crossover
-
Mid-Bass Driver:
-
Glass-aramide composite cone with
butyl rubber surround, ferrite magnet, 25mm OFC wire voice coil with synthetic
poly-cotton spider
-
Frequency Response: 90Hz-9kHz
-
Sensitivity: 89dB
-
Impedance: 4 Ohms
-
Power Handling: 40 Watts RMS 80
Watts Peak
-
Mounting Depth: 2.25"
-
Tweeter:
-
1" soft-dome, fabric diaphragm,
neodymium blend magnet, ferrofluid cooling
-
Frequency Response: 2.5kHz - 20kHz
-
Sensitivity: 88dB
-
Impedance: 4 Ohms
-
Mounting: Surface, flush or angle
-
Crossover: External 24dB/ocatave,
mylar capacitator/Iron core inductor, 3 position tweeter level control,
tweeter protection
-
Crossover Frequency: 3.0kHz
|
$ |
SP-S6500
US$ Not Available
|
|
-
2-way, component system
-
6.5" mid-bass, 1" tweeter,external
crossover
-
Mid-Bass Driver:
-
Glass-aramide composite cone with
butyl rubber surround, ferrite magnet, 25mm OFC wire voice coil with synthetic
poly-cotton spider
-
Frequency Response: 64Hz-4kHz
-
Sensitivity: 90dB
-
Impedance: 4 Ohms
-
Power Handling: 70 Watts RMS 120
Watts Peak
-
Mounting Depth: 2.68" (68mm)
-
Tweeter:
-
1" soft-dome, fabric diaphragm,
neodymium blend magnet, ferrofluid cooling
-
Frequency Response: 2.5kHz - 20kHz
-
Sensitivity: 88dB
-
Impedance: 4 Ohms
-
Mounting: Surface, flush or angle
-
Crossover: External 24dB/ocatave,
mylar capacitator/Iron core inductor, 3 position tweeter level control,
tweeter protection
-
Crossover Frequency: 3.0kHz
|
$ |

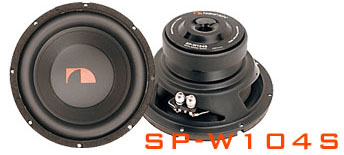

SP-W104S
US$ Not Available
|
|
-
10"
-
Sensitivity: 88.7dB
-
Power Handling:
RMS: 250 Watts Peak: 400 Watts
-
Frequency Response: 25Hz-500Hz
-
Nominal Impedance: 4 Ohms
-
Cone Material: Polypropylene
-
Basket Material: Steel
-
Surround Material: 2" Rubber
-
Spider Material: Poly/Cotton
-
Magnet Weight: 100oz.
-
Voice Coil: Single
-
Free-Air Resonance (Fs): 25.612Hz
|
$ |

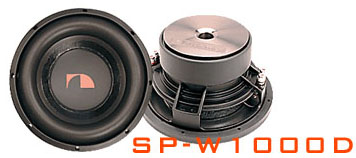

SP-W1000D
US$ Not Available
|
|
-
10"
-
Sensitivity: 86.5dB
-
Power Handling:
RMS: 350 Watts Peak: 550 Watts
-
Frequency Response: 20Hz-500Hz
-
Nominal Impedance: 2 x 6 Ohms
-
Cone Material: Pulped Paper
-
Basket Material: Aluminum
-
Surround Material: 2.25" Rubber
-
Spider Material: Nomex
-
Magnet Weight: 120oz.
-
Voice Coil: Dual
-
Free-Air Resonance (Fs): 34.390Hz
|
$ |
SP-W124S
US$ Not Available
|
|
-
12"
-
Sensitivity: 91dB
-
Power Handling: RMS: 350 Watts
Peak: 500 Watts
-
Frequency Response: 20Hz-500Hz
-
Nominal Impedance: 4 Ohms
-
Cone Material: Polypropylene
-
Basket Material: Steel
-
Surround Material: 2" Rubber
-
Spider Material: Poly/Cotton
-
Magnet Weight: 100oz.
-
Voice Coil: Single
-
Free-Air Resonance (Fs): 23.239Hz
|
$ |

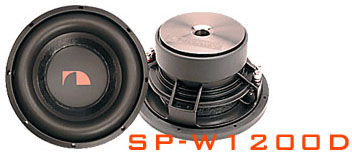

SP-W1200D
US$Not Available
|
|
-
12"
-
305mm
-
Sensitivity: 88dB
-
Power Handling:
-
Watts RMS: 450 Watts
-
Watts Peak: 650 Watts
-
Frequency Response: 20Hz-500Hz
-
Nominal Impedance: 2 x 6 Ohms
-
Cone Material: Pulped Paper
-
Basket Material: Aluminum
-
Surround Material: 2.25" Rubber
-
Spider Material: Nomex
-
Magnet Weight: 120oz.
-
Voice Coil: Dual
-
Free-Air Resonance (Fs): 28.15Hz
|
$ |
