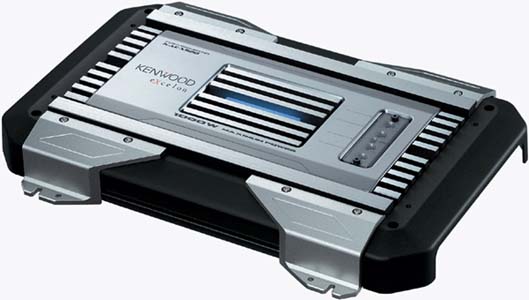

KAC-X520
US$ Discontinued
|
 |
-
POWER RATINGS
-
Bridged Power Output at 12V (1kHz,
0.5% THD): 360 Watts x 1
-
Bridged Power Output at 14.4V (1kHz,
0.5% THD): 500 Watts x 1
-
Maximum Output Power: 1000 Watts
-
Power Output at 2 Ohms, at 12V (1kHz,
0.5% THD): 180 Watts x 2
-
Power Output at 2 Ohms, at 14.4V
(1kHz, 0.5% THD): 250 Watts x 2
-
Power Output at 4 Ohms, at 12V (20Hz-20kHz,
0.05% THD): 90 Watts x 2
-
Power Output at 4 Ohms, at 14.4V
(20Hz-20kHz, 0.05% THD): 125 Watts x 2
-
AUDIO FEATURES
-
B.M.S. (Bass Management System):
Off/+6dB/+12dB/+18dB
-
B.M.S. Downshift: -30%, with Compatible
Head Unit
-
B.M.S. Head Unit Interface: with
Compatible Head Unit
-
Balanced Isolation Circuit
-
Glass Epoxy Printed Circuit Board
-
Quiet Turn-On
-
RCA Audio Inputs: Gold-Plated
-
RCA Line Outputs: Gold-Plated
-
Selectable Infrasonic Filter: Off/15/25Hz,
24dB per Octave
-
Speaker Connectors: Gold-Plated,
Large Screw-Type
-
Speaker Relay Protection
-
Stereo, Mono, or Tri-Mode Operation
-
Variable High-Pass Electronic Crossover:
50Hz - 200Hz, 12dB per Octave
-
Variable Low-Pass Electronic Crossover:
50Hz - 200Hz, 18dB per Octave
|
$500 |
|
KAC-X650D
US$ Discontinued
|
 |
-
POWER RATINGS
-
Bridged Power Output at 12V: 60
Watts x 2 (1kHz, 0.5%THD) 200 Watts x 1 (100Hz, 0.5ïD)
-
Bridged Power Output at 14.4V: 80
Watts x 2 (1kHz, 0.05% THD) 300 Watts x 1 (100Hz, 0.5ò0THD)
-
Maximum Output Power: 160 Watts
x 4 + 600 Watts x 1
-
Power Output at 2 Ohms, at 12V:
60 Watts x 4 (1kHz, 0.5% THD) + 200 Watts x 1 (100Hz, 0.5%THD)
-
Power Output at 2 Ohms, at 14.4V:
80 Watts x 4 (1kHz, 0.5%THD) + 300 Watts x 1 (100Hz, 0.5%THD)
-
Power Output at 4 Ohms, at 12V:
40 Watts x 4 (20Hz - 20kHz, 0.05%THD) + 150 Watts x 1 (100Hz, 0.5%THD)
-
Power Output at 4 Ohms, at 14.4V:
60 Watts x 4 (20Hz - 20kHz, 0.05ò0THD) + 200 Watts x 1 (100Hz, 0.5%THD)
-
AUDIO FEATURES
-
5, 4 or 3 Channels of Amplification
-
B.M.S. (Bass Management System):
Off/+6dB/+12dB/+18dB
-
B.M.S. Downshift: -30%, with Compatible
Head Unit
-
B.M.S. Head Unit Interface: with
Compatible Head Unit
-
Balanced Isolation Circuit
-
Class D Operation: Subwoofer Channel
-
Glass Epoxy Printed Circuit Board
-
Input Selector: A/AB/A-Sub/AB-Sub,
with Independent Gain
-
Quiet Turn-On
-
RCA Audio Inputs: Gold-Plated
-
Selectable Infrasonic Filter: Off/15/25Hz,
24dB per Octave
-
Speaker Connectors: Gold-Plated,
Large Screw-Type
-
Speaker Relay Protection
-
Variable High-Pass Electronic Crossover:
50Hz - 200Hz, 12dB per Octave
-
Variable Low-Pass Electronic Crossover:
50Hz - 200Hz, 24dB per Octave
|
$750 |
|
KAC-X810D
US$ Discontinued
|
 |
-
POWER RATINGS
-
Maximum Output Power: 1600 Watts
x 1
-
Power Output at 2 Ohms, at 12V (1kHz,
0.5% THD): 600 Watts x 1
-
Power Output at 2 Ohms, at 14.4V
(1kHz, 0.5% THD): 800 Watts x 1
-
Power Output at 4 Ohms, at 12V (20Hz-20kHz,
0.05% THD): 300 Watts x 1
-
Power Output at 4 Ohms, at 14.4V
(20Hz-20kHz, 0.05% THD): 400 Watts x 1
-
AUDIO FEATURES
-
B.M.S. (Bass Management System):
Off/+6dB/+12dB/+18dB
-
B.M.S. Downshift™: -30%, with Compatible
Head Unit
-
B.M.S. Head Unit Interface: with
Compatible Head Unit
-
Balanced Isolation Circuit
-
Class D Operation
-
Glass Epoxy Printed Circuit Board
-
Phase Switch: 0 Degrees/180 Degrees,
Selectable
-
Quiet Turn-On
-
RCA Audio Inputs: Gold-Plated
-
RCA Line Outputs: Gold-Plated
-
Selectable Infrasonic Filter: Off/15/25Hz,
24dB per Octave
-
Speaker Connectors: Gold-Plated,
Large Screw-Type
-
Speaker Relay Protection
-
Variable Band Reject Filter: 40Hz
- 200Hz, -6dB/-12dB (Selectable)
-
Variable Low-Pass Electronic Crossover:
50Hz - 200Hz, 24dB per Octave
|
$750 |
<
>
