LightAV.com
Price
|
Product Shot
|
Description
|
Retail
Price
|
W0 Series
8W0
10W0
12W0
15W0
US $Discontinued
|
|
- 8W0
- Sealed: .25 - .625cuft
- Ported: .50 - .875cuft
- Not Recommended for BandPass
Applications
- Power Handling: 100W
RMS
- Fs 34.1 Hz Xmax 0.266"
- 10W0
- Sealed: .60 -1.0 cubic
feet
- Ported: 1.0 - 1.5 cubic
feet
- Suitable for bandpass
applications
- Power Handling: 125W
- Fs 25.6 Hz Xmax 0.340"
- 12W0
- Sealed: 1.25-1.75 cubic
feet
- Ported: 1.75 - 3.0 cubic
feet
- Suitable for bandpass
applications
- Power Handling: 125W
- Fs 22.1 Hz Xmax 0.340"
- 15W0
- Sealed: 2.0 - 3.0cuft
- Ported: 3.50-4.50 cuft
- Suitable for bandpass
applications.
- Power Handling: 150W
- Fs 20.2 Hz Xmax 0.340"
|
$ |
W1 Series
10W1V2
10" Subwoofer
US $109.95
12W1V2
12" Subwoofer
US $119.95
15W1V2
15" Subwoofer
US $169.95
Need
a box for a W1
Click
Here
|
|
- 10W1V2
- Single 4 or 8 Ohm
- Power Handling:
150W RMS
- Xmax 0.375"
- Sealed: .625 cubic
feet
- Ported: 1.0 cubic
feet
- Mounting Depth 4.34"
- Weight 7.8 Lbs
- 12W1V2
- Single 4 or 8 Ohm
- Power Handling: 150W
RMS
- Xmax 0.375"
- Sealed: 1.25 cubic
feet
- Ported: 1.75 cubic
feet
- Mounting Depth 5.1"
- Weight 8.7 Lbs
- 13W1V2
- Single 4 or 8 Ohm
- Power Handling: 200W
RMS
- Xmax 0.475"
- Sealed: 1.5-1.75
cubic feet
- Ported: 2.625 cubic
feet
- Mounting Depth 5.9"
- Weight 11.3 Lbs
|
$ |
W3V2 Series
8W3v2
10W3v2
12W3v2
US $Discontinued
10W3v2-D4
10" 600W Dual 4 Ohm Subwoofer
US $119.95
1 Available 9/3/08
|
|
- 8W3v2
- Sealed: .3 - .5 cubic
feet
- Ported: .6 - .9 cubic
feet
- Power Handling: 125W
RMS
- Impedance Dual 2 Ohm,
Dual 4 Ohm, Dual 6 Ohm
- Xmax 0.39"/9.9mm
D4/D2, 0.42"/10.7mm D6
- 10W3v2
- Sealed: .6 -.9 cubic
feet
- Ported: 1.0 -1.5 cubic
feet
- Power Handling: 300W
RMS
- Impedance Dual 2 Ohm,
Dual 4 Ohm, Dual 6 Ohm
- Xmax 0.55"/13.9mm D2,
0.58"/14.7mm D4, 0.42"/10.7mm D6
- 12W3v2
- Sealed: 1.0 - 1.5 cubic
feet
- Ported: 2.0 - 3.0 cubic
feet
- Power Handling: 300W
RMS
- Impedance Dual 2 Ohm,
Dual 4 Ohm, Dual 6 Ohm
- Xmax 0.51"/13mm D2, 0.46"/11.8mm
D4, 0.47"/12mm D6
|
$ |
W6
Discontinued
|
|
- 8W6
- Sealed: .25-.375 cubic
foot
- Ported: .5 -.625 cubic
foot
- Impractical for use in
bandpass designs due to extremely
- small chambers and incredibly
long ports.
- Power Handling: 200W
RMS
- Fs 32.5Hz Xmax 0.388"
- 10W6
- Sealed: .5 - .875 cubic
foot
- Ported: .875 - 1.0 cubic
feet
- Power Handling: 300W
- Fs 23.2 Hz Xmax 0.469"
- 12W6
- Sealed: 1.0 - 1.5 cubic
feet
- Ported: 1.5-2.0 cubic
feet
- For bandpass enclosures
- Power Handling: 300W
- Fs 20.9 Hz ) Xmax 0.438"
- 15W6
- Sealed: 1.0-1.5 cubic
feet
- Ported: 1.75 -3.0 cubic
feet
- Impractical for use in
bandpass designs due to extremely
- small chambers and incredibly
long ports.
- Power Handling: 400W
- Fs 16.3 Hz Xmax 0.420"
- All W6 are Dual 6 ohm
voice coils
|
$ |

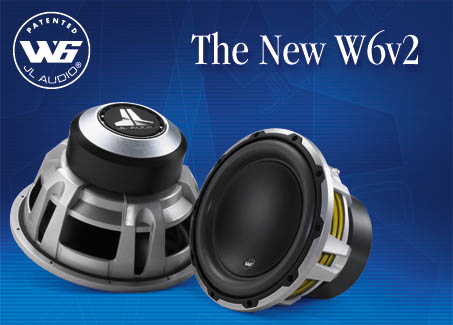

W6V2 Series
10W6v2
10"
Subwoofer
US $299.95
12W6v2
12" Subwoofer
US $339.95
|
|
- 10W6v2 10" Subwoofer
- Sealed: .50- 1.0 cubic
feet
- Ported: .75-1.25 cubic
feet
- Power Handling: 400W
- Impedance Dual 4 Ohm
- Xmax 0.6"/15.2mm
- 12W6v2 12" Subwoofer
- Sealed: .9-1.5 cubic
feet
- Ported: 1.25 -1.75 cubic
feet
- Power Handling: 400W
- Impedance Dual 4 Ohm
- Xmax 0.65" /16.5mm
|
$ |

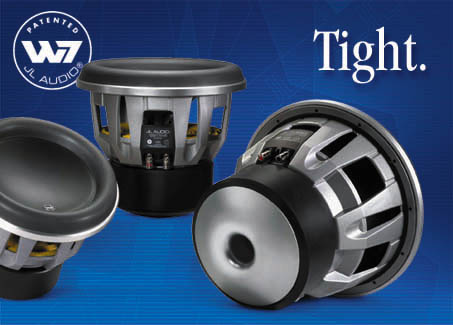

W7 Series
8W7
US $Special Order
10W7
US $424.95
12W7
US $549.95
13W7
US $639.95
Need
a box for a W7
Click
Here
|
|
- 10W7-3 10" Subwoofer
- Power Handling 500 Watts RMS
- Impedance 3 Ohms
- 23mm XMax
- Sealed Enclosure 1.00 Cu Ft -1.38 Cu Ft
- Ported Enclosure 1.13 Cu Ft -1.5 Cu Ft
- 12W7-3 12" Subwoofer
- Power Handling 750 Watts RMS
- Impedance 3 Ohms
- 29mm XMax
- Sealed Enclosure 1.25 Cu Ft -1.63 Cu Ft
- Ported Enclosure 1.5 Cu Ft -2.25 Cu Ft
- 13W7-3 13.5" Subwoofer
- Power Handling 1000 Watts RMS
- Impedance Dual 1.5 Ohms
- 32mm XMax
- Sealed Enclosure 1.5 Cu Ft -2.25 Cu Ft
- Ported Enclosure 2 Cu Ft -3 Cu Ft
|
$499
$599
$799
$999 |
