Description
|
|
|
|

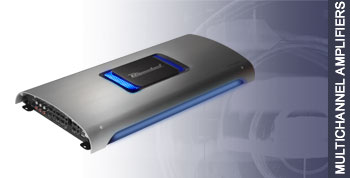

Common Multi-Channel Features:
A502, A404 features
High speed MOSFET switching
power supplies
Complimentary bipolar outputs
Thermal, DC offset, reverse
polarity and short circuit protection
Built-in high performance,
12 dB/octave 2-way active crossovers
Switchable 8 dB bass EQ
function
A802, A1004, D2205 features
ESP® features
Anti-theft protection and
valet mode - renders your amp useless to thieves or parking attendants
Digitally programmed input
voltage for fast, accurate system set-up
Input sensitivity lock-out
mode - lock the tweakers out!
Built-in self-diagnostics
- installer can recall shutdown history, avoids time-consuming service visits
Digital control over cooling
fan operation, turn-on delay
Standard features
High speed MOSFET switching
power supplies
Complimentary bipolar outputs
(hybrid 5 channel model D2205 features high current MOSFET sub channel outputs)
Thermal, DC offset, reverse
polarity and short circuit protection
Built-in blue LED top panel
illumination
External LED/Fan power
jack
Built-in high performance,
variable 12 dB/octave 2-way active crossovers
Switchable 8 dB bass EQ
function
Remote subwoofer level
control function (D2205, A1004)
2 or 4 channel input capability
(A1004)
4 or 6 channel input capability
(D2205)
Expandable architecture
features include buffered stereo full-range RCA output jacks (all models)
and external bridging with an added model D1200 class D mono block amp (D2205
only)
|
A502
2 Channel Amplifier
US Discontinued
|
|
- CEA Certified Specifications
- 2 X 90 Watts RMS @ 4 Ohms,
2 X 125 RMS @ 2 Ohms @ 14.4V , 1% THD + N
- Signal to Noise Ratio 70
dB referenced at 1 watt @ 4 Ohms
- Frequency Response 20Hz
- 20 KHz
- Damping Factor >200
- Input Sensitivity 150 mV
- 7.5 V
- Variable 12 dB/Octave 2
Way Crossover
- RCA Output
- Dimensions 10-3/4" W X
2-1/2" H X 11-3/8" L
- Max Power Output 500 Watts
- Thermal, Short Circuit,
DC Offset Protection
|
A802
2 Channel Amplifier
US Discontinued
|
|
- CEA Certified Specifications
- 2 X 150 Watts RMS @ 4 Ohms,
2 X 200 RMS @ 2 Ohms @ 14.4V , 1% THD + N
- Signal to Noise Ratio 75
dB referenced at 1 watt @ 4 Ohms
- Frequency Response 20Hz
- 20 KHz
- Damping Factor >200
- Input Sensitivity 150 mV
- 7.5 V
- Variable 12 dB/Octave 2
Way Crossover
- Bass EQ 8 dB
- RCA Output
- Dimensions 10-3/4" W X
2-1/2" H X 13" L
- Max Power Output 800 Watts
- Thermal, Short Circuit,
DC Offset, Over Voltage, and Under Voltage Protection
|
|
US Discontinued
|
|
- CEA Certified Specifications
- 4 X 45 Watts RMS @ 4 Ohms,
4 X 50 RMS @ 2 Ohms @ 14.4V , 1% THD + N
- Signal to Noise Ratio 80
dB referenced at 1 watt @ 4 Ohms
- Frequency Response 20Hz
- 20 KHz
- Damping Factor >100
- Input Sensitivity 150 mV
- 7.5 V
- Variable 12 dB/Octave 2
Way Crossover
- Bass EQ 8 dB
- RCA Output
- Dimensions 10-3/4" W X
2-1/2" H X 11-3/8" L
- Max Power Output 400 Watts
- Thermal, Short Circuit,
DC Offset Protection
|

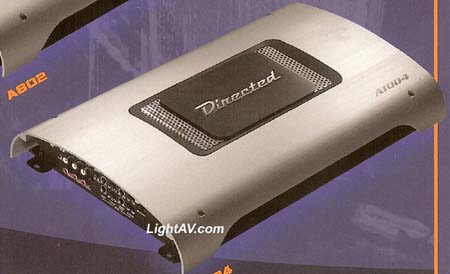

A1004
4 Channel Amplifier
US Discontinued
|
|
- CEA Certified Specifications
- 4 X 85 Watts RMS @ 4 Ohms,
4 X 125 RMS @ 2 Ohms @ 14.4V , 1% THD + N
- Signal to Noise Ratio 81
dB referenced at 1 watt @ 4 Ohms
- Frequency Response 20Hz
- 20 KHz
- Damping Factor >100
- Input Sensitivity 150 mV
- 7.5 V
- Variable 12 dB/Octave 2
Way Crossover
- Bass EQ 8 dB
- RCA Output
- Dimensions 10-3/4" W X
2-1/2" H X 16-7/8" L
- Max Power Output 1000 Watts
- Thermal, Short Circuit,
DC Offset, Over Voltage, and Under Voltage Protection
|

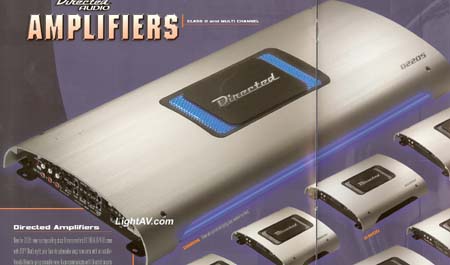

A2205
5 Channel Hybrid Amplifier
US Discontinued
|
|
- CEA Certified Specifications
- 4 X 80 Watts RMS @ 4 Ohms,
4 X 125 RMS @ 2 Ohms @ 14.4V , 1% THD + N (Ch 1-4)
- 1 X 280 Watts RMS @ 4 Ohms,
1 X 600 RMS @ 1Ohm @ 14.4V , 1% THD + N (SUB)
- Signal to Noise Ratio 80
dB referenced at 1 watt @ 4 Ohms Ch 1-4 (50 dB Sub Channel)
- Frequency Response 20Hz
- 20 KHz (Ch1-4)
- Frequency Response 20Hz
- 250 Hz (SUB)
- Damping Factor >200
(Ch1-4)
- Damping Factor >50 (SUB)
- Input Sensitivity 150 mV
- 7.5 V
- Variable 12 dB/Octave 2
Way Crossover, Low Pass only for Sub
- Bass EQ 8 dB
- RCA Output
- Dimensions 10-3/4" W X
2-1/2" H X 25-1/4" L
- Max Power Output 2200 Watts
- Thermal, Short Circuit,
DC Offset, Over Voltage, and Under Voltage Protection
|
|
|

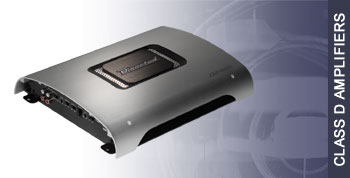

Common class D mono block
features High
speed MOSFET switching power supply
High current, high efficiency
MOSFET outputs
Switchable 8 dB bass EQ
180° phase invert switch
Remote subwoofer level
control function
D600 features 2 ohm stable
Variable 12 dB/octave low-pass
crossover
Full-range RCA outputs
Thermal, DC offset, reverse
polarity and short circuit protection
D800, D1200, D2400 features
1 ohm stable
Externally bridgeable with
built-in gain sync - double the power! (D1200, D2400)
Continuously variable 12
dB/octave low-pass crossover
Switchable 30Hz, 24 dB/octave
subsonic filter (D1200, D2400)
Built-in blue LED top panel
illumination
External LED/Fan power
jack
Thermal, DC offset, reverse
polarity, over and under voltage, and short circuit protection
|
|

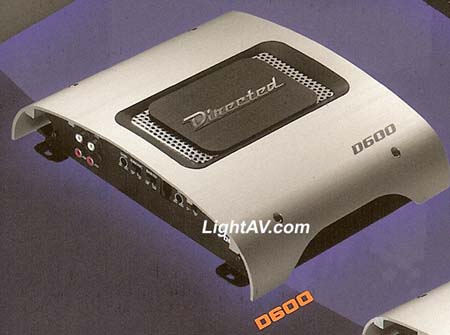

D600
600 Watt RMS
Class D Mono Amplifier
US $74.95
|
|
- CEA Certified Specifications
- 1 X 200 Watts RMS @ 4 Ohms,
1X 300 RMS @ 2 Ohms @ 14.4V , 1% THD + N
- Signal to Noise Ratio 60
dB referenced at 1 watt @ 4 Ohms
- Frequency Response 20Hz
- 20 KHz
- Damping Factor >50
- Input Sensitivity 150 mV
- 7.5 V
- Variable 12 dB/Octave Low
Pass
- Bass EQ 8 dB
- RCA Output
- Dimensions 10-3/4" W X
2-1/2" H X 8-5/8" L
- Max Power Output 600 Watts
- Thermal, Short Circuit,
DC Offset, Over Voltage, and Under Voltage Protection
|

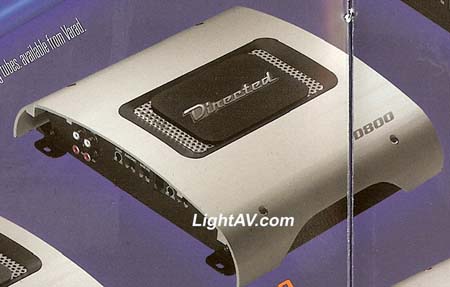

D800
800 Watt RMS Class D Mono
Amplifier
US $109.95
1 Left 2/28/08
|
|
- CEA Certified Specifications
- 1 X 200 Watts RMS @ 4 Ohms,
1X 400 RMS @ 1 Ohms @ 14.4V , 1% THD + N
- Signal to Noise Ratio 60
dB referenced at 1 watt @ 4 Ohms
- Frequency Response 20Hz
- 20 KHz
- Damping Factor >50
- Input Sensitivity 150 mV
- 7.5 V
- Variable 12 dB/Octave Low
Pass
- Bass EQ 8 dB
- RCA Output
- Dimensions 10-3/4" W X
2-1/2" H X 9-1/2" L
- Max Power Output 800 Watts
- Thermal, Short Circuit,
DC Offset, Over Voltage, and Under Voltage Protection
|
D1200
1200 Watt RMS Class D Mono
Amplifier
US $144.95
1 Left 2/28/08
|
|
- CEA Certified Specifications
- 1 X 300 Watts RMS @ 4 Ohms,
1X 600 RMS @ 1 Ohms @ 14.4V , 1% THD + N
- Signal to Noise Ratio 60
dB referenced at 1 watt @ 4 Ohms
- Frequency Response 20Hz
- 20 KHz
- Damping Factor >50
- Input Sensitivity 150 mV
- 7.5 V
- Variable 12 dB/Octave Low
Pass
- Bass EQ 8 dB
- RCA Output
- Dimensions 10-3/4" W X
2-1/2" H X 12-5/8" L
- Max Power Output 1200 Watts
- Thermal, Short Circuit,
DC Offset, Over Voltage, and Under Voltage Protection
|

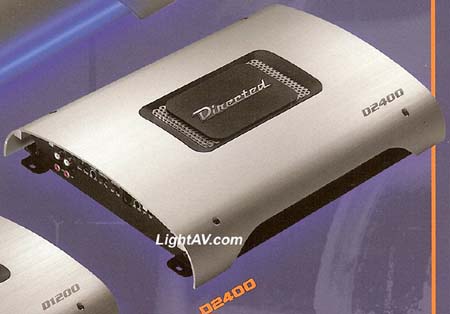

D2400
2400 Watt RMS Class D Mono
Amplifier
US Discontinued
|
|
- CEA Certified Specifications
- 1 X 400 Watts RMS @ 4 Ohms,
1X 1200 RMS @ 2 Ohms @ 14.4V , 1% THD + N
- Signal to Noise Ratio 60
dB referenced at 1 watt @ 4 Ohms
- Frequency Response 20Hz
- 20 KHz
- Damping Factor >50
- Input Sensitivity 150 mV
- 7.5 V
- Variable 12 dB/Octave Low
Pass
- Bass EQ 8 dB
- RCA Output
- Dimensions 10-3/4" W X
2-1/2" H X 14-1/4" L
- Max Power Output 2400 Watts
- Thermal, Short Circuit,
DC Offset, Over Voltage, and Under Voltage Protection
|
