LightAV.com
Price
|
Product Shot
Click for larger
|
Description
|
Retail
Price
|

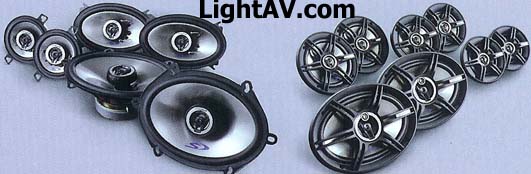

Type S
Coaxials
SPS-080A
SPS-100A
SPS-460A
SPS-130A
SPS-170A
SPS-570A
SPS-690A
US $Call
|
|
Aluminum
coated poly cone
Lightweight Air-injected
rubber surround
Strontium ferrite magnet
Balanced dome tweeter
Neodynium tweeter magnet
(SPS-690A) SPS-080A
3.5" 2 Way
Frequency Response 75 Hz-30KHz
Power Handling 15 Watts
RMS ; 75 Watts Peak
SPS-100A 4" 2 Way
Frequency Response 50 Hz-30KHz
Power Handling 25 Watts
RMS ; 125 Watts Peak
Nomex Spider
SPS-460A 4X6" 2 Way
Frequency Response 50Hz-30KHz
Power Handling 25 Watts
RMS ; 125 Watts Peak
Nomex Spider
SPS-130A 5.25" 2 Way
Frequency Response 45 Hz-30KHz
Power Handling 30 Watts
RMS ; 150 Watts Peak
Nomex Spider
Swivel Tweeter
SPS-170A 6.5" 2 Way
Frequency Response 35 Hz-30KHz
Power Handling 40 Watts
RMS ; 200 Watts Peak
Nomex Spider
Swivel Tweeter
SPS-570A 5X7" 2 Way
Frequency Response 35 Hz-30KHz
Power Handling 40 Watts
RMS ; 200 Watts Peak
Nomex Spider
Swivel Tweeter
SPS-690A 6X9" 2 Way
Frequency Response 30 Hz-30KHz
Power Handling 50 Watts
RMS ; 250 Watts Peak
Nomex Spider
Swivel Tweeter
|
$ |
New for 2004!
Type S
Component Sets
SPS-171A
SPS-571A
US $Call
|
|
Multi-Layer
Cone
Wave Guide
Linear drive magnet
1" Soft dome tweeter
External crossover with tweeter
protection
Custom fit spacer
OEM Adapter
Lightweight Air-injected
rubber surround
Strontium ferrite magnet
Balanced dome tweeter
Neodynium tweeter magnet
SPS-171A 6.5" 2 Way
Component Set
Frequency Response 75 Hz-30KHz
Power Handling 15 Watts
RMS ; 75 Watts Peak
SPS-571A 5X7" 2 Way Component
Set
Frequency Response 50 Hz-30KHz
Power Handling 25 Watts
RMS ; 125 Watts Peak
Nomex Spider
|
$ |
Type R
Coaxials
SPR-134A
SPR-174A
SPR-574A
SPR-694A
US $Call
|
|
1" Soft
Dome tweeter with 15 degrees swivel capability (SPR-134A 3/4")
In-Line 12dB High Pass crossover
with tweeter protection
Aluminum coated poly cone
Cast Aluminum Frame
SPR-134A 5.25" 2 Way
Frequency Response 53 Hz-30KHz
Power Handling 35 Watts
RMS ; 140 Watts Peak
SPR-174A 6.5" 2 Way
Frequency Response 45 Hz-30KHz
Power Handling 40 Watts
RMS ; 160 Watts Peak
SPR-574A 5X7" 2 Way
Frequency Response 50Hz-30KHz
Power Handling 40 Watts
RMS ; 140 Watts Peak

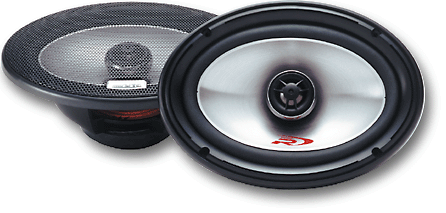

SPR-694A 6X9" 2 Way
Frequency Response 35 Hz-30KHz
Power Handling 50 Watts
RMS ; 200 Watts Peak
|
$ |
Type R
Component Sets

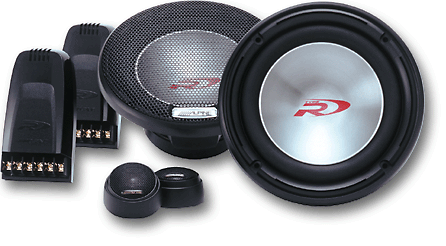

SPR-136A
SPR-176A
US $Call
|
|
1" Soft Dome tweeter
External 12dB HP/6dB LP crossover
with tweeter protection and lvl adjustment
Aluminum coated poly cone
Cast Aluminum Frame
Extra large woofer magnet
with vented pole piece
Swivel-Flush/Swivel-Surface
tweeter mounting SPR-136A
5.25" 2 Way Component Set
Frequency Response 50 Hz-30KHz
Power Handling 40 Watts
RMS ; 160 Watts Peak
SPR-174A 6.5" 2 Way Component
Set
Frequency Response 40 Hz-30KHz
Power Handling 50 Watts
RMS ; 200 Watts Peak
|
$ |

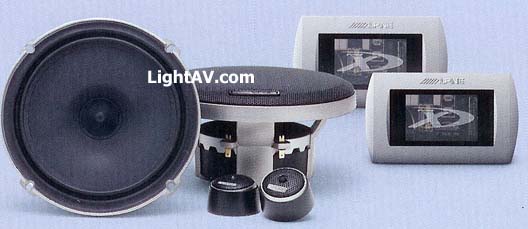

Type X
Component Sets
SPX-107A
SPX-137A
SPX-177A
US $Call
|
|
WOOFER
Wood Fiber cone and phase
integrated dustcap
Non-Resonant suspension coupling
(NRSC) with reinforced edge
Low Resonance Multi-Roll
surround(LRMS)
Braided Low-DCR tinsel leads
Custom Cast aluminum Frame
Integrated spider landing
& Vented Heat tranfer plate
FEA Optimized motor structure
with CRC/T-Drive geometry
Airflow Optimized dual-flare
pole vent
High Quality synthetic black
spider
4 layer copper clad aluminum
voice coil with fiberglass bobbin
High grade stontium ferrite
magnet
Gold plated terminals
Snap fit mounting system
Semi-Flush Grille
TWEETER
32mm Ring radiator diaphram
with waveguide
19mm voice coil, copper clad
aluminum on aluminum bobbin
Periphery venting system
into cast aluminum tuned chamber with integrated heatsink
Twist lock installation system
with compact swivel system
Low distortion motor structure
with high grade neodymium
CROSSOVER
Phase coherant design
Integrated Level/Axis adjustment
Tweeter protection
Bi-Amp/Bi-Wire compatible
3-Way/Dual midbass ready
Ultra high grade passive
components (Metallized poly capacitors,heavy guage air-core inductors, low
tolerance heatsink resistors,OFC circuit board traces,)
Gold plated terminals and
connection jumpers
SPX-107A 4" 2 Way
2 Way Component Set
Frequency Response 45 Hz-30KHz
Power Handling 40 Watts
RMS ; 160 Watts Peak
SPX-137A 5.25" 2 Way Component
Set
Frequency Response 40 Hz-30KHz
Power Handling 60 Watts
RMS ; 240 Watts Peak
SPX-177A 6.5" 2 Way Component
Set
Frequency Response 35Hz-30KHz
Power Handling 75 Watts
RMS ; 300 Watts Peak
|
$ |
<
>
